Level One LevelOne WL-AP WAP-8121 750Mbps PoE Deckenhalterung

LEVEL ONE

WAP-8121

Jauns

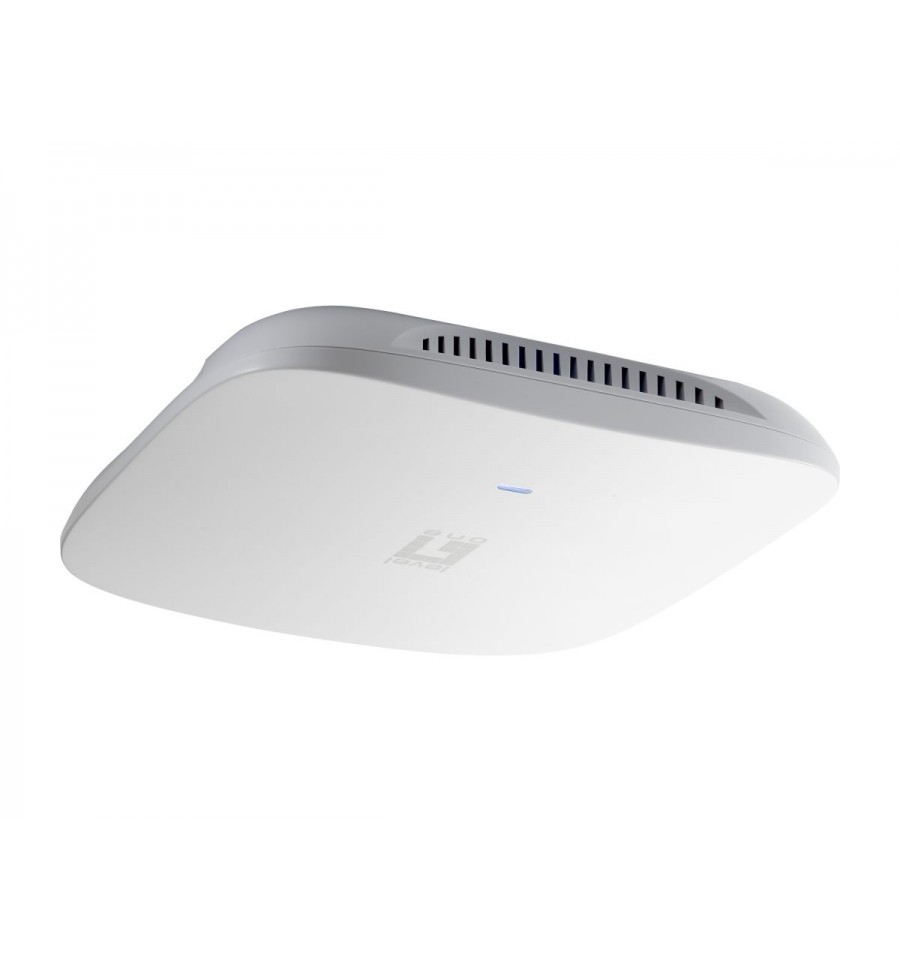

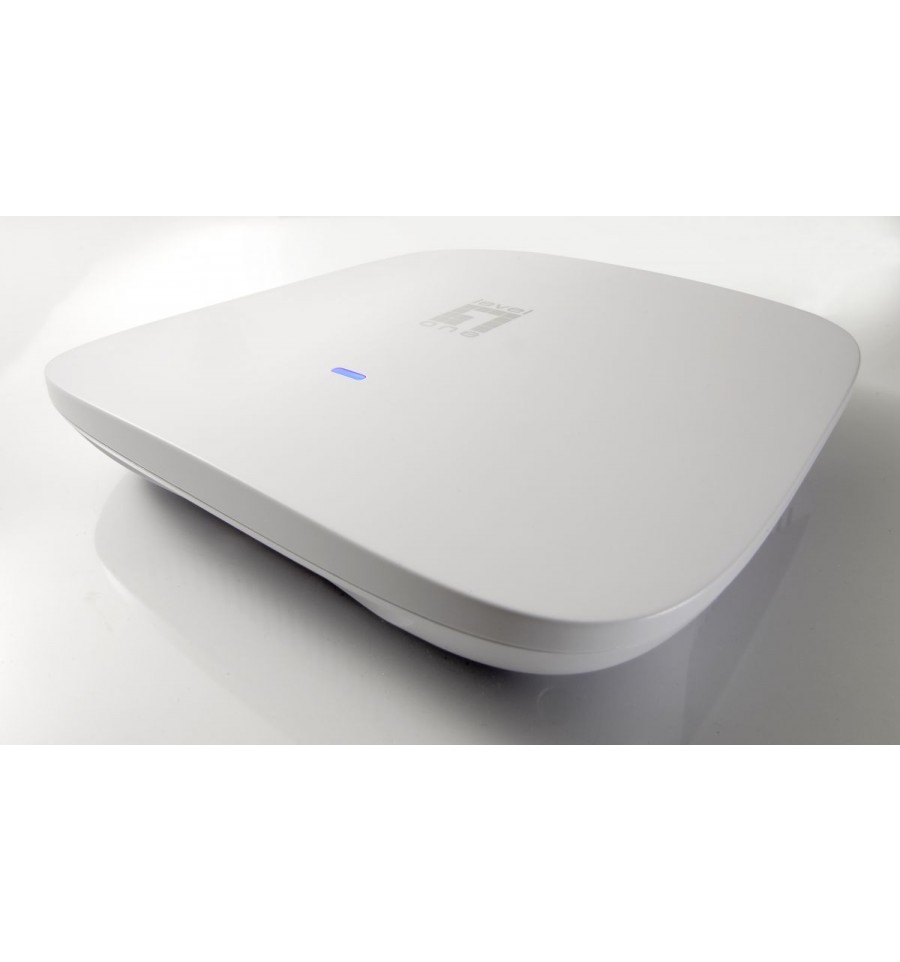

WAP-8121 AC750 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

Model Number
WAP-8121
SKU
54620507
  • Share your wireless network up to 750Mbps
  • Compatible with IEEE 802.11a/b/g/n/ac wireless standards
  • Provides up to 8 SSIDs to separate network traffic and enhance security
  • Multi-operation modes to suit different wireless applications
  • Auto Channel Selection for low interference band
  • Dual power support: 12V DC/PoE (IEEE 802.3at)
LevelOne’s WAP-8121 is a managed, dual-band wireless access point, capable of a combined speed of up to 750 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAP-8121 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.
Other
Approval and complianceCE, RoHS
Operating humidity10% RH ~ 90% RH
Operating temperature-20°C ~ 50°C
Storage humidity5% RH ~ 90% RH
Storage temperature-40°C ~ 70°C
System specifications
Antenna1 x 5GHz 5dBi internal Omni antennas 2 x 2.4GHz 5dBi internal Omni antennas
EIRP (dBm)<20 dBm
EncryptionWEP 64/128-bit Web share key encryption WPA, WPA2 128-bit TKIP/AES encryption WPA, WPA2-PSK TKIP/AES encryption
Frequency band2.4 ~ 2.4835 GHz 5.15 ~ 5.35 GHz 5.46 ~ 5.72 GHz 5.725~ 5.825 GHz
IndicatorsPower
WiFi
RAM size128MB (DDR2)
Flash memory size16MB
MountCeiling mount
Operating modesGateway Mode, Repeater Mode, AP Mode, WISP Mode
Power supplyPower adapter (ordered separately)
StandardsIEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.11e Wi-Fi Multimedia (WMM)
IEEE 802.3x Ethernet Flow Control
IEEE 802.11i Wi-Fi Protected Access (WPA2)
IEEE 802.11a,IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
IEEE802.3at Power over Ethernet is recommended
Wireless channels2.4GHz: Ch.1 ~ 13 EU Ch.1 ~ 11 USA 5GHz: Ch.36 ~ 48 EU Ch.36 ~ 48 , 149 ~ 161 USA
Features
FeaturesMulti-SSID: 8 SSIDs (2.4GHz x 4 SSIDs + 5.8GHz x 4 SSIDs)
Physical Specifications
Product weight (kg)0.326
Default
ColorWhite
EAN4015867199190
Model NumberWAP-8121

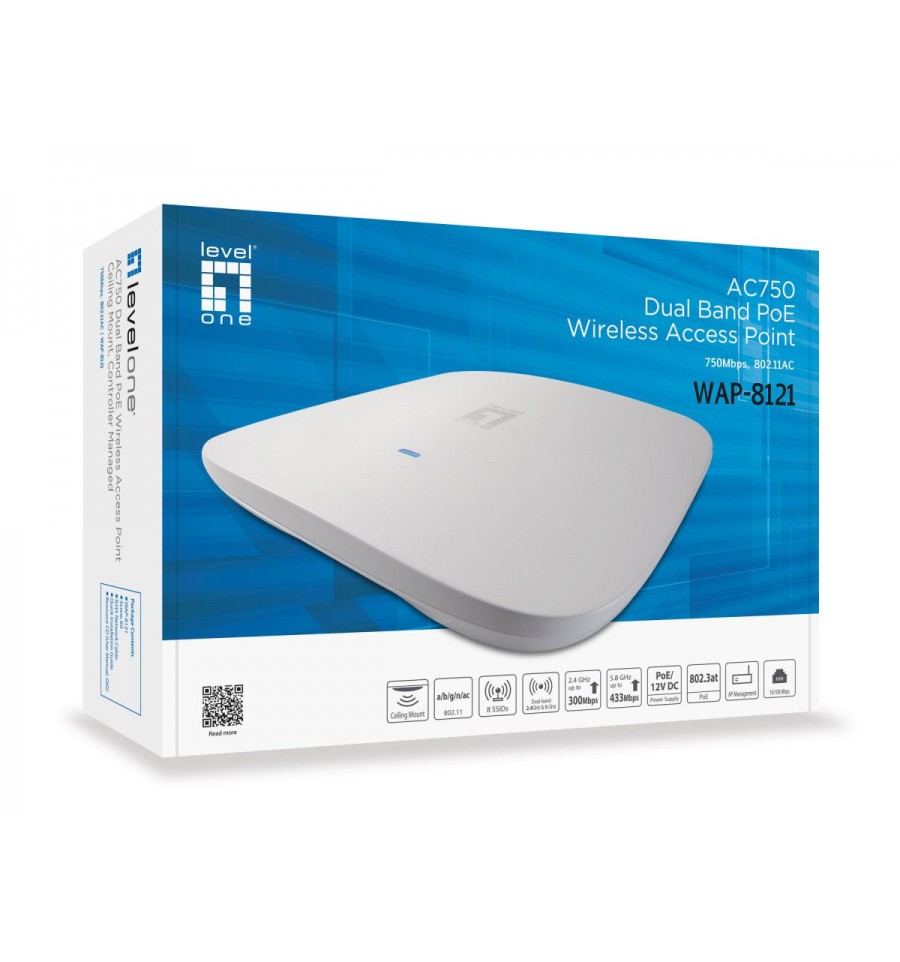

Package contentsWAP-8121,
Screw Kit,
RJ45 Network Cable,
Quick Installation Guide,
Resource CD (User Manual, QIG)
Port Configuration
Fast Ethernet RJ452
802.3af/at PoE1
Performance
Receiver sensitivity2.4GHz:
802.11n (20MHZ): Range (-70) dBm
802.11n (40MHZ): Range (-68 ) dBm
802.11g: Range (-72) dBm
802.11b: Range (-95) dBm

5GHz:
802.11ac (80MHZ): Range (-62) dBm
802.11ac (40MHZ): Range (-65) dBm
802.11ac (20MHZ): Range (-68) dBm
802.11n (40MHZ): Range (-68 ) dBm
802.11n (20MHZ): Range (-70) dBm
802.11a: Range (-72) dBm
Filter
Frequency band2.4/5GHz(Dual bands)
Max. Wi-Fi Data Rate750Mbps
Wireless AP TypeCeiling
PoE SupportedYes
Akeneo
Power consumption15W
