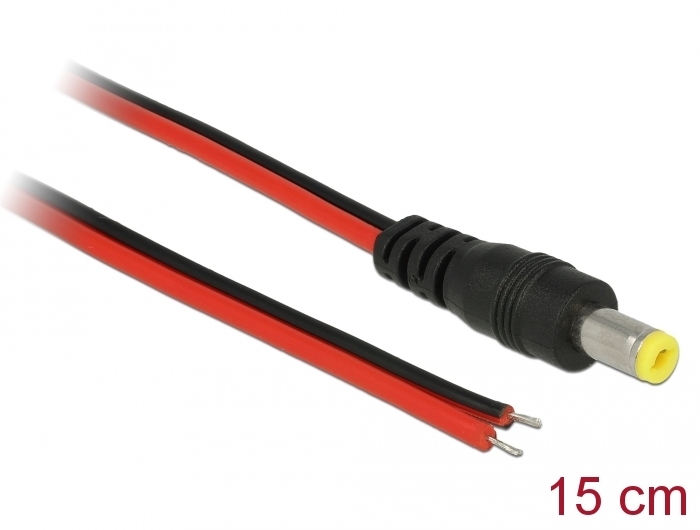

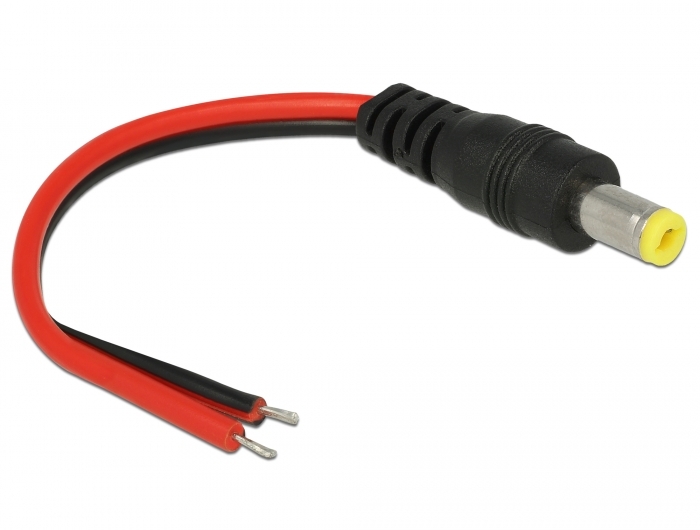

Delock Cable DC 5.5 x 2.1 mm male to open wire ends 15 cm

Kods 85739

Condition: Jauns

Vairāk informācijas

This terminal block cable by Delock can be used to connect bare wires. Thus the cable is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling. Various devices with a suitable DC power connector can be connected to the cable and are supplied with power individually (depending on the requirements of the device).

System requirements:
• A free DC female port 5.5 x 2.1 x 9.5 mm

Specification:
• Connectors:
1 x DC 5.5 x 2.1 mm male >
2 x open wires
• Positive pole inside, negative pole outside
• Voltage: max. 12 ~ 36 V
• Current: max. 5 A
• Cable gauge: 23 AWG
• DC pin length: ca. 9.5 mm
• Length without connectors: ca. 15 cm

Package content:
• Cable

Data sheet:
http://www.delock.de/produkt/85739/pdf.html?sprache=en
