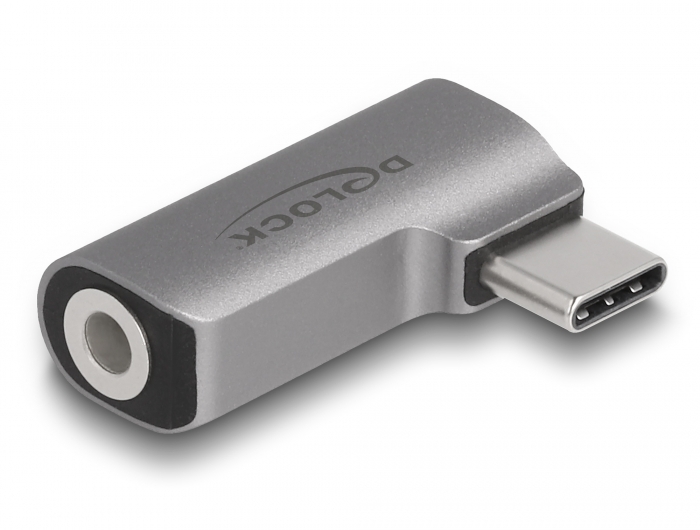

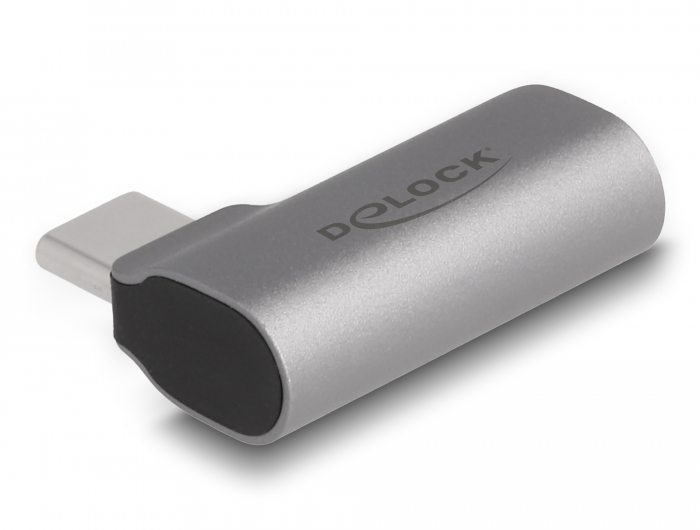

Delock Audio Adapter USB Type-C™ male to 3.5 mm 4 pin stereo jack female

DELOCK

64192

Jauns

This audio adapter by Delock enables the connection of a device or headset with a 3.5 mm 4 pin stereo jack male connector e.g. to a mobile phone with USB Type-C™ port.

Chipset ALC4042
The ALC4042 chipset supports high-resolution audio with superior headphone performance and features extremely low distortion and tuning options to significantly improve the performance of the connected converters.
System requirements:
• Android 11.0 or above
• Chrome OS 91.0 or above
• Linux Kernel 5.11 or above
• Mac OS 11.2.3 or above
• Windows 10/10-64/11
• Device with a free USB Type-C™ port
• Earphones or speaker with 3.5 mm stereo jack
Specification:
• Connectors:
  1 x USB Type-C™ male
  1 x 3.5 mm 4 pin stereo jack female
• Chipset: ALC4042
• Signal-to-noise ratio (SNR):
  audio output: ca. 100 dB
  microphone input: ca. 94 dB
• DAC Sample rate: up to 32 Bit / 384 kHz
• ADC Sample rate: up to 16 Bit / 48 kHz
• Supports Digital Hi-Res Audio
• USB bus powered
• Plug & Play
• Dimensions (LxWxH): ca. 29 x 22 x 9 mm
• Colour: grey
Package content:
• Audio adapter
Data sheet:
http://www.delock.de/produkt/64192/pdf.html?sprache=en
