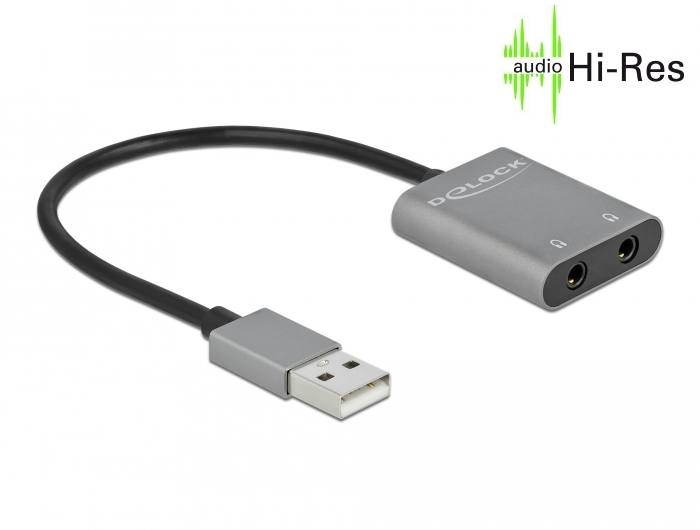

Delock Audio Splitter USB Type-A to 2 x stereo jack female metal

DELOCK

66562

Jauns

This Audio Splitter by Delock allows the connection of two audio output devices, such as headphones or speakers, to a device with a USB Type-A socket. The audio signal is transmitted in stereo to both output devices, e.g. two people can listen to the same music at the same time.

Digital Hi-Res Audio
Thanks to the integrated chipset, the audio signals are transmitted in crystal-clear Hi-Res sound quality.
System requirements:
• Linux Kernel 4.3 or above
• Windows 10/10-64
• Device with a free USB Type-A female port
Specification:
• Connectors:
  1 x USB Type-A male >
  2 x 3.5 mm 4 pin stereo jack female
• Chipset: Realtek ALC4042
• USB 2.0 specification
• USB Audio Device Class 1.0 / 2.0 specification
• Supports Digital Hi-Res Audio
• Signal-to-noise ratio (SNR): ca. 98 dB
• Frequency range: 20 Hz - 40 kHz
• Supported sample rates: 16 / 24 / 32 Bit, 44.1 / 48 / 96 / 192 / 384 kHz
  (depending on the system and the connected hardware)
• Housing material: aluminium
• Contacts gold-plated
• Colour: black / silver-grey
• Dimensions (LxWxH): ca. 36 x 30 x 9 mm
• Cable length without connectors: ca. 15 cm
• Plug & Play
Package content:
• Audio adapter
Data sheet:
http://www.delock.de/produkt/66562/pdf.html?sprache=en
