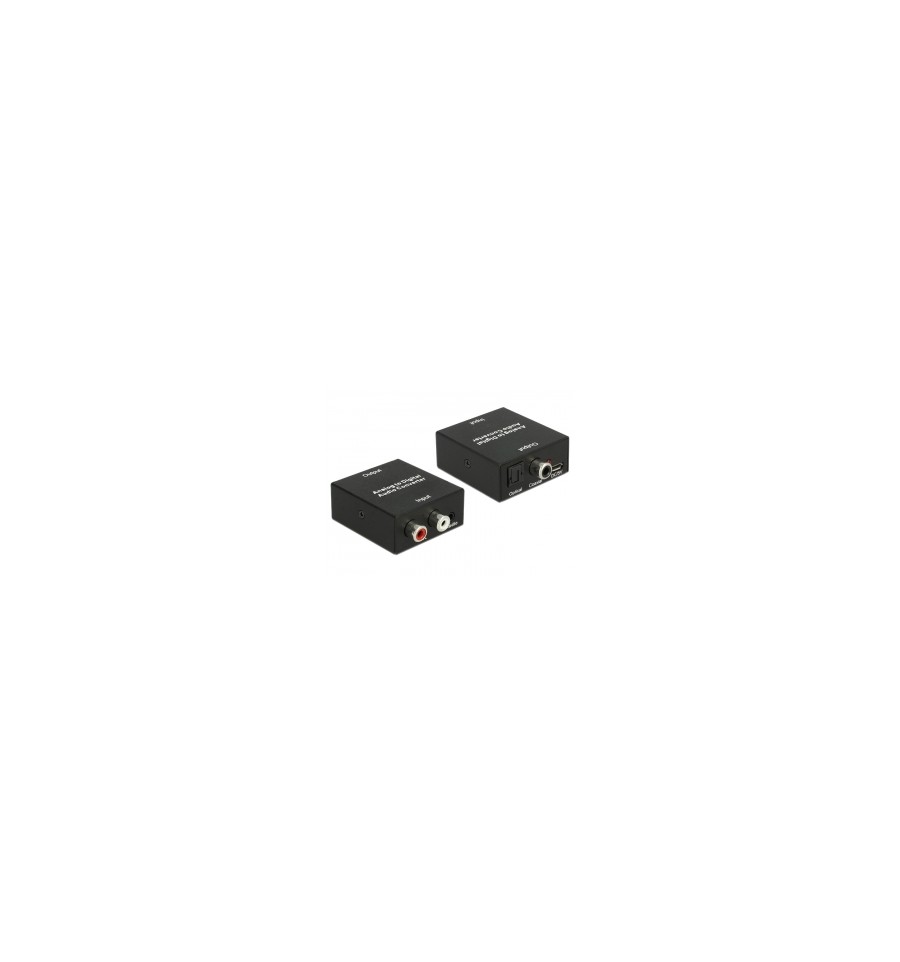

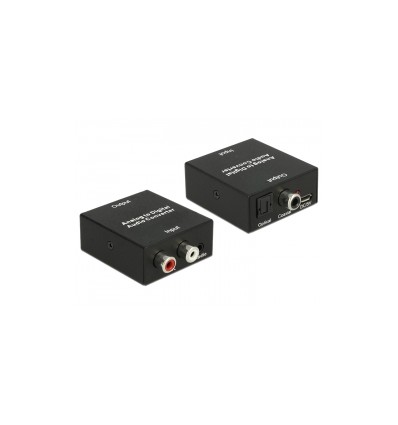

Delock Audio Converter Analogue with 3.5 mm Stereo Jack female - Digital with USB power supply

DELOCK

62724

Jauns

Description

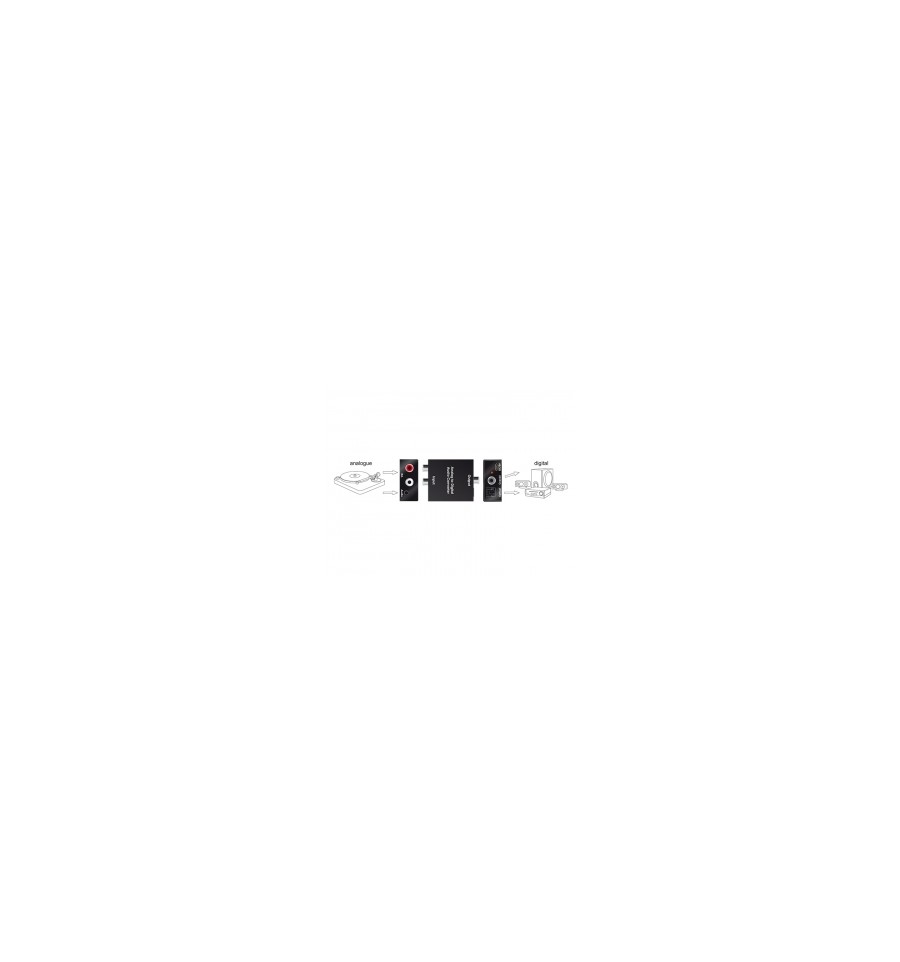

The Delock audio converter converts the analogue stereo signal into a digital signal. At the input port of the device can be connected two RCA cables to feed in the analogue source signal e. g. from a record player. At the output port the signal will be transmitted through a Toslink or coaxial connection.


More details

Description
The Delock audio converter converts the analogue stereo signal into a digital signal. At the input port of the device can be connected two RCA cables to feed in the analogue source signal e. g. from a record player. At the output port the signal will be transmitted through a Toslink or coaxial connection.

Specification
• Connector:
  Input:
    2 x RCA female (red, white)
    1 x 3.5 mm 3 pin stereo jack female
  Output:
    1 x Toslink female S/PDIF
    1 x Coaxial female S/PDIF
    1 x USB Type Micro-B female (5 V power supply)
• Supports different audio rates, e. g. 32, 44.1, 48 and 96 KHz
• Bit rate 24 Bit
• 1 x LED for power
• Current consumption: max. 250 mA
• Dimensions (LxWxH): ca. 63 x 45 x 20 mm

System requirements
• Analogue audio signal
• Connection cables

Package content
• Converter analogue > digital
• USB Type Micro-B to Type-A cable, length ca. 80 cm
• User manual

Package
• White Box
