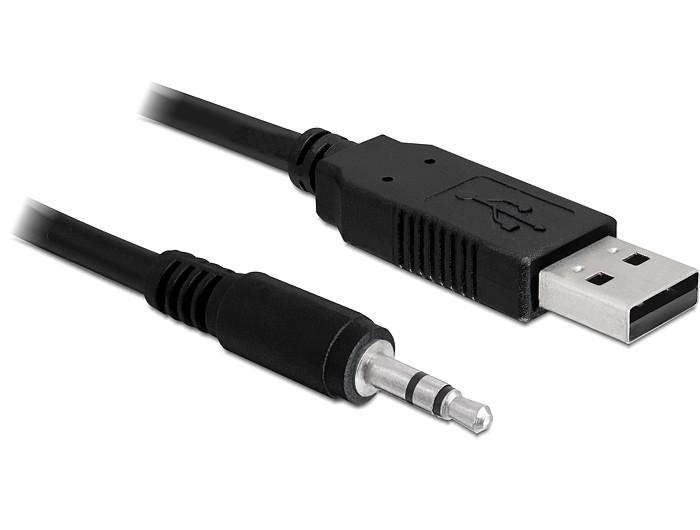

Delock Converter USB 2.0 male Serial-TTL 3.5 mm stereo jack 1.8 m (3.3 V)

Description:
This USB 2.0 Serial-TTL converter by Delock is due to its wide temperature range most suitable for industrial applications. It can be used for e.g. level converter, GPS-modules, interface controller, micro controller etc.

Specification:
• Connector: USB 2.0 Serial-TTL male > 3.5 mm stereo jack (1. GND, 2. RXD, 3. TXD)
• Chipset: FTDI 232RL
• Cable gauge: 24 AWG
• Temperature range: -20°C to +80°C
• No-load current: 70 uA
• Converter: 5 V / 15 mA (VCC, GND)
• Compatible to UHCI / OHCI / EHCI controller
• LVTTL 3.3 V (data) / 4 mA or HighLevel 12 mA
• Data rate 300 baud - 3 Megabaud
• Databit: 7 or 8
• Stoppbits: 1 or 2
• Parity: none, space character, straight, unequal, mark
• Flow control: software XON/XOFF or hardware RTS/CTS
• FIFO: 128 Byte â RX
256 Byte â TX
• Cable length: ca. 1.80 m

System requirements:
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8-64, Windows CE 4.2, 5.0, 6.0,
Mac OS 10.5, 10.6, Linux Kernel 2.6
• PC or laptop with a free USB type A port

Package content:
• Converter USB 2.0 Serial-TTL
• Driver CD
• User manual
