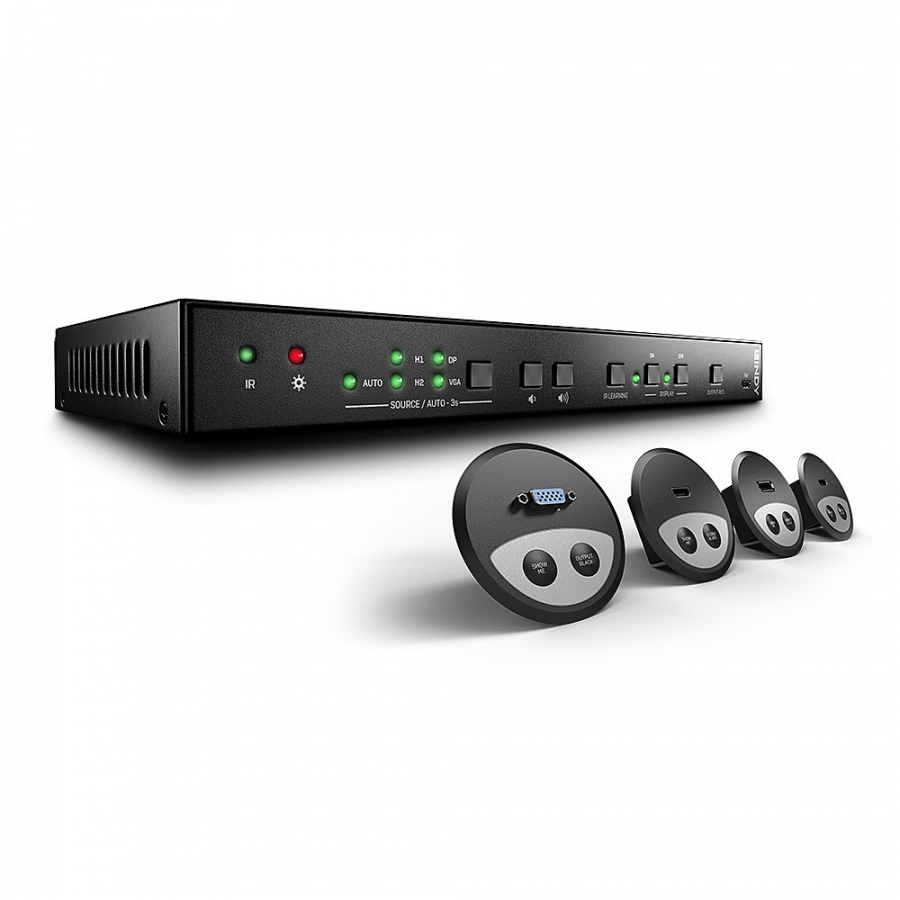

Lindy Switching Presentation Scaler with Table Grommet Kit

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.4
• Supports Bandwidth: 10.2Gbps
• Maximum Resolution:
  • HDMI: 3840x2160@60Hz 4:2:0 8bit
  • VGA: 1920x1200@60Hz
• HDCP Support: 2.2
• Supported Audio:
  • HDMI Audio Pass-through
  • Stereo Analogue
• Separate Audio Ports: Analogue Audio (3-pin)
• IR Support: 38kHz
• CEC Support: Pass-through
• Serial Interface: RS232 (3-pin)
• Special Features:
  • EDID Management
  • Auto-Sensing



Connectors

• Input: 2 x HDMI Type A (Female), DisplayPort (Female), VGA (Female), 3.5mm (Female)
• Output: HDMI Type A (Female)
• Control: 3.5mm (Female), RS232 (3-pin), Table Grommet Kit (2 x HDMI Type A1 x DisplayPort, 1 x VGA)
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 230x23.6x100mm (9.06x0.93x3.94in)
• Housing Material: Metal
• Net Weight: 1.177kg (2.59lb)
• Operating Temperature: -10°C - 40°C (14°F - 104°F)
• Storage Temperature: -15°C - 55°C (5°F - 131°F)
• Humidity: 10-90% RH (non-condensing)
• Power Requirements: 12V 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 418x82x253mm (16.46x3.23x9.96in)
• Gross Weight: 1.594kg (3.51lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• Switching Presentation Scaler
• Multi Country Power Supply (UK, EU, US & AUS Adapters)
• 2 x Mounting Brackets with 4 x Screws
• 4 x Plastic Cushions
• 10 x 3-pin Phoenix Connectors
• 1 x IR Transmitter Cable
• 2 x HDMI Table Grommets
• 1 x DisplayPort Table Grommet
• 1 x VGA Table Grommet
• 16 x Mounting Screws for Table Grommets
• Lindy Manual

Purchasing Information

• No.: 38282
• EAN: 4002888382823
