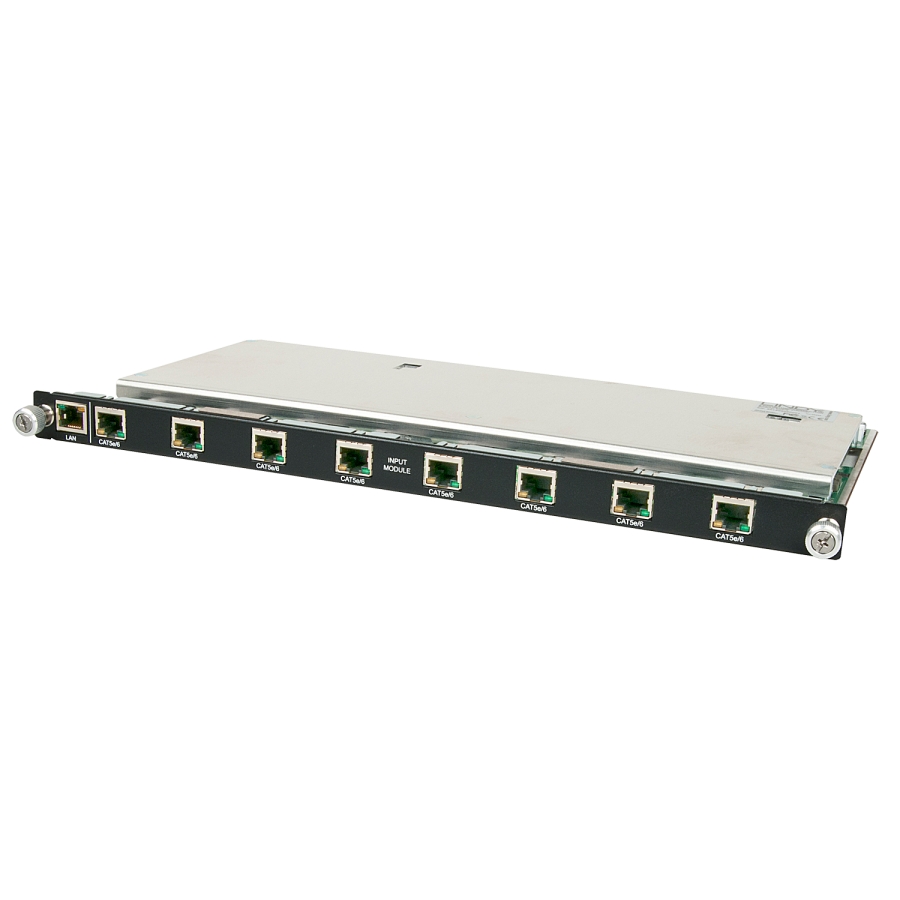

Lindy 8 Port HDBaseT Extender Input Modular Board

Specifications

• AV Interface: HDBaseT
• Interface Standards: HDBaseT 1.0
• Supported Bandwidth: 10.2 Gbps
• Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
• EDID Pass Through: -
• HDCP Support: 1.4
• Supported Audio: Audio Pass-through
• Separate Audio Ports: -
• IR Support: 30 - 50kHz

• CEC Support: -

• Serial Interface: -
• Special Features: -

Connectors

• Input: 8 x RJ45 (Female)
• Output: -
• Control: 8 x RJ45 (Female)
• Power: -

Physical Properties

• Dimensions WxDxH: 360x230x22mm (14.17x9.06x0.87in)
• Housing Material: Metal
• Net Weight: 0.79kg (1.74lb)
• Operating Temperature: 0°C - 80°C (32°F - 176°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: -
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 395x250x45mm (15.55x9.84x1.77in)
• Gross Weight: 1.03kg (2.27lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• 8 Port HDBaseT Input Board

Purchasing Information

• No.: 38258
• EAN: 4002888382588
