Delock Adapter DDR3 Dual SATA 6Gbs RAID Module - 2 x M.2 NGFF

Kods 62622

Condition: Jauns

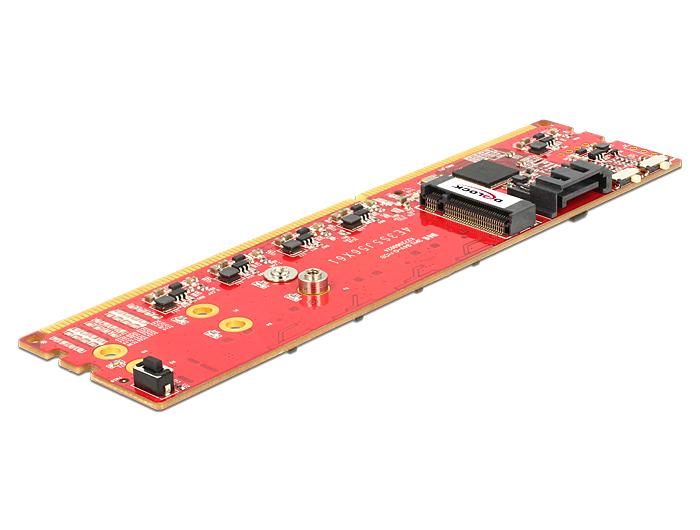

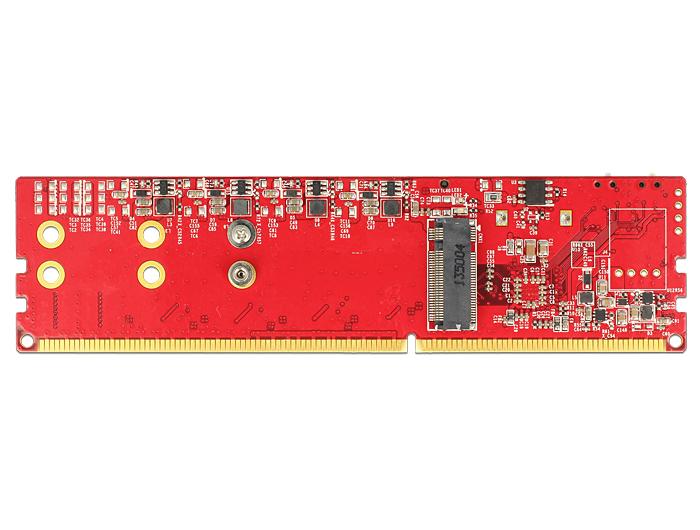

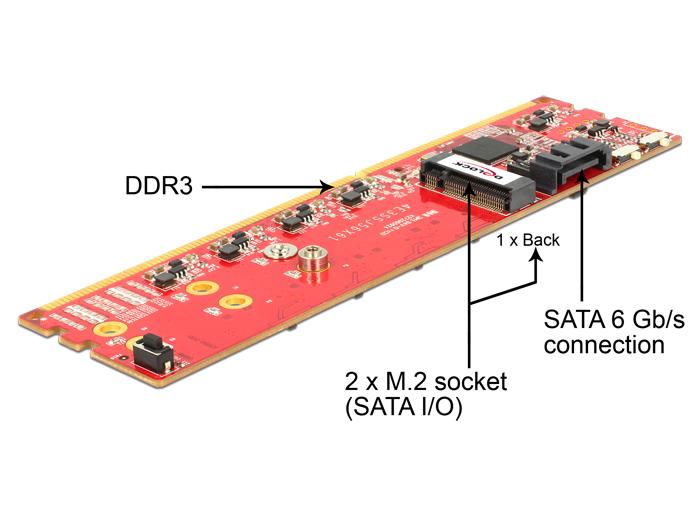

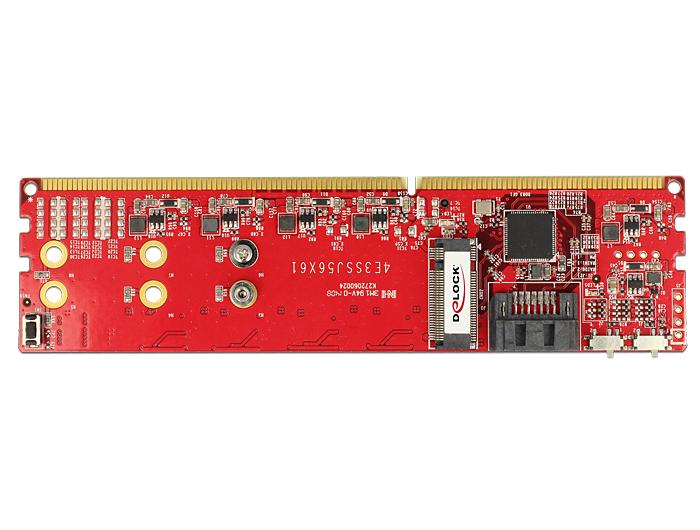

This Dual SATA RAID module offers the possibility to connect two M.2 NGFF Memory flash modules (with SATA I/O) via a free DDR3 slot to work as HDD. Here you have the option to operate with mirror function (RAID1) or with the total storage volume (RAID0). Both M.2 slots must be connected for the operation. The data shall transmitted over the SATA 6 Gb /s cable which must be connected. ...

More details

Vairāk informācijas

Description:

This Dual SATA RAID module offers the possibility to connect two M.2 NGFF

Memory flash modules (with SATA I/O) via a free DDR3 slot to work as HDD.
Here you have the option to operate with mirror function (RAID1) or with the

total storage volume (RAID0). Both M.2 slots must be connected for the operation.

The data shall transmitted over the SATA 6 Gb /s cable which must be connected.
The power is supplied via the DDR3 connection.

Specification:
Form-Factor: DDR3 240pin

Interface
Input: SATA 6 Gb/s
Output: SATA 6 Gb/s

Connector
Output: 2 x M.2-B 2242/2260/2280

Chipset: JMS562
Max TDP: 9W (6A x 1,5V)

Temperature
Operation: STD: 0Â°C - +70Â°C
Storage: -55Â°C - +95Â°C

Vibration: 5G @7-2000Hz
Shock: 50G @ 0,5ms
Dimensions (WxLXH): 133,3 x 35,0 x 13,2mm
Weight: 22g

RAID Mode Setting
J1:J2
RAID 0: 2:2, RAID 1: 1:2, PM: 1:1

System requirements:
A free DRR3 slot and one SATA 6 Gb/s connector.

Package content:
Dual SATA 6 Gb/s RAID module
