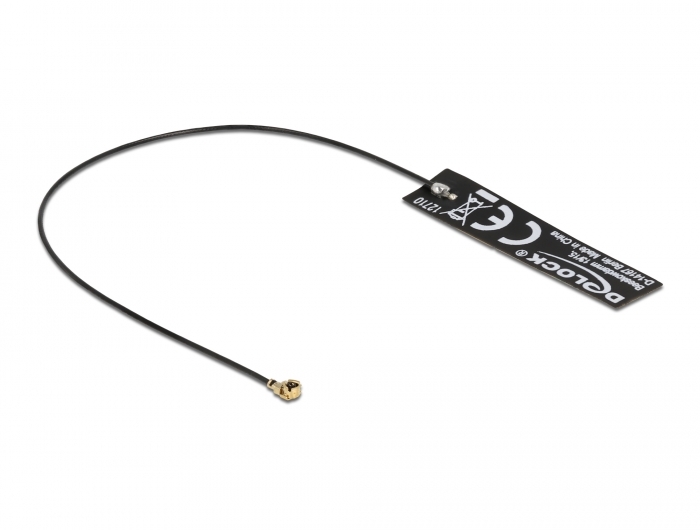

Delock GNSS BEIDOU GALILEO GLONAS GPS L1 L2 L5 Antenna MHF® I compatible plug 0 - 2 dBi omnidirectional FPC

DELOCK

12710

Jauns

This antenna by Delock receives signals from BEIDOU, GALILEO, GLONASS and GPS satellites simultaneously on GNSS devices.
System requirements:
• Device with one free MHF® I port
Specification:
• Connector: 1 x MHF® I compatible plug
• Frequency range: 1176 MHz 1227 MHz 1575 MHz 1602 MHz
• Antenna gain: 0 - 2 dBi
• VSWR: 2.0
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Mounting type: self-adhesive
• Operating temperature: -40 °C ~ 85 °C
• Housing material: FPC
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 39.0 x 6.5 x 0.2 mm

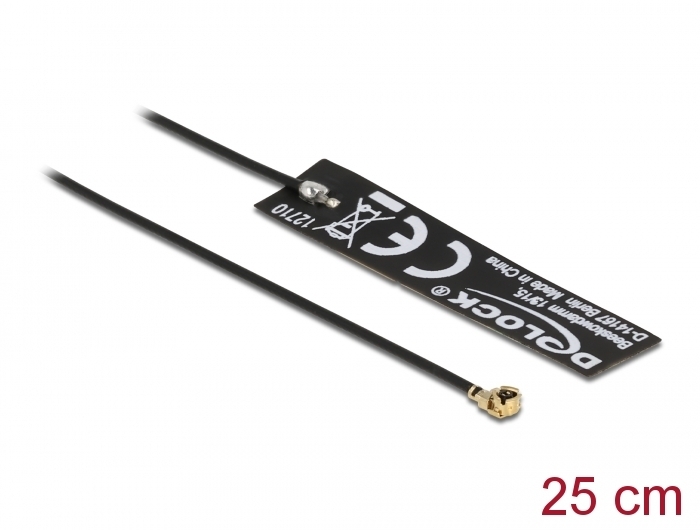

• Length incl. connectors (L): ca. 25 cm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12710/pdf.html?sprache=en
