Delock TETRA 430 - 470 MHz Antenna MHF plug 0 dBi 1.13 15 cm black self adhesive

Delock TETRA 430 - 470 MHz Antenna MHF plug 0 dBi 1.13 15 cm black self adhesive

DELOCK

12539

Jauns

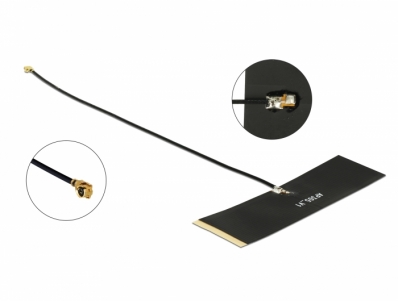

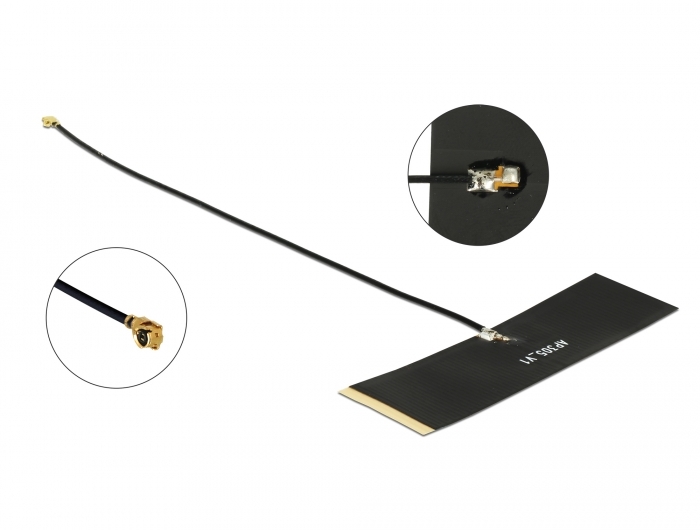

This antenna by Delock allows the usage of the TETRA 430 - 470 MHz band indoors.
System requirements:
• Device with one free MHF port
Specification:
• Connector: 1 x MHF plug
• Frequency range: 430 - 470 MHz
• ISM, TETRA
• Antenna gain: 0 dBi
• Impedance: 50 Ohm
• VSWR: 4.0
• Polarisation: linear, vertical
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 2.5 dB @ 2400 MHz per meter
• Smallest bending radius: 4.5 mm
• Length incl. connectors (L): ca. 15 cm
• Dimensions (LxW): ca. 67.5 x 20 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12539/pdf.html?sprache=en
