Description

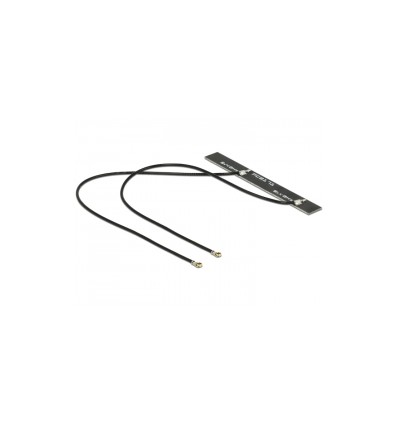

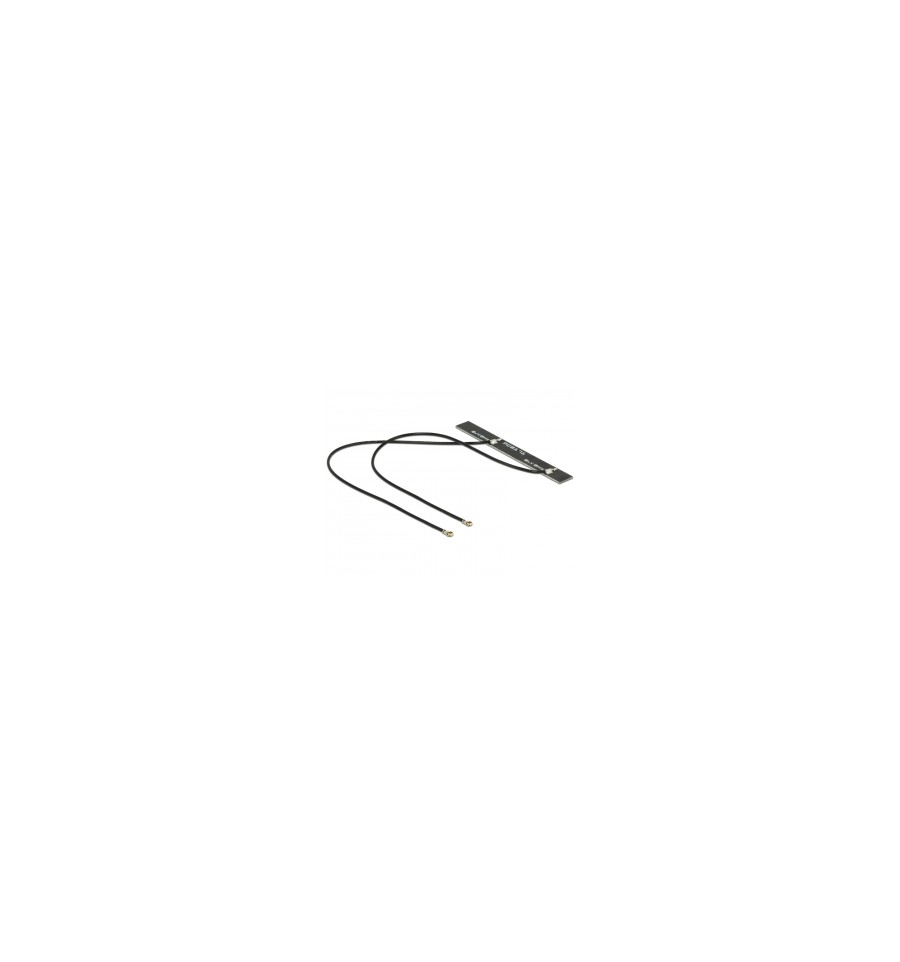

This WLAN twin antenna is designed to integrate into your devices with MHF IV connectors. These are two separate antennas with common ground.
7 dienas
Brīdinājums: Palikusis pēdējā vienība!
Availability date:
Description
This WLAN twin antenna is designed to integrate into your devices with MHF IV connectors. These are two separate antennas with common ground.
Specification
• Connectors: 2 x miniature RF coaxial connector MHF IV (IPEX)
• Frequency range:
2400 ~ 2500 MHz
5150 ~ 5875 MHz
• Gain: 5 dBi
• Impedance: 50 Ohm
• Cable length: 150 mm
• Cable diameter: 1.13 mm
• Cable type: coaxial
• Operating temperature: -10 °C ~ 50 °C
• Dimensions (LxWxH): 61.6 x 7.0 x 1.6 mm
System requirements
• Device with free MHF IV connector
Package content
• Antenna
Package
• Poly bag
