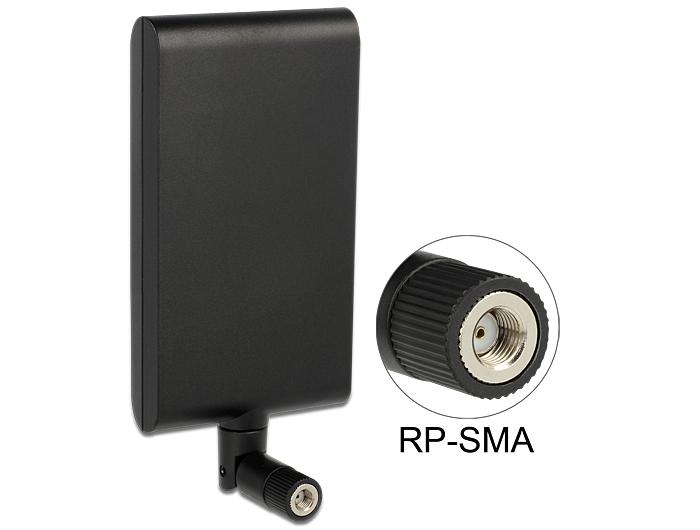

Delock WLAN Antenna 802.11 acahbgn RP-SMA 7,5 ~ 10 dBi Directional With Flexible Joint

Description:
This Wireless LAN antenna can be connected to your device with RP-SMA interface, in order to send and receive signals.

Specification:
• WLAN Antenna external with joint, rotatable
• RP-SMA plug
• Frequency range: 2.4000 ~ 2.4835 GHz,
5.1500 ~ 5.8750 GHz

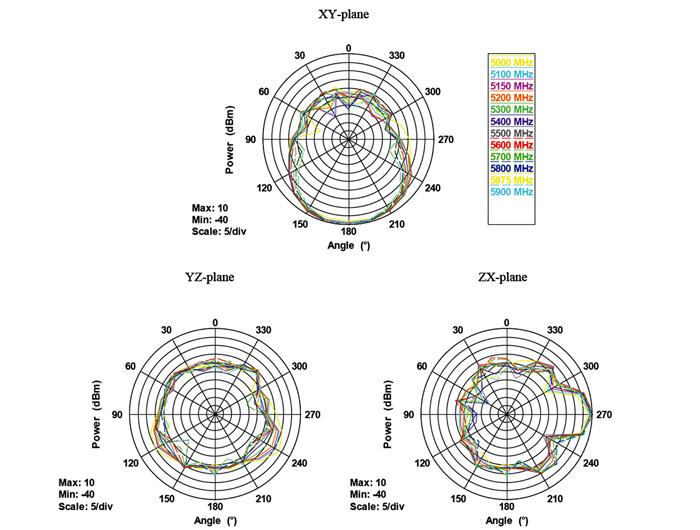

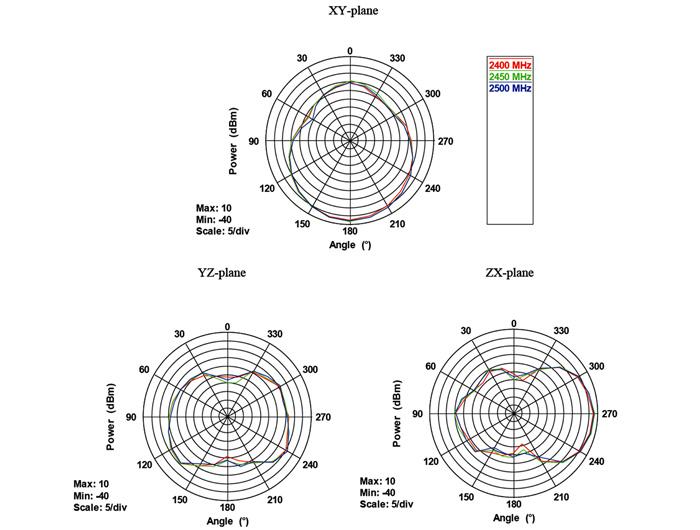

• Gain: 7.5 ~ 10 dBi

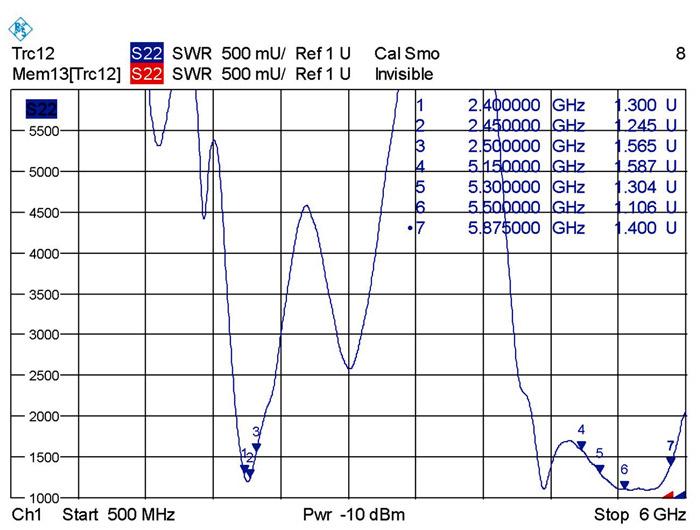

• VSWR: 2.0 max.
• Impedance: 50 Ohm
• Operating temperature: -10°C ~ 55°C

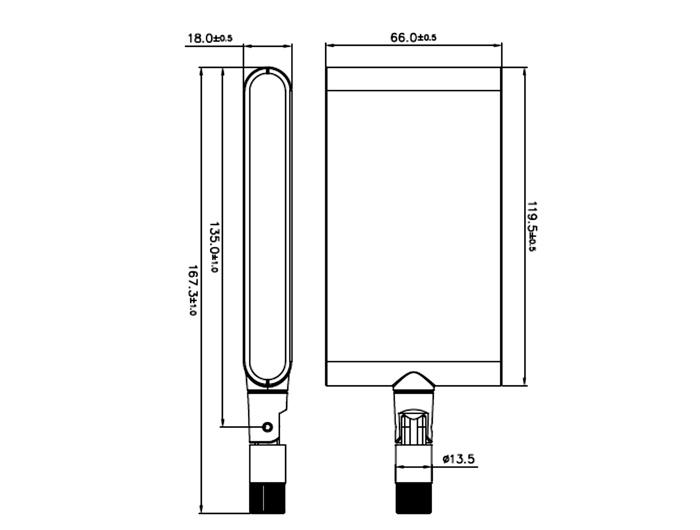

• Dimension: (LxWxH): 167.30 x 66.00 x 18.00 mm
• Ø: 13.50 mm (RP-SMA)

System requirements:


Package content:
• Antenna
