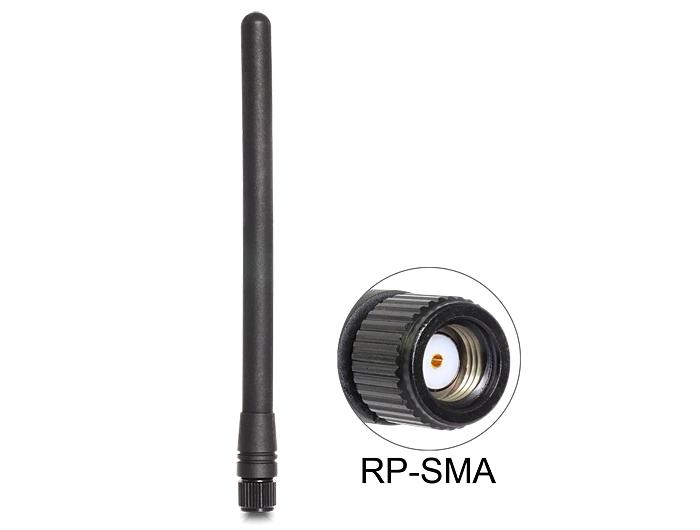

Delock ZigBee 868 MHz Antenna RP-SMA 2 dBi Fixed

Description:
Use this antenna at 868 MHz ZigBee devices with RP-SMA connector.

Specification:
• RP-SMA plug
• Frequency range: 868 MHz
• Antenna gain: 2 dBi
• Return loss: -24.213 dB
• VSWR: 2.0 : 1 max.
• Polarisation: linear, vertical
• Impedance: 50 Ohm
• Antenna tube: TPU
• Operation temperature: -10 °C ~ 75 °C

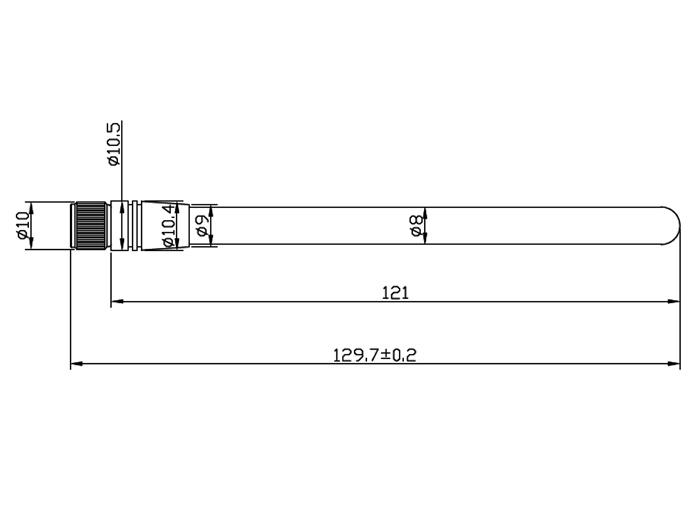

• Dimension: with SMA plug: 129.70 mm
without SMA plug: 121.00 mm
• Ø: Top: 8.00 mm
Base: 10.00 mm

System requirements:


Package content:
• Antenna
