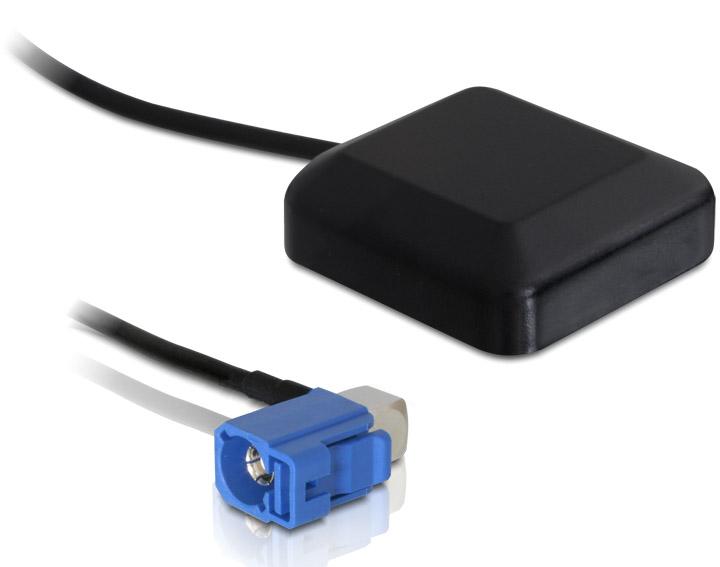

Navilock NL-69AT FAKRA C jack active GPS Antenna 5 m

Description:
This GPS antenna by Navilock can be used with an existing GPS receiver or car receicer with FAKRA-C connection. Improvement of reception will be provided by placing the antenna, e.g. on the hat rack or car roof, where it has a better or free view to the sky. The antenna is waterproof and can temporary also be used outside of the vehicle.

Specification:
• active GPS antenna with FAKRA C jack
• With magnetic underside
• Waterproof
• Operating temperature: -30 °C ~ 80 °C
• Cable length: 5 m
• Cable typ: RG 174
• Frequency L1 band 1575.42 MHz
• Gain: 27 dBi
• Power consumption: typ.: 11 mA, max: 15 mA @ 3 V
• DC input 3.0 ~ 5.5 V
• Band width 2 MHz
• Weight: 150 g
• Dimensions (LxWxH): 40.5 mm x 38 mm x 3 mm

System requirements:


Package content:
• GPS antenna
