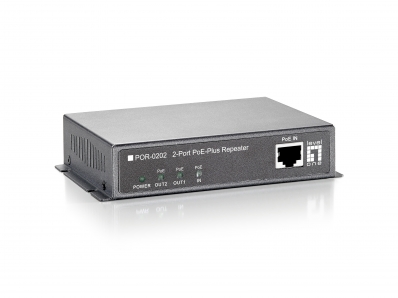

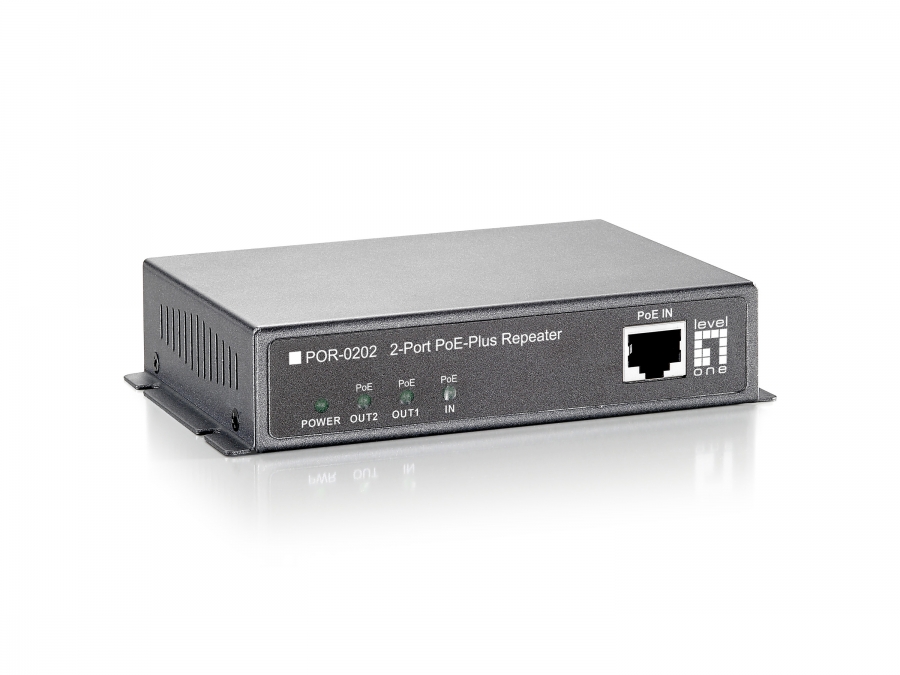

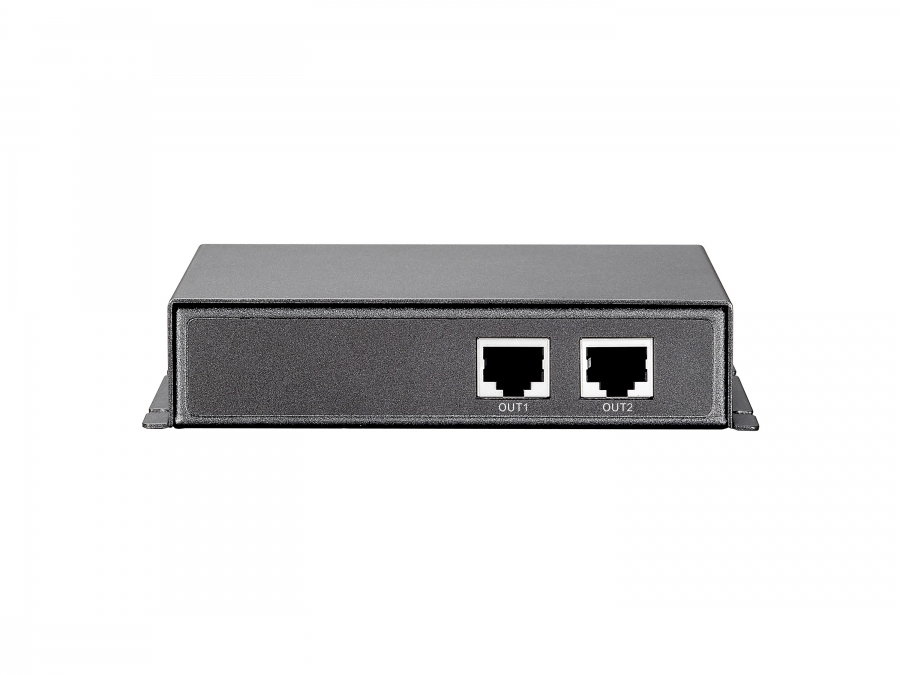

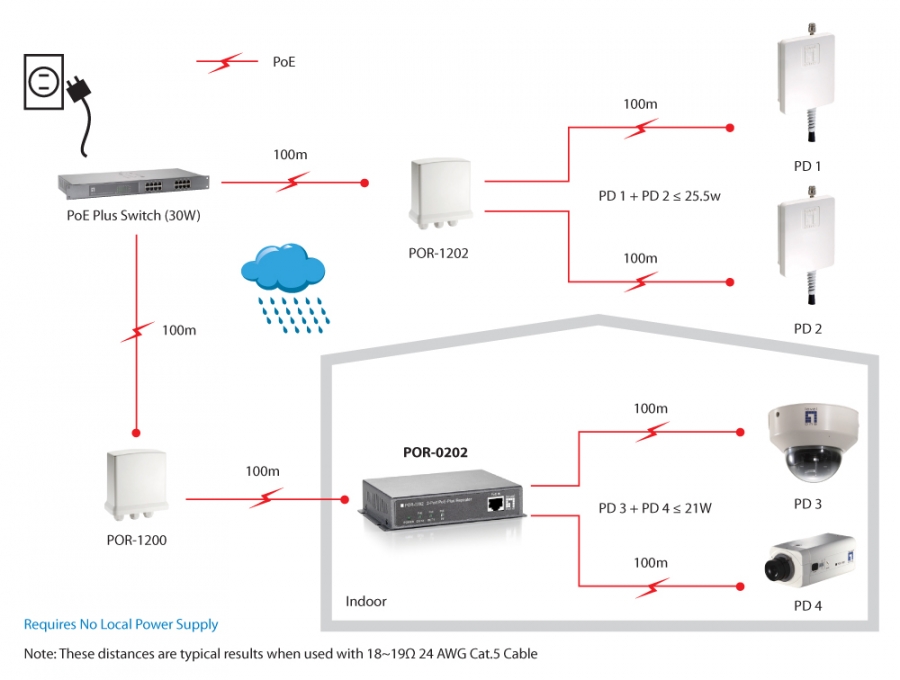

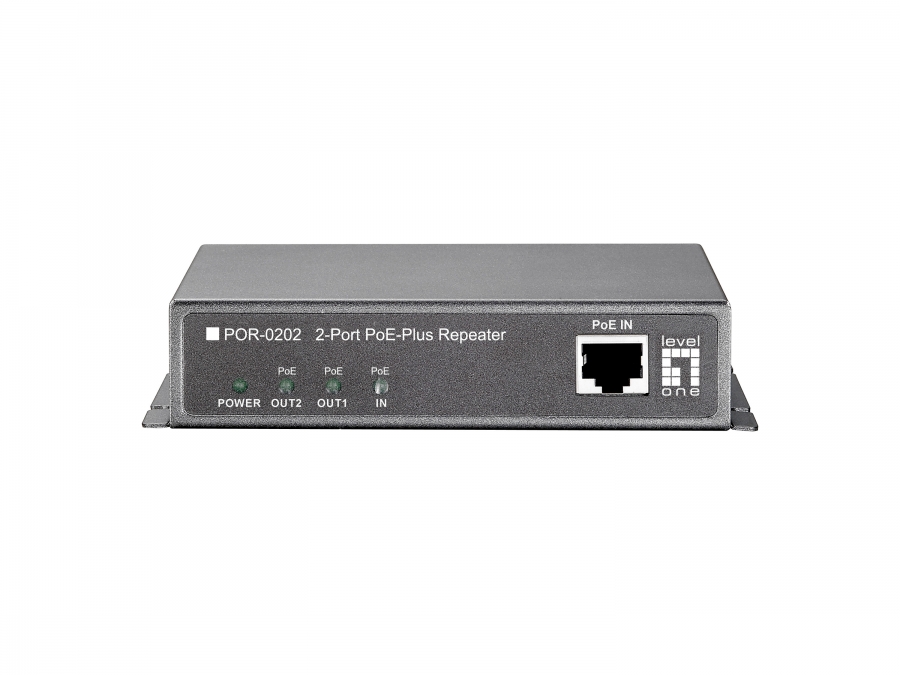

Extend the reach of your PoE-Plus devices For system integrators looking for a professional solution to help extend their PoE (802.3af/at) network, POR-0202 is the perfect accessory to increase your network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility.Normal cable runs only reach 100 meters, but with POR-0202 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.* Maximum distance depends on the required Wattage of the PD.Simple yet durable, no software required As a PoE-Plus Repeater, POR-0202 receives all power from the Power Sending Equipment (PSE), such as a PoE-Plus switch. This means that POR-0202 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0202 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-0202 fits into any tight deployments.Applications POR-0202 is a long-ranged solution for deploying PoE IP Cameras and any Fast Ethernet PoE PD powered by 802.3at PSE.- High Power Midspan PoE compliant to simplify deployment and installation - Built-in 2 PoE output ports for PoE devices - Forwards Power over Ethernet to remote device - Extends PoE connection for another 100 meters - Multiple PoE repeaters can be deployed by daisy chain to extend range - Simple Plug and Play installation, no additional power supply required
|
| Type | Network repeater | | Maximum transfer distance | 100 m | | Cabling technology | 10/100Base-T(X) | | Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x | | Ethernet LAN (RJ-45) ports | 3 | | Power over Ethernet (PoE) ports quantity | 3 | | Product colour | Black | | Mounting type | Wall | | LED indicators | PoE, Power | | Country of origin | Taiwan | | Certification | FCC Part 15, CE | | Power consumption (max) | 2.5 W | | Power over Ethernet (PoE) | Y | | Operating temperature (T-T) | 0 - 50 °C | | Storage temperature (T-T) | 0 - 70 °C | | Operating relative humidity (H-H) | 5 - 95% | | Storage relative humidity (H-H) | 5 - 95% | | Width | 130 mm | | Depth | 90 mm | | Height | 28 mm | | Weight | 400 g | | Sustainability certificates | RoHS | | Quick start guide | Y | | Package type | Box | | Package width | 146 mm | | Package depth | 222 mm | | Package height | 78 mm | | Package weight | 600 g | | Harmonized System (HS) code | 85176990 |
|
