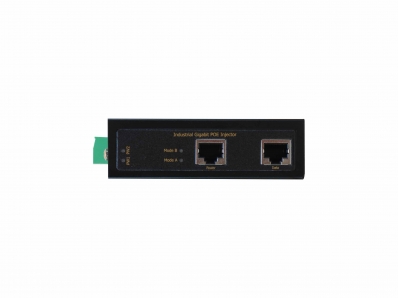

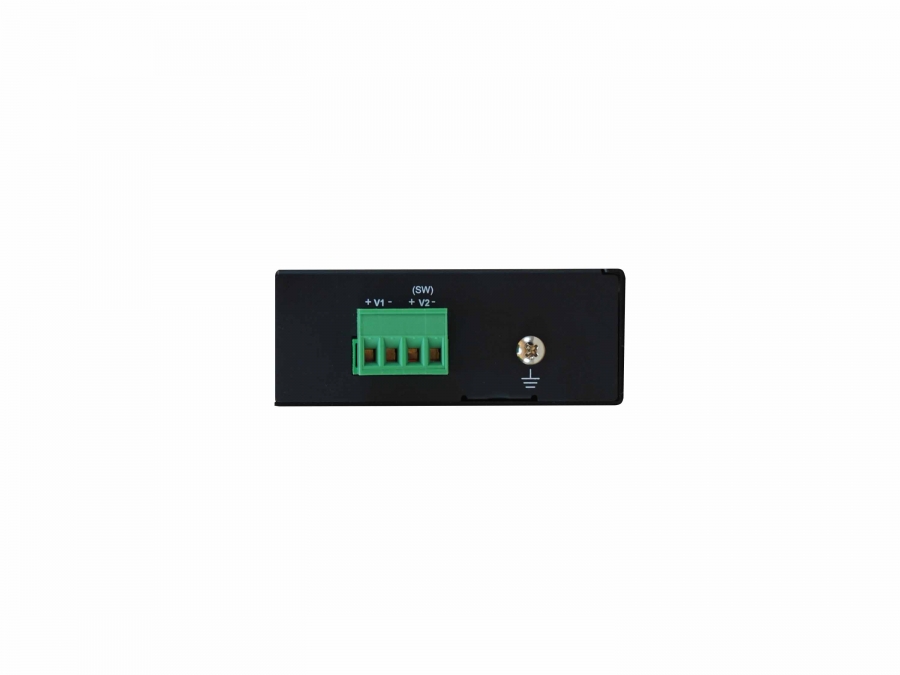

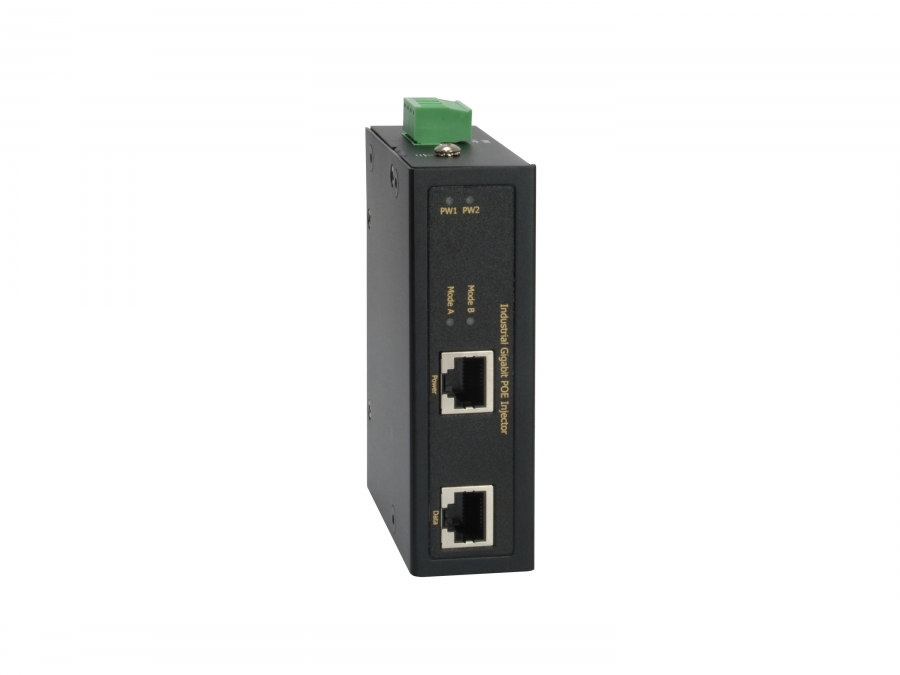

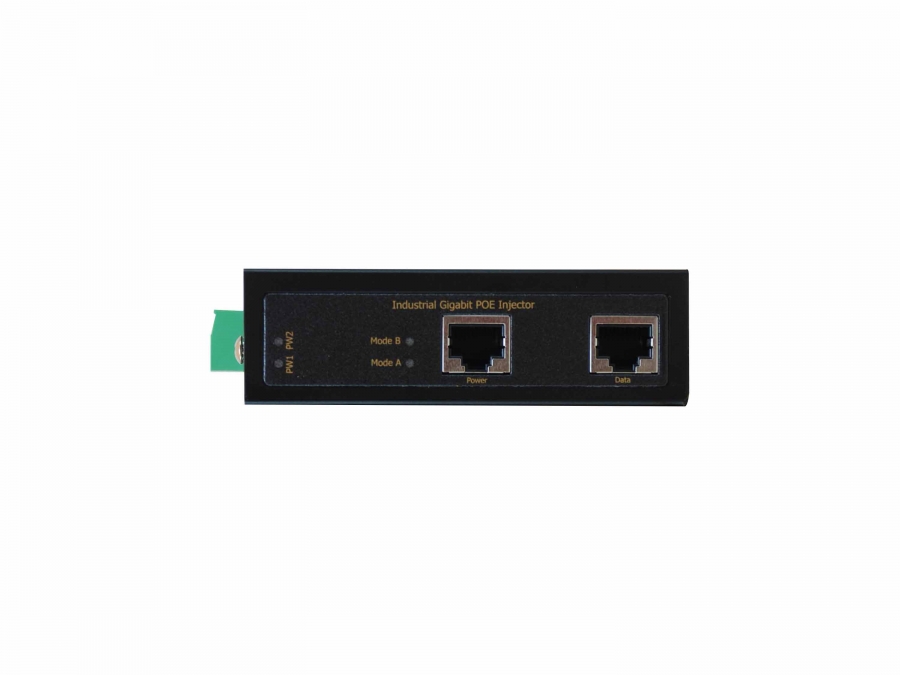

The LevelOne IGP-0101 is rugged designed 30 Watts, high power Single port industrial POE Injector is equipped with our high efficiency ColdDesign technology to provide 30 Watts power to your security equipment. The ColdDesign technology will not only power up your PD device, also reduce the excessive heat problem to a minimum. It accepts the input voltage from 48~56 VDC to deliver 30Watts power to meet IEEE802.3af/at standard. It is being rigorously tested for your Security, Transportation and Telco application.Key Features - PoE ports can support the IEEE 802.3at standard and power up 30W devices - 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX - 40°C to 75°C operating temperature range - Provides DIN-rail, wall or desktop mounting - IP30 metal case - Redundant power inputs with Terminal Block
|
| Ethernet interface type | Gigabit Ethernet | | Ethernet LAN data rates | 10,100,1000 Mbit/s | | Power over Ethernet (PoE) | Y | | Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u | | Duplex system | Full | | Product colour | Black | | Wall mountable | Y | | LED indicators | PoE, Power | | Safety | EN60950-1Ç EN55022/24, EN50155, EN55011, EN50121-3-2 EN60068-2-7, EN60068-2-27, EN60068-2-32 | | Certification | CE, FCC, RoHS, VCCI | | Ethernet LAN (RJ-45) ports | 2 | | Power over Ethernet (PoE) voltage | 56 V | | Output power | 36 W | | Operating temperature (T-T) | -40 - 75 °C | | Operating relative humidity (H-H) | 5 - 95% | | Storage temperature (T-T) | -40 - 85 °C | | Storage relative humidity (H-H) | 5 - 95% | | Width | 81.5 mm | | Depth | 32 mm | | Height | 103.5 mm | | Weight | 140 g | | Package width | 165 mm | | Package depth | 65 mm | | Package height | 215 mm | | Package weight | 370 g | | Manual | Y | | Harmonized System (HS) code | 85044095 |
|
