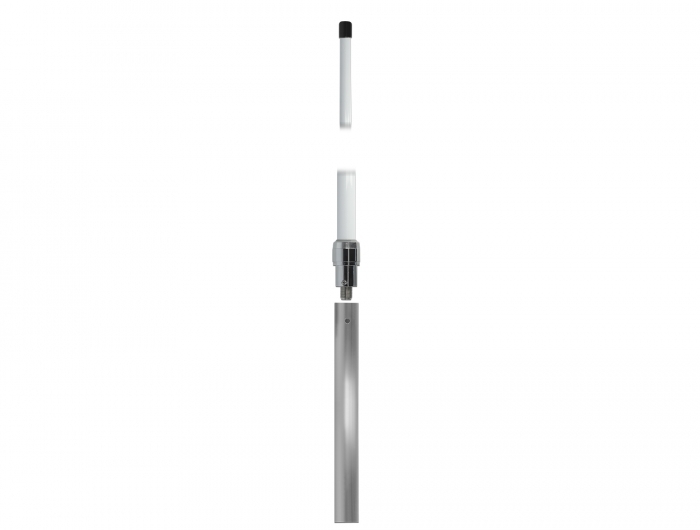

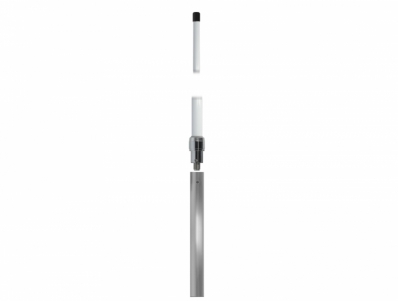

Delock LPWAN 824 MHz - 896 MHz Antenna N jack 10 dBi 223 cm omnidirectional fixed wall and pole mounting outdoor white

DELOCK

12581

Jauns

This antenna by Delock allows the usage of the 824 MHz - 896 MHz band indoors and outdoors.
System requirements:
• Device with one free N port
Specification:
• Connector: 1 x N jack
• Frequency range: 824 MHz - 896 MHz
• LoRa, Sigfox, ZigBee, Z-Wave
• Antenna gain: 10 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• VBW vertical beamwidth: 12°
• Operating temperature: -50 °C ~ 70 °C
• Housing material: GFRP
• Colour: grey
• Dimensions (L): ca. 2.23 m
Package content:
• Antenna

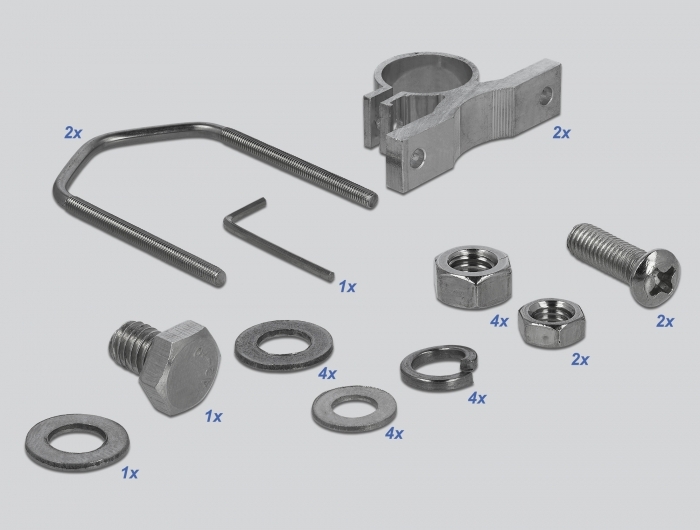

• Mounting material
Data sheet:
http://www.delock.de/produkt/12581/pdf.html?sprache=en
