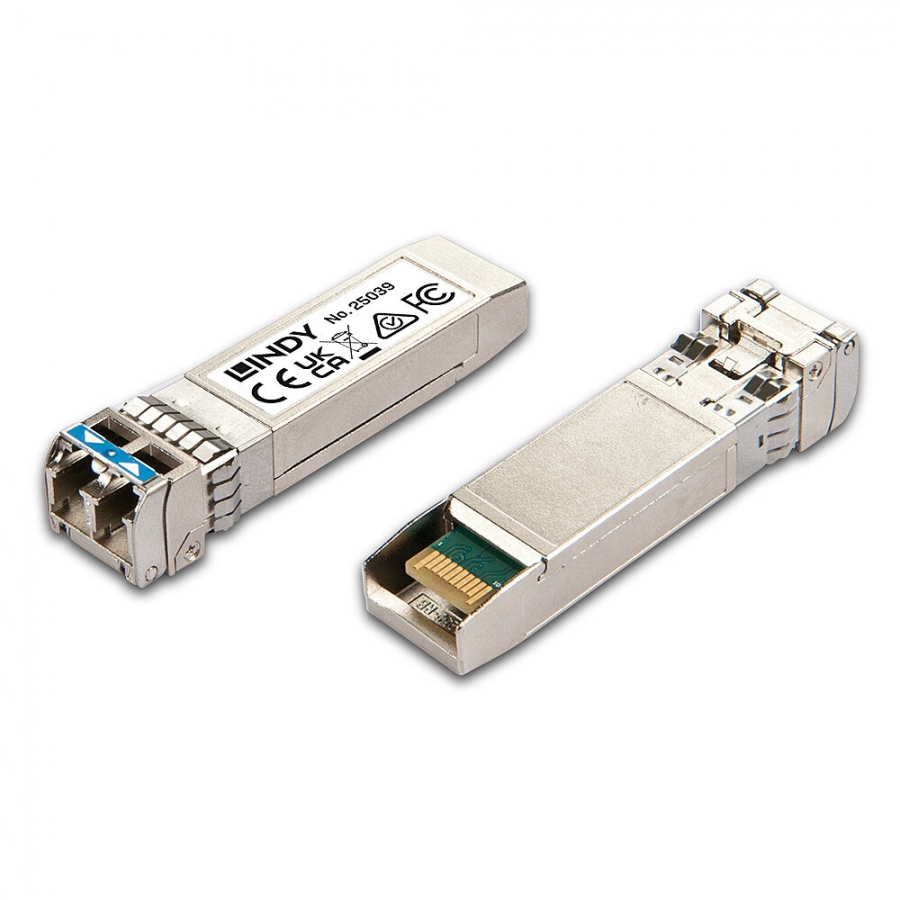

The LINDY Transceiver Module allows a 10 Gigabit fibre optic connection to your network. Simply connect this module to your 10G Ethernet switch or to an Extender with SFP+ slot with a singlemode LC duplex cable for quick and easy connectivity.Standard SFP+ Module for common networking systems like Cisco, HP, Dell, Ubiquiti, D-Link, Zyxel, Netgear, Arista, Juniper or for mainboards with SFP+ slots like SuperMicro, Asus, Gigabyte and Asrock.The module is built to comply with MSA (Multi Sourcing Agreement) standards and uses the industry standard LC interface to extend your network connectivity up to 10Km. It is also is fully hot pluggable, which enables you to install it without powering down your network switch and interrupting traffic flow.Please note: This module is only compatible with 10G switches. 1G or Fast Ethernet switches are not supported.
|
| SFP transceiver type | Fiber optic | | Maximum data transfer rate | 10000 Mbit/s | | Interface type | SFP+ | | Single-mode fiber (SMF) supported | Y | | Fiber optic connector | LC | | SFP transceiver standard | LR, LW | | Maximum transfer distance | 10000 m | | Wavelength | 1310 nm | | Ethernet LAN | Y | | Ethernet interface type | 10 Gigabit Ethernet | | Duplex system | Full | | Product colour | Grey | | Housing material | Metal | | Certification | UKCA, FCC, California Proposition 65 | | Power consumption (typical) | 1 W | | Maximum operating temperature | 70 °C | | Storage temperature (T-T) | -40 - 85 °C | | Operating relative humidity (H-H) | 5 - 95% | | Width | 14.5 mm | | Depth | 57.4 mm | | Height | 12 mm | | Weight | 17 g | | Number of products included | 1 pc(s) | | Package width | 115 mm | | Package depth | 45 mm | | Package height | 20 mm | | Package weight | 35 g | | Sustainability compliance | Y | | Sustainability certificates | CE, REACH, RoHS |
|
