Equip Wandgehäuse 19" 09U 540x400mm schwarz

EQUIP

EWM-09-5440-B

Jauns

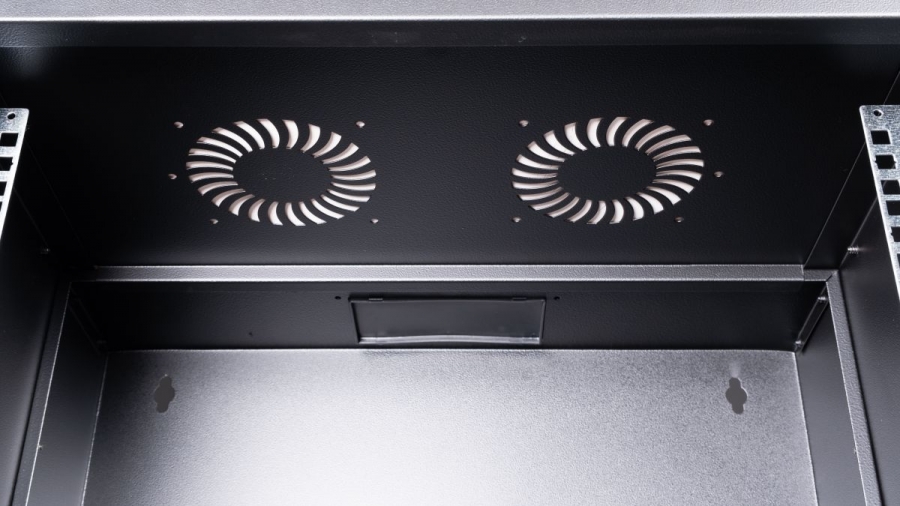

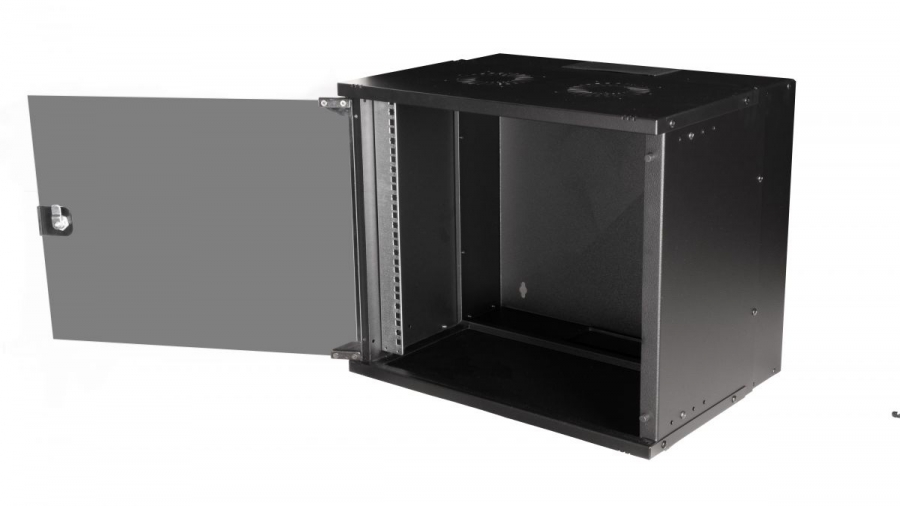

Introducing the Equip Eco Mount Wall Mount Cabinets—designed for seamless integration and efficient management of network components, emphasizing sophisticated cable organization. Constructed from robust 1.5 mm thick steel sheets, these cabinets are paragons of durability and security, ensuring the protection of your valuable equipment. Choose from elegant shades of grey (RAL 7035) and black (RAL 9005) to enhance both functionality and aesthetics. Available in 10“ or 19“ variants, the Equip Eco Mount series offers a smooth experience exclusively for wall-mounted configurations. The door design allows easy reorientation from right to left to suit your spatial requirements. To maintain an optimal operational environment, the cabinets are equipped with integrated ventilation slots at the top.Our design prioritizes effective cable management. The top and bottom each have a cable entry covered with a removable plastic cover for easy cable routing and protection.
We offer a broad range of accessories, like cable management tools and shelves, to meet diverse operational needs. The Equip Eco Mount Wall Mount Cabinets allow you to enhance your IT infrastructure confidently and efficiently. Choose our cabinets for a smarter, more organized, and reliable network solution. Opt for either the 10“ or 19“ model and elevate your IT environment's performance today.
Please note, these cabinets are not pre-assembled. Assembly is straightforward, and we provide an instructional video to guide you through the process.

Rack capacity9U
TypeWall mounted rack
Product colourBlack
MaterialSteel
Frame typeClosed
Product design2-post
Back door constructionSteel
Front door constructionTempered glass
Side panel constructionSteel
Removable back door
Removable front door
Removable side panels
Side panels included

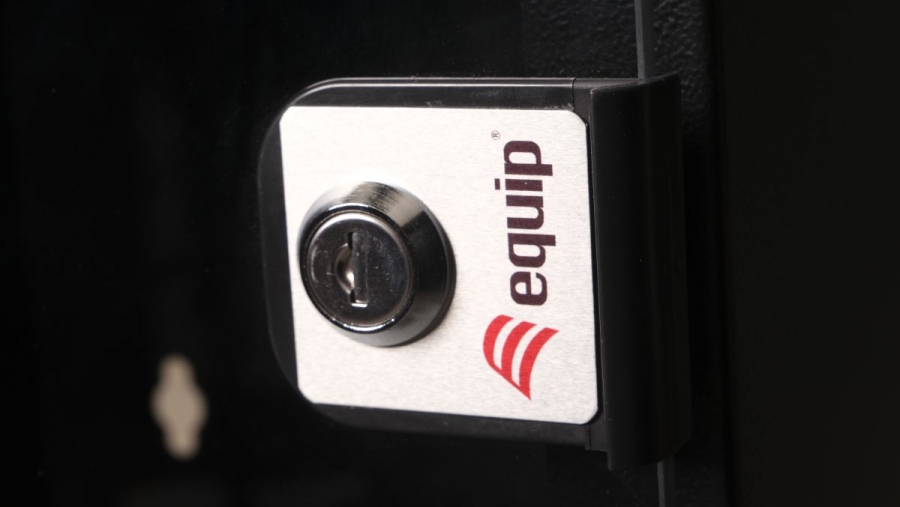

Key lock
Back door key lock
Front door key lock
Side panel key lock
Rack rails
Rack rail thickness1.5 mm
Adjustable stand
Adjustable depth
Adjustable feet
Cooling typePassive
Soundproof
Main PDU
Monitoring
Cable management
Mounting hole shapeSquare
Stabilising foot screw
Castor wheels
Door opening angle200°
Assembly required
Preassembled
Built-in UPS
Size (imperial)31 cm (12.2")
Width174 mm
Depth400 mm
Height463 mm
Inner width49.5 cm
Inner depth39.5 cm
Inner height40 cm
Weight10.3 kg
Mounting depth (min)36 cm
Mounting depth (max)38 cm
Nuts included
Number of nuts10
Screws included
Number of screws12
Plinth panel
Temperature sensor
Wall mounting kit
Mounting kit
Grounding kit
Quick installation guide
Manual
Package width465 mm
Package depth577 mm
Package height174 mm
Pallet net height190 cm
Pallet net length110 cm
Pallet net width130 cm
Total carbon footprint1.7613 kg of CO2e
Country of originTurkey
Harmonized System (HS) code853710980019
Master (outer) cases per pallet50 pc(s)
Layers per pallet10 pc(s)
Products per pallet50 pc(s)
