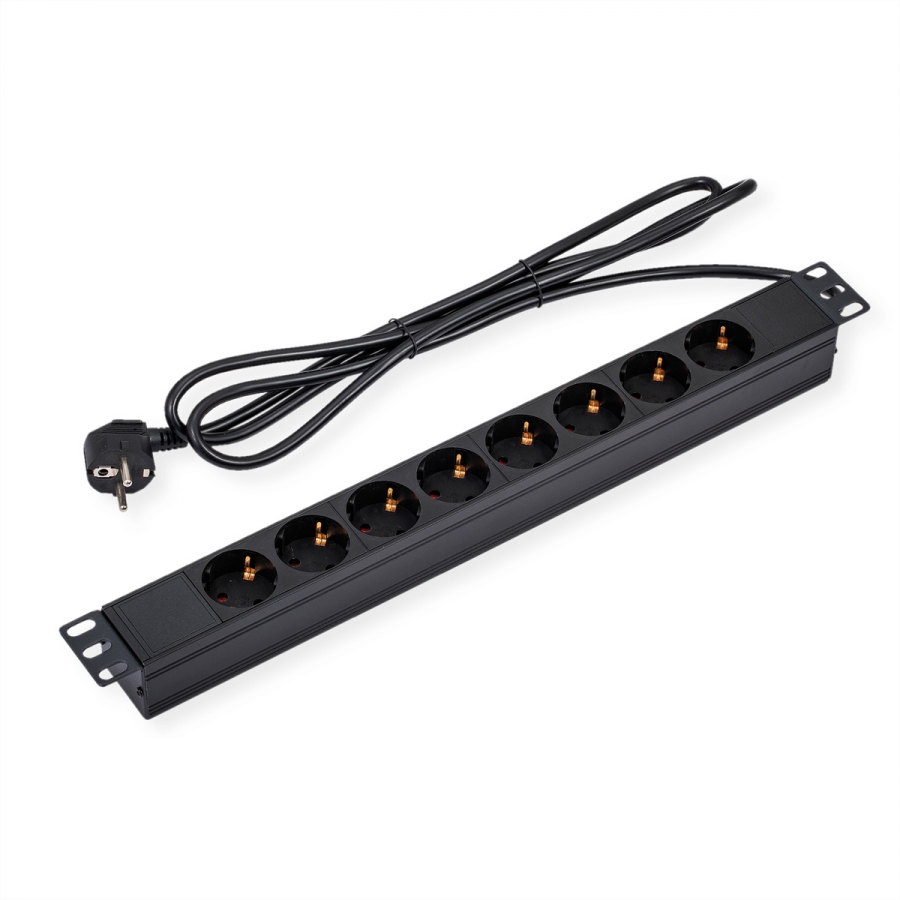

VALUE 19" PDU for Cabinets 8x 2300W, CEE 7/4 M German Type, 1.8 m

VALUE

19.99.1632

Jauns

19" PDU with 8x German Type sockets and supply cable (1.8m) with German Type plug, 1U, for installation in 19" cabinets.

  • 19" socket strip (1 U) for installation in 19" cabinets, incl. mounting bracket
  • 8 German Type sockets (CEE 7/4)
  • Arrangement of sockets: 45°
  • Anodised aluminium profile
  • Cable type: 1.8m H05VV-F 3G 1.5mm², black
  • Maximum load/power: 16A 3500W
  • Colour: ALU / black RAL 9005
  • Width: 440mm



ManufacturerVALUE
Product groupPower Bars
Product type19" power strip
Colourblack
Length1.8 m
Function19'' PDU for Cabinets
Mounting form19" Rackmount
Max. capacitance3500W
Max. voltage250V AC
ON/OFF Switch
Quantity of outputs/angles8 / 45°
Output alignmentLine

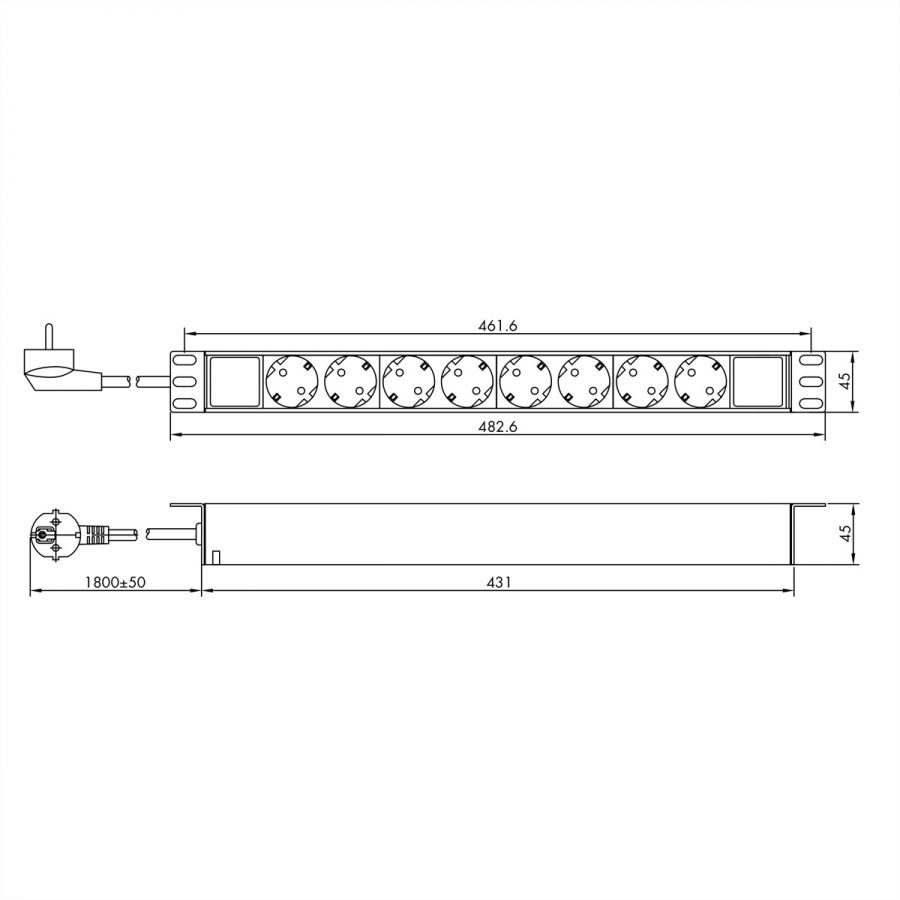

Dimensions (HxWxD)45 x 440 x 45 mm
Material (casing)Aluminium
Colour (Design profile)RAL 9005 black
Connection cableH05VV-F 3G 1,5mm²
Connector plugCEE 7/4 German Type
Mains connectionProtective contact plug
Height of packaging (single piece)60 mm
Width of packaging (single piece)90 mm
Depth of packaging (single piece)500 mm
Package weight (single piece)0.87 kg
Current catalog editionC23-New
