ROLINE 19" PDU for Cabinets 8 - 3600W, IEC320 C13 - C20 M, Aluminium, 2.0 m

ROLINE

19.07.1627

Jauns

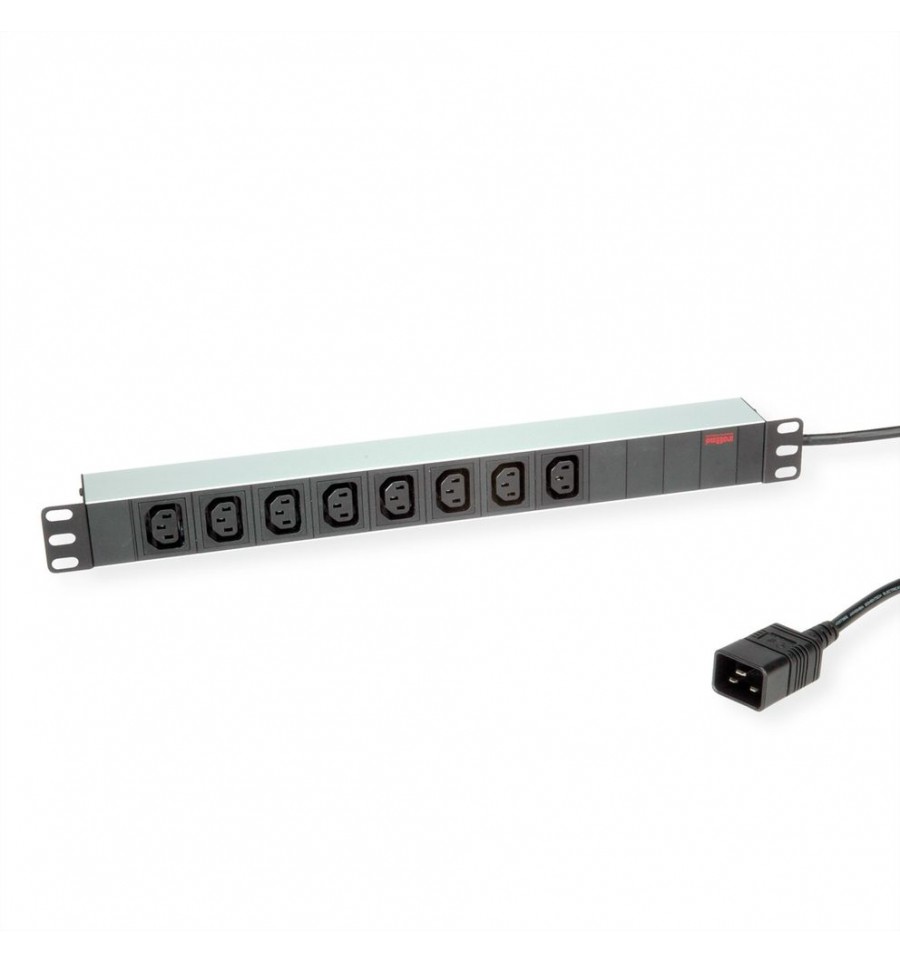

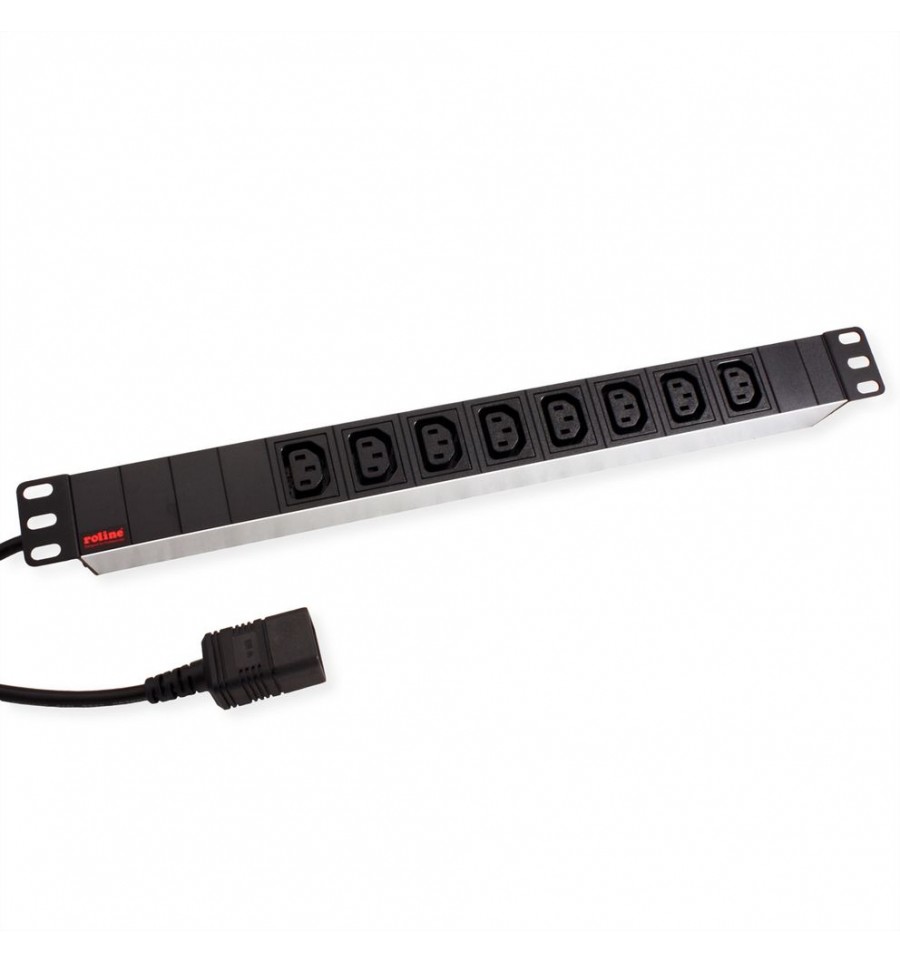

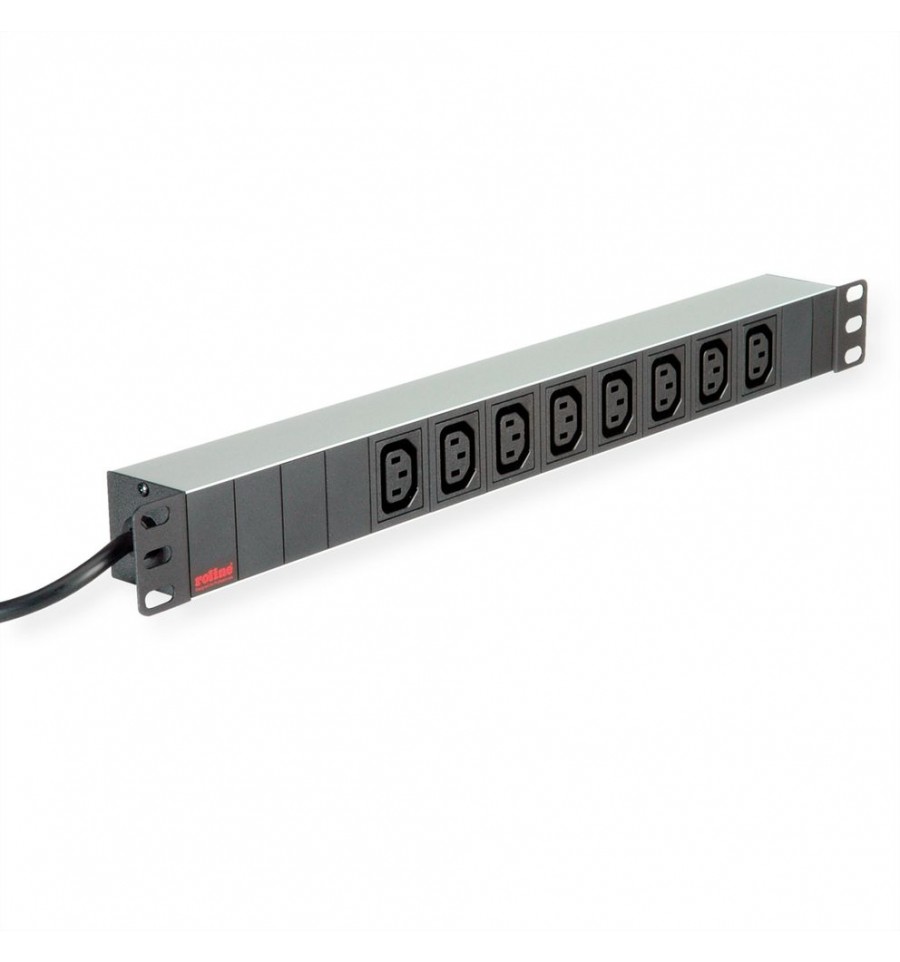

19" socket strip with 8x C13 connection and C20 supply cable, 1U, for installation in 19" cabinets, incl. mounting brackets.

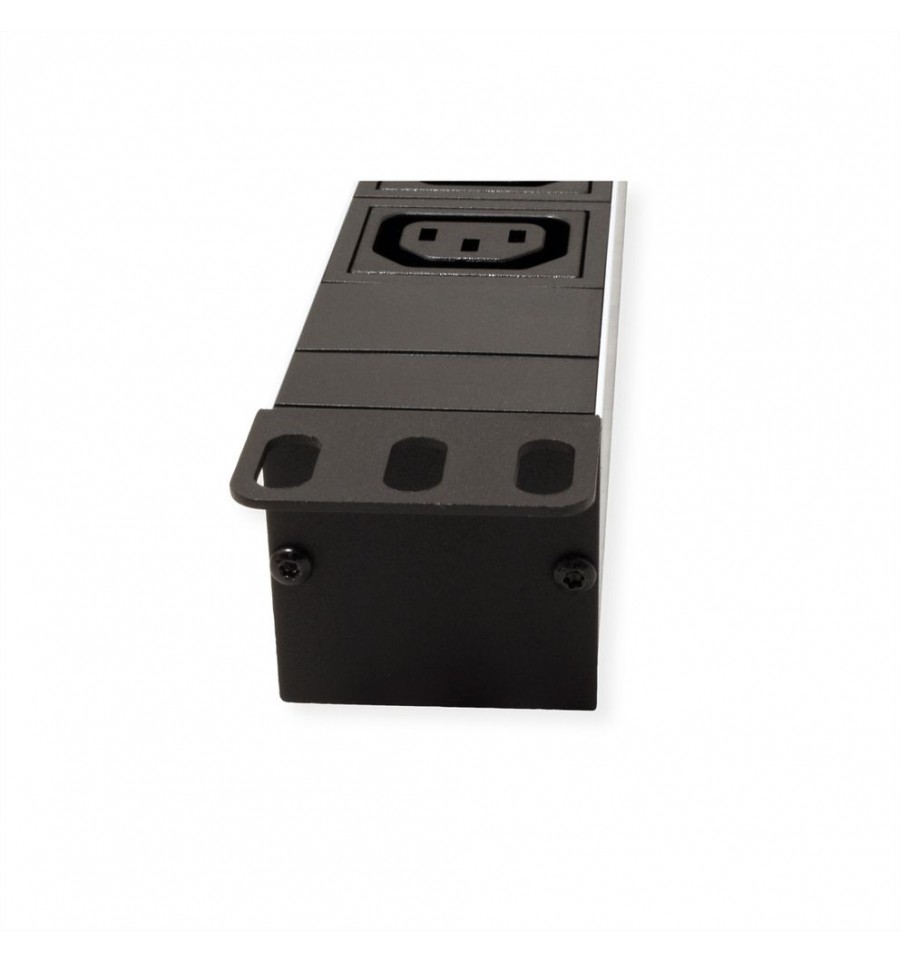

  • 19 "socket (1UH) for installation in 19" cabinets, incl. installation angles.
  • Arrangement of sockets: 90°
  • Profile of anodized aluminium.

  • Cable type: 2.0m H05VV-F 3G 1,5mm², black
  • Max load/power: 16A 3600W
  • Color: ALU / light gray RAL 7035
  • Width: 440mm


ManufacturerROLINE
Product groupPower Bars
Product type19'' PDU for Cabinets
ColourAluminium
Length2 m
Function19'' PDU for Cabinets
Mounting form19" Rackmount
Max. capacitance3600W
Max. voltage250V AC
ON/OFF Switch
Quantity of outputs/angles8 / 90°
Output alignmentLine
Dimensions (HxWxD)44 x 44 0x 44 mm
Weight0,88 kg
Material (casing)Aluminium
Colour (Design profile)Aluminium
Connection cableH05VV-F 3G 1.5mm²
Connector plugIEC320 C20
Current catalog editionC19-New6
