> >>WL-AP TP-Link Access Point EAP115-Wall (300MBit)
New WL-AP TP-Link Access Point EAP115-Wall (300MBit)

WL-AP TP-Link Access Point EAP115-Wall (300MBit)

TP-LINK

EAP115-WALL

New

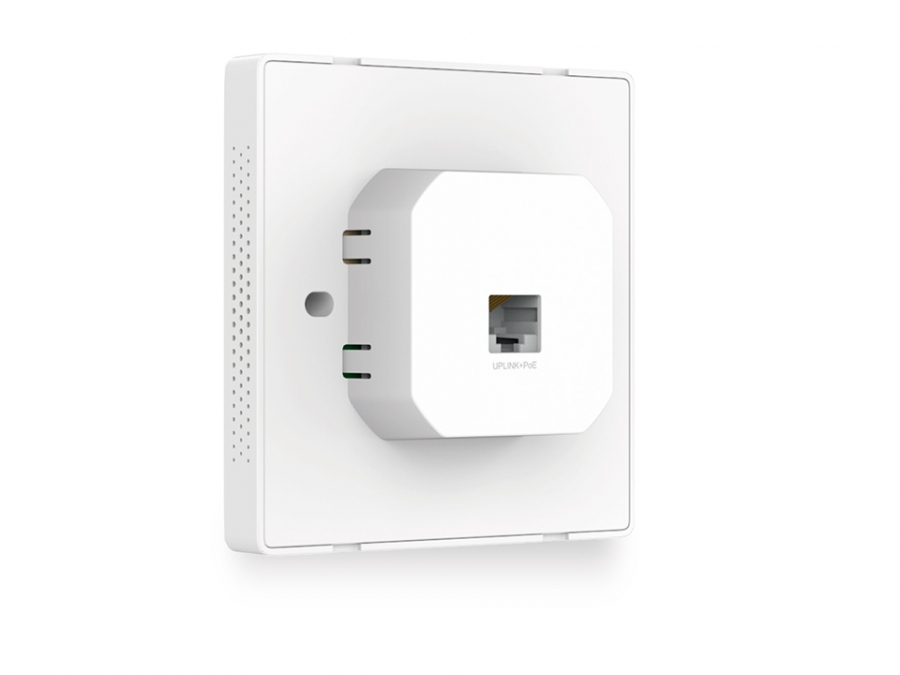

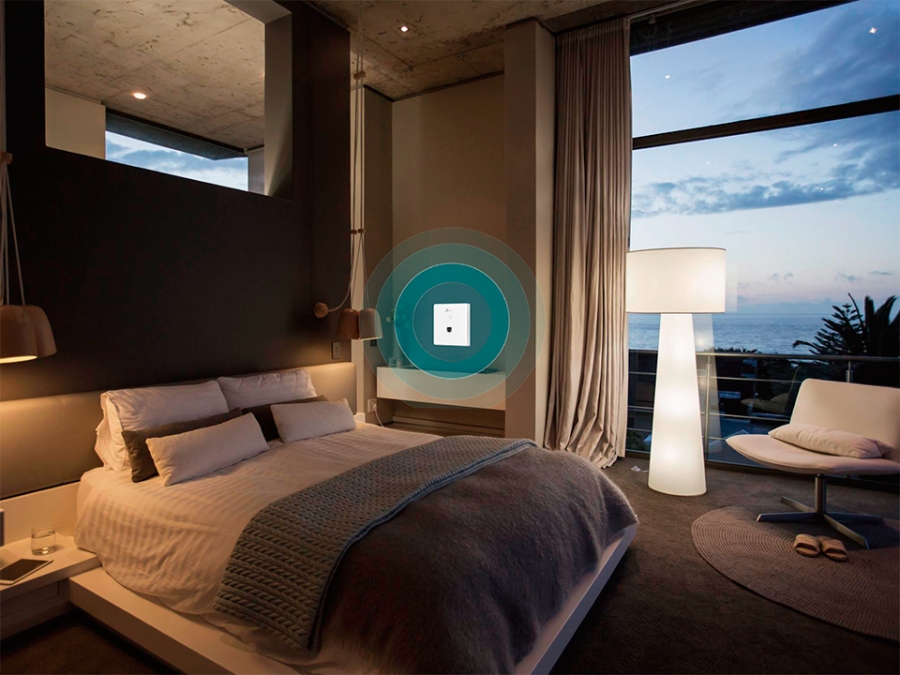

Installation Made Easy - Detach the faceplate of the junction box* with a screwdriver. - Remove the faceplate of the EAP. - Connect an in-wall Ethernet cable to the Uplink+POE port. - Secure the access point to the wall using the nails provided. - Press the faceplate back into position.Perfectly Formed The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.Effortless Deployment With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.Complete Wireless Coverage An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.Cloud Centralized Management - Anytime, Anywhere Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.Easy Management with the Omada App Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

2.4 GHzY
5 GHzN
6 GHzN
Maximum data transfer rate300 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology10/100Base-T(X)
Automatic channel selectionY
Wi-Fi Multimedia (WMM)/(WME)Y
Rate limitingY
Wireless isolationY
Quality of Service (QoS) supportY
Transmitting power15 dBmW
Security algorithms802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filteringY
Number of SSID supported8
Management protocolsSNMP, Telnet
Web-based managementY
SyslogY
Ethernet LAN (RJ-45) ports2
WAN connectionEthernet (RJ-45)
Power over Ethernet (PoE)Y
Power consumption (typical)2.8 W
PlacementWall
Product colourWhite
Cable lock slotN
Reset buttonY
LED indicatorsY
CertificationCE, RoHS
InternalN
Antenna typeInternal
Antennas quantity2
Antenna gain level (max)1.8 dBi
Compatible operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Width86.8 mm
Depth86.8 mm
Height30.2 mm
Package width130 mm
Package depth118 mm
Package height47 mm
Package weight190 g
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Harmonized System (HS) code85176990
