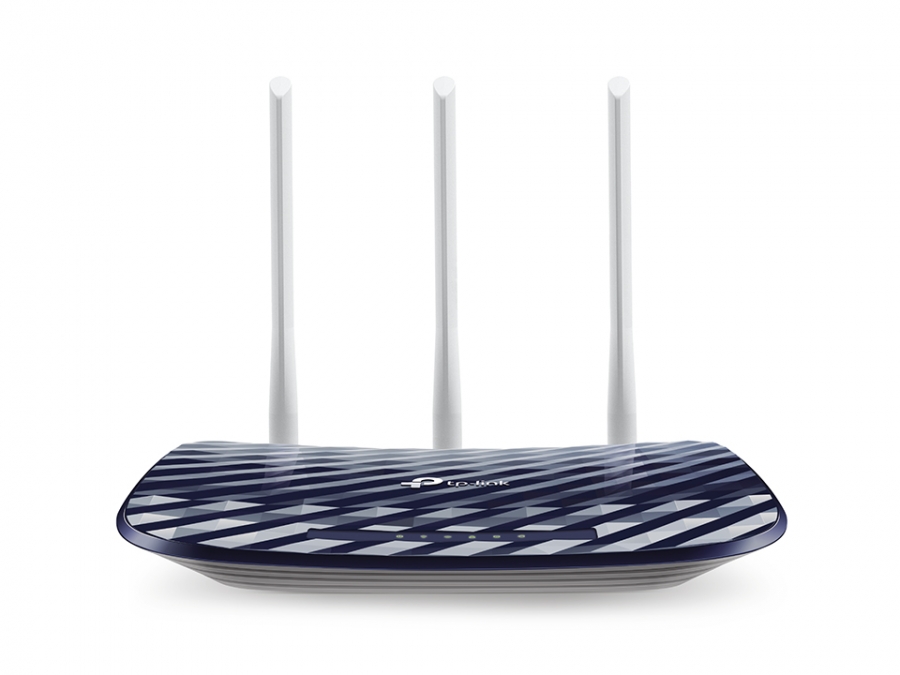

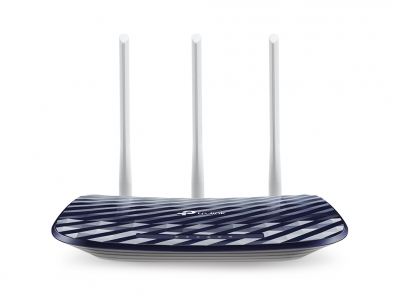

WL-Router TP-Link Archer C20 V4 (AC750 Dual-Band)

TP-LINK

ARCHER C20

New

- Supports 802.11ac standard - the next generation of Wi-Fi - Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth - 2 external antennas provide stable omnidirectional signal and superior wireless coverage - USB port - share a printer locally and files & media with networked devices or remotely via FTP server802.11ac - The Next Generation of Wi-Fi TP-LINK’s Archer C20 comes with the next generation Wi-Fi standard – 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.733Mbps Dual Band Connections for Lag-Free Work With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.Stable Omnidirectional Signal and Superior Coverage With 2 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.Easy USB Storage and Sharing With the USB port, you can share a printer locally and files & media with networked devices or remotely via FTP server.

Ethernet WANY
DSL WANN
SIM card slotN
3G/4G USB modem compatibilityN
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)433 Mbit/s
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)433 Mbit/s
Ethernet LANY
Ethernet LAN interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Dynamic DNS (DDNS)Y
VPN PassthroughY
VPN supportPPTP, L2TP, IPSec
Mobile network generation4G
3GN
4GN

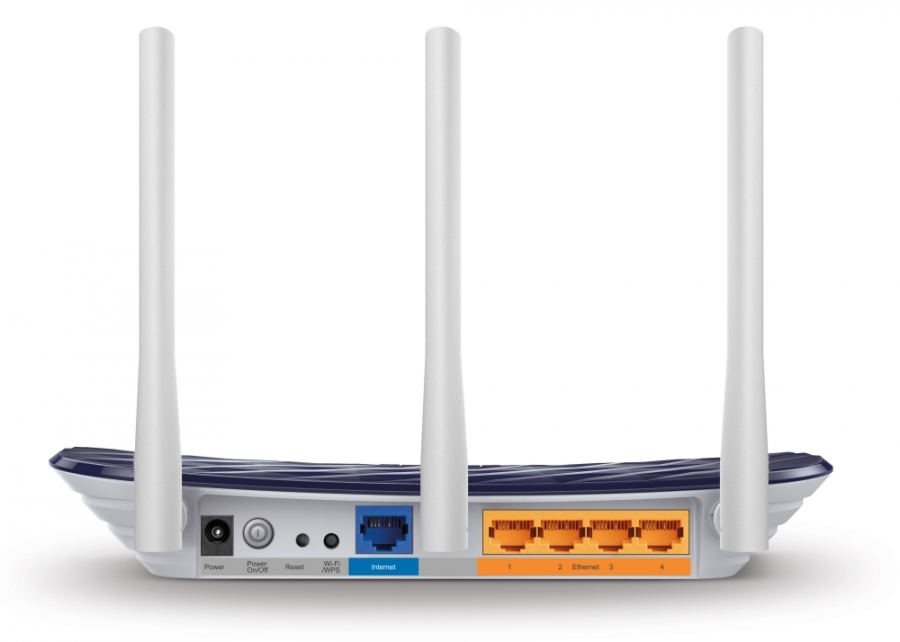

Ethernet LAN (RJ-45) ports4
USB portN
DC-in jackY
Web-based managementY
Quality of Service (QoS) supportY
Reset buttonY
WPS push buttonY
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
FirewallY
Guest accessY
Port-based Network Access Control (PNAC)Y
Stateful Packet Inspection (SPI)Y
DoS attack preventionY
FilteringY
MAC address filteringY
IP address filteringY
DMZ supportY
Universal Plug and Play (UPnP)Y
Product typeTabletop router
Product colourBlack, White
LED indicatorsY
On/off switchY
Cables includedLAN (RJ-45)
AC adapter includedY
Quick installation guideY
Quick start guideY
Antenna designExternal
Antennas quantity3
CertificationCE, FCC, RoHS
Power source typeAC, DC
Output voltage12 V
Output current1 A
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supportedY
Mac operating systems supportedY
Width230 mm
Depth144 mm
Height35 mm
Package width357 mm
Package depth223 mm
Package height68 mm
Number of products included1 pc(s)
WLAN data transfer rates supported300,433 Mbit/s
Frequency range2.4 - 5 GHz
Bandwidth (first)2.4 GHz
Bandwidth (second)5 GHz
USB ports quantity1
USB version2.0
Input current1 A
Frequency band2.4 & 5
Rack mountingY
xDSL connectionN
