> >>Controller TP-Link Cloud Omada OC200
New Controller TP-Link Cloud Omada OC200

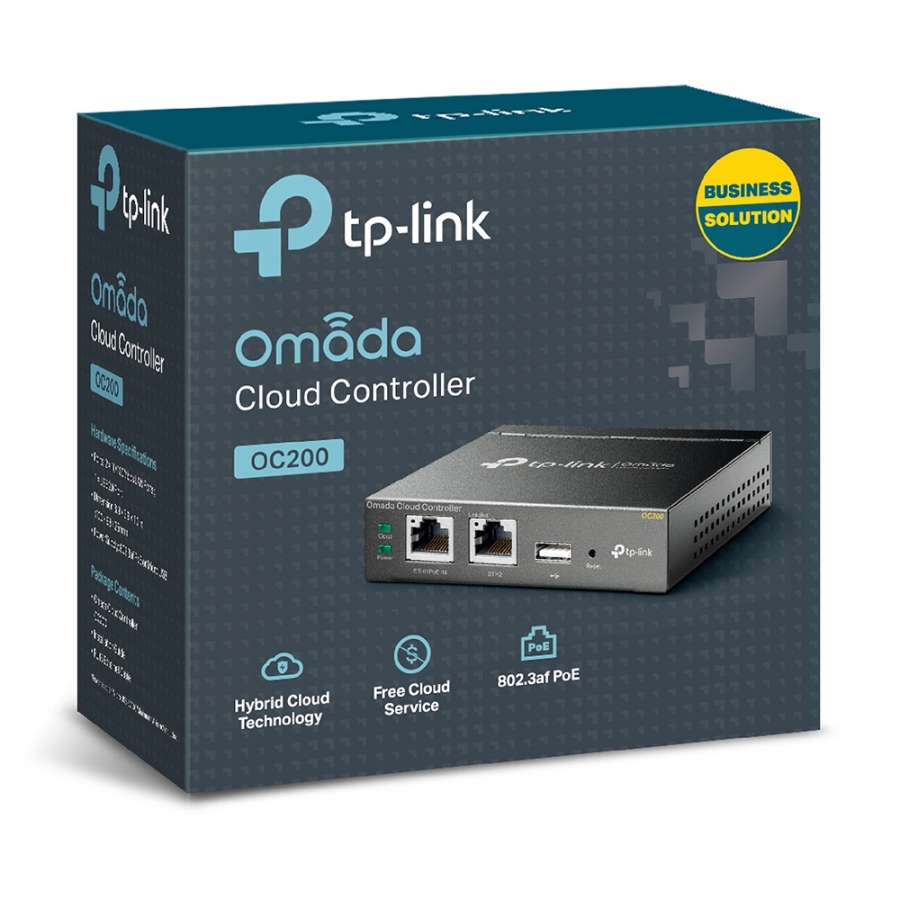

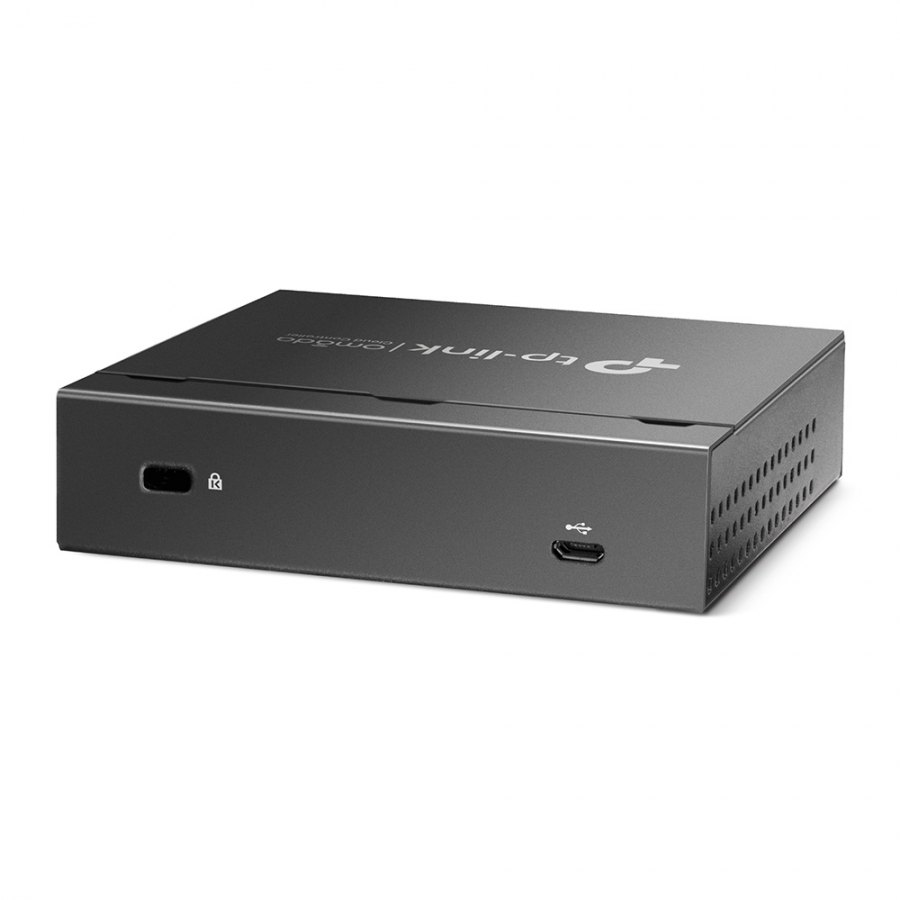

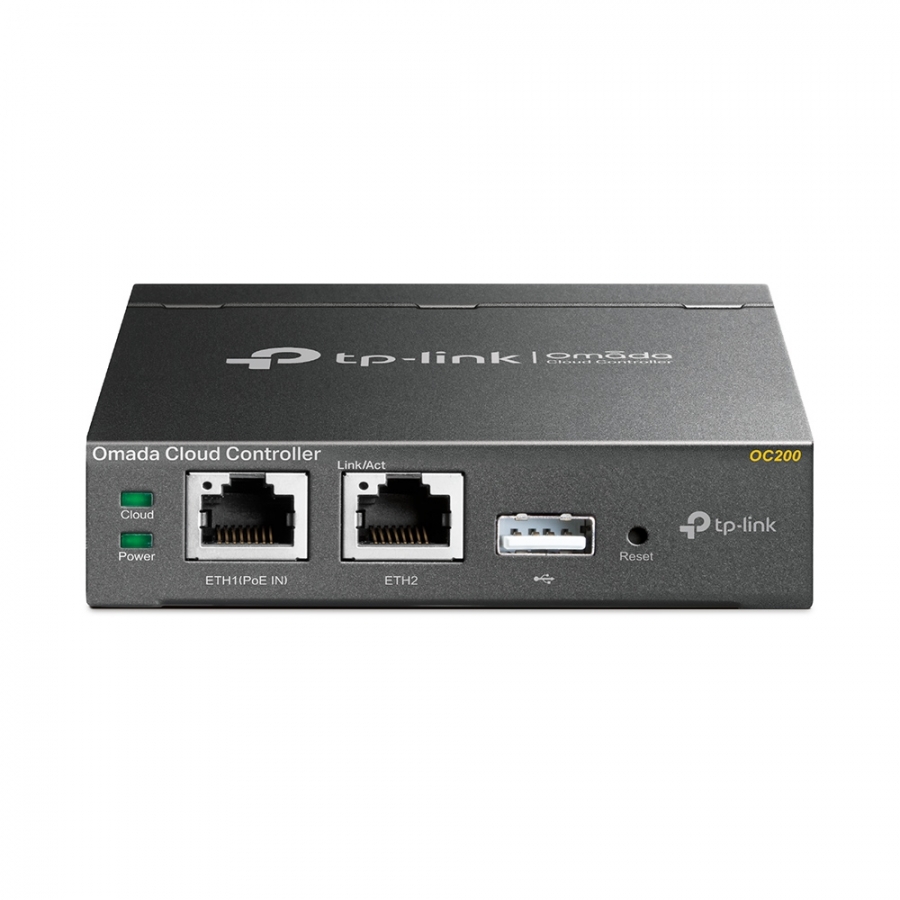

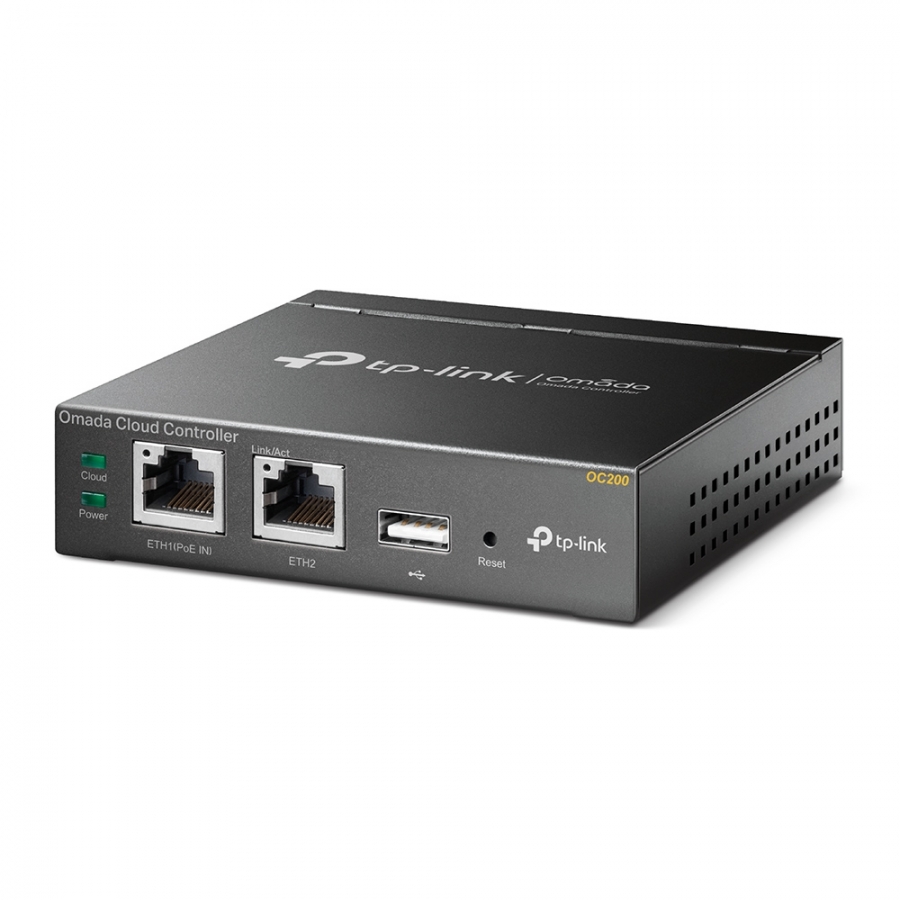

Controller TP-Link Cloud Omada OC200

TP-LINK

OC200

New

Dedicated In Network Centralized Management The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.Free Cloud Management – Anywhere, Anytime Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.Industry Leading Hardware Design Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.Guest Network with Facebook Wi-Fi and SMS Login Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.Even More Convenient with Omada App Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.

Product colourBlack
LED indicatorsY
CertificationCE, FCC, RoHS
Control display unitN
Built-in processorY
Processor frequency1000 MHz
Number of processors installed1
Internal memory1024 MB
Internal memory typeDDR3
Flash memory4000 MB
Ethernet LAN data rates10,100 Mbit/s
Networking standardsIEEE 802.3af, IEEE 802.3at
MAC address filteringY
Security algorithmsSSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VLAN supportY
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Management platformL3
Web-based managementY
Reset buttonY
SyslogY
Power consumption (typical)5 W
Input voltage5 V
Input current1 A
Power over Ethernet (PoE)Y
DC input voltage5 V
Compatible operating systemsWindows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux
Width99.8 mm
Depth98 mm
Height25 mm
Package width135 mm
Package depth128 mm
Package height70 mm
Cables includedLAN (RJ-45)
Quick installation guideY
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Harmonized System (HS) code85176990
