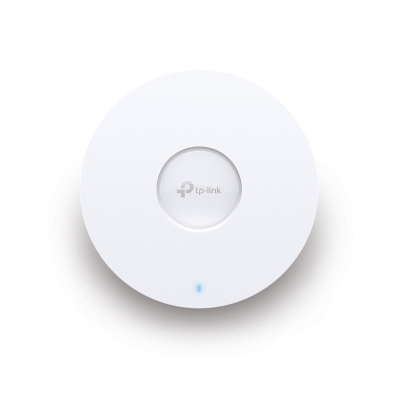

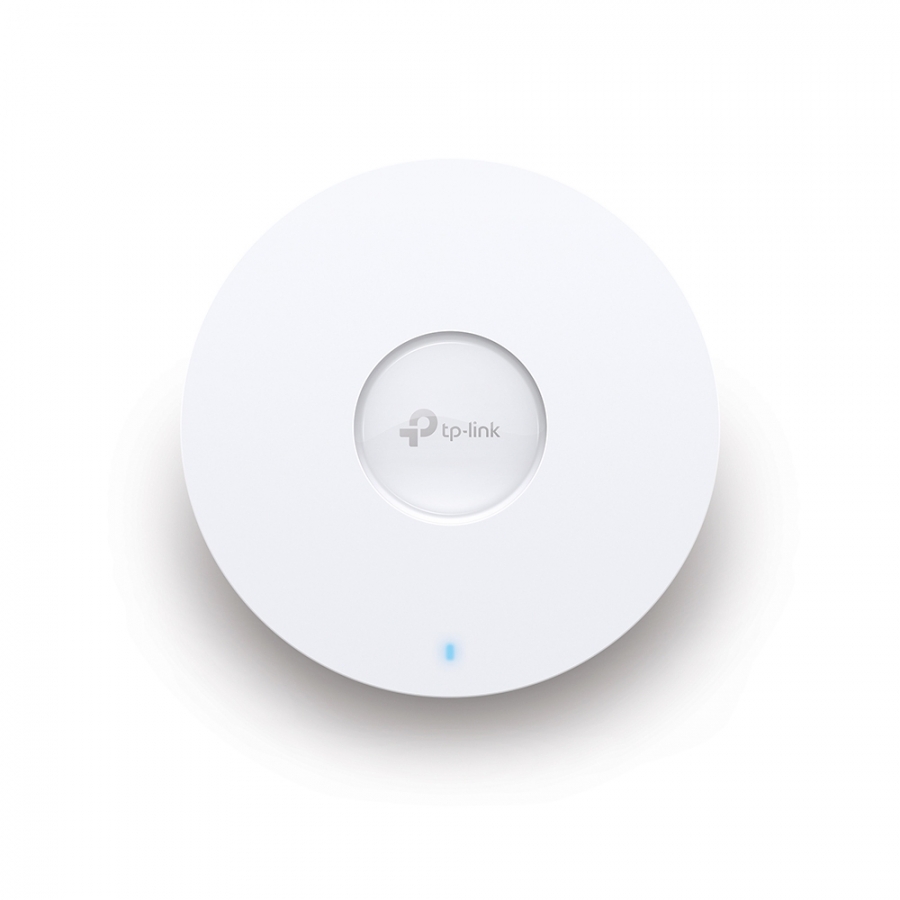

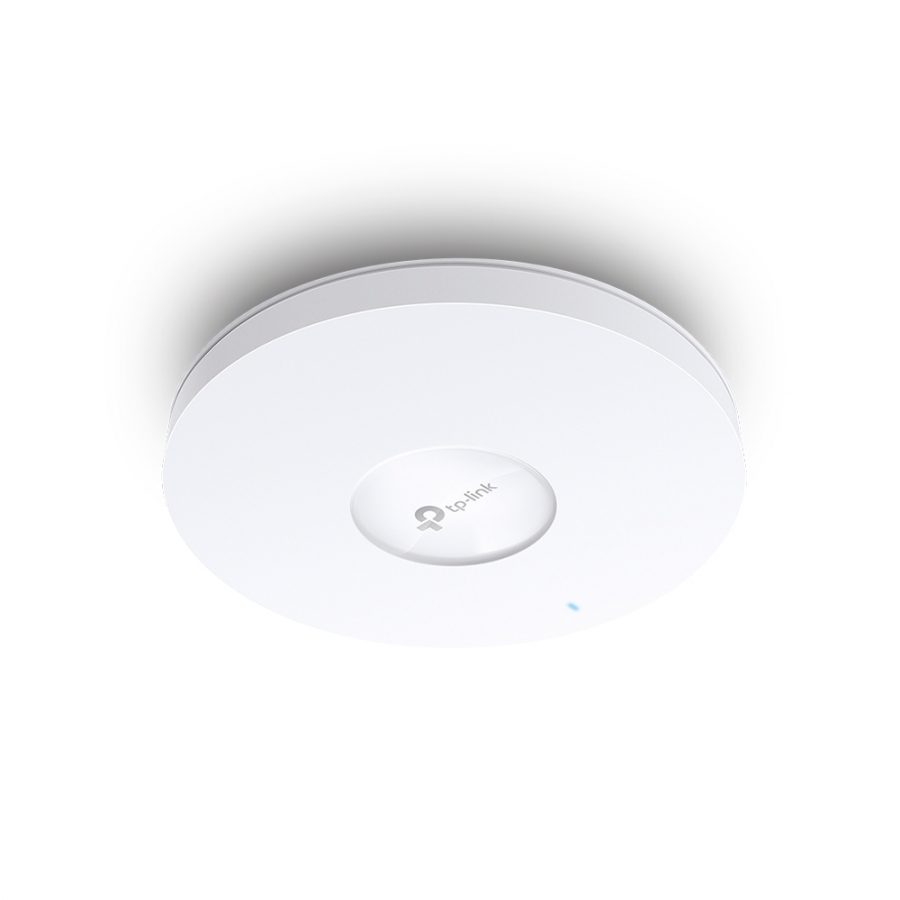

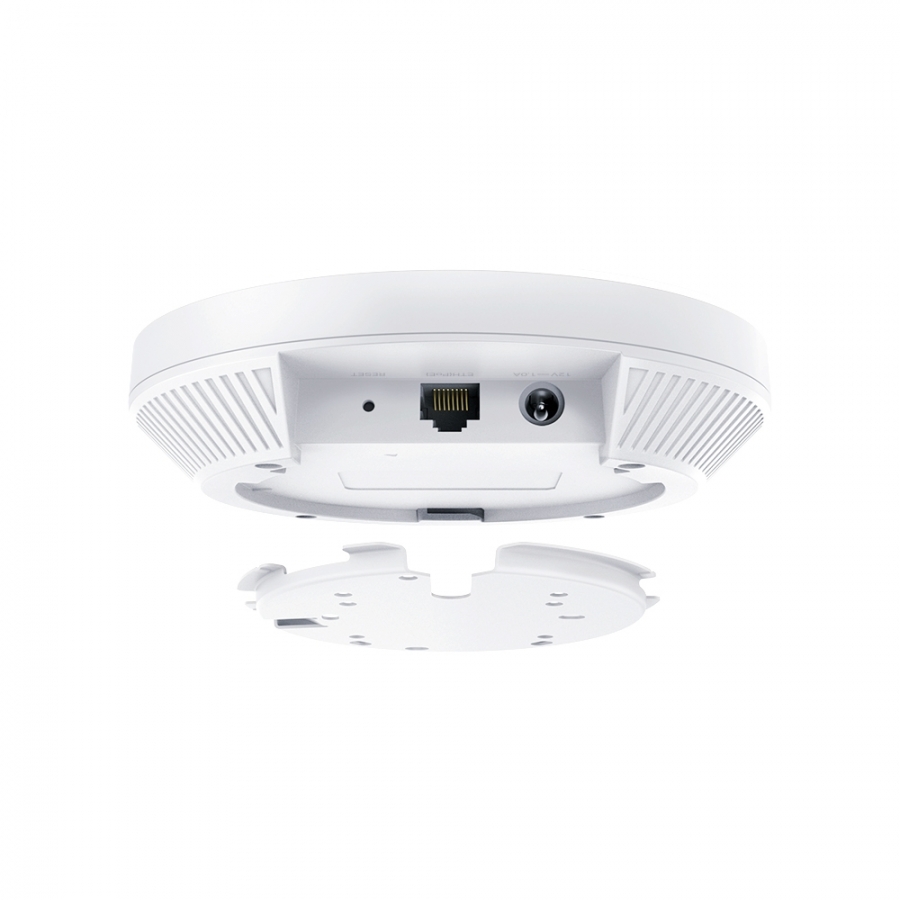

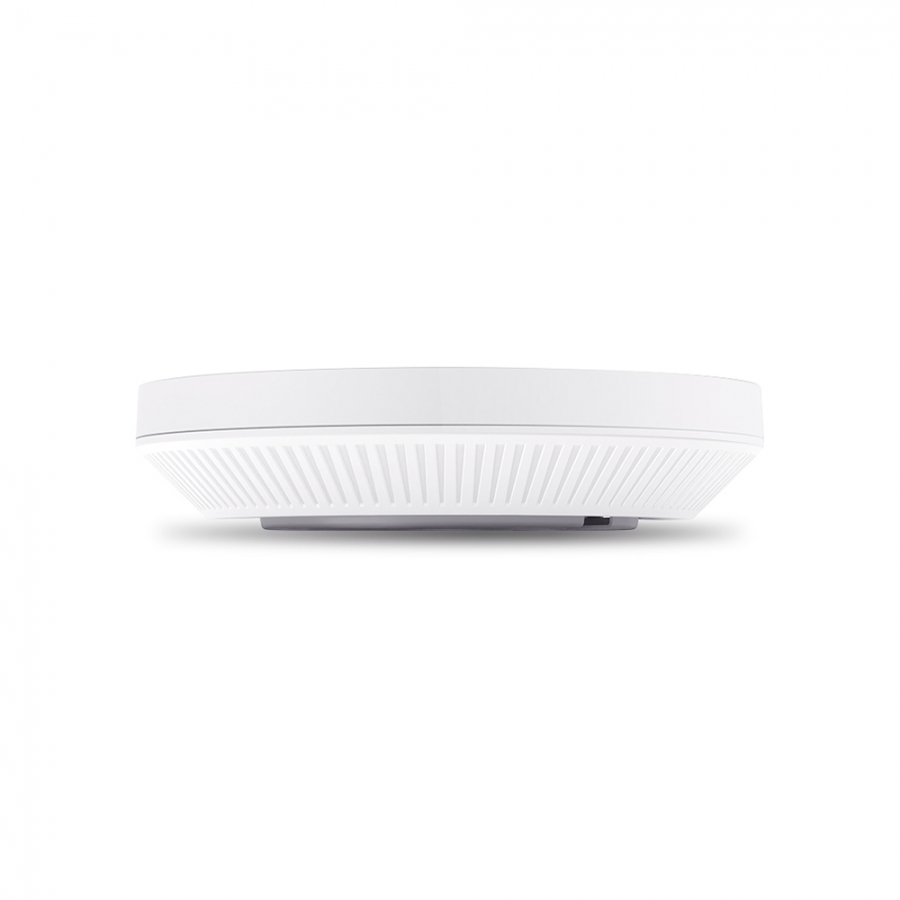

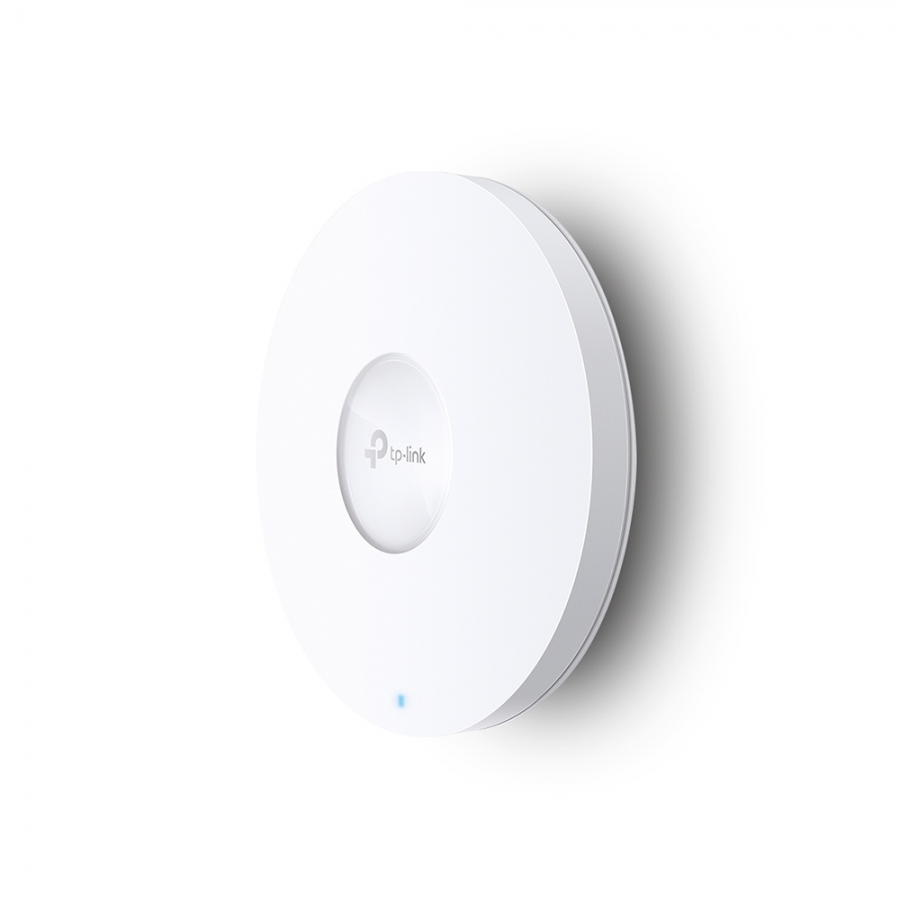

WL-AP TP-Link Access Point EAP650 (AX3000)

Manufacturer: TP-LINK

Reference EAP650

Condition: New

More info

The New Slimline Business WiFi 6 AX3000 Ceiling Mount WiFi 6 Access PointAX3000 WiFi 6 Speed 2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz† High-Efficiency WiFi 6 More connected devices can enjoy faster speeds Centralized Cloud Management Manage the whole network locally or from the cloud 160 MHz Channel Double the data at peak transmission times on a single stream with HE160‡ Auto Channel Selection and Power Adjustment* Optimize overall performance by reducing WiFi interference Omada Mesh Technology More flexible and convenient wireless deployment Seamless Roaming Uninterrupted streaming when moving between APsUltra-Slim Design Φ160 mm × 33.6 mm elegant design brings more agilityPoE+ Powered Supports both DC (adapter included) and 802.3at PoE+ for flexible installationsSeamless Integration into Omada SDN The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.Auto Channel Selection and Power Adjustment to Optimize Overall Performance Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.Easy Deployment & Higher Performance by Omada Mesh Easy Pairing, Less Wiring With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.Optimized Network Performance Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.Always Stay Smooth with Fast Roaming Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.Ultra-Slim Design Brings More Agility Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.

2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	2976 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Modulation	1024-QAM, OFDM
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Rate limiting	Y
Wireless isolation	Y
Quality of Service (QoS) support	Y
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP)
Transmitting power (FCC)	<25 dBm (2.4 GHz) <25 dBm (5 GHz)
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
MAC address filtering	Y
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Access Control List (ACL)	Y
Web-based management	Y
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE)	Y
Output voltage	12 V
Output current	1 A
Placement	Ceiling, Wall
Product colour	White
LED indicators	Y
Certification	CE, FCC, RoHS
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
Width	160 mm
Depth	160 mm
Height	33.6 mm
Number of products included	1 pc(s)
AC adapter included	Y
Quick start guide	Y
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Harmonized System (HS) code	85176990
