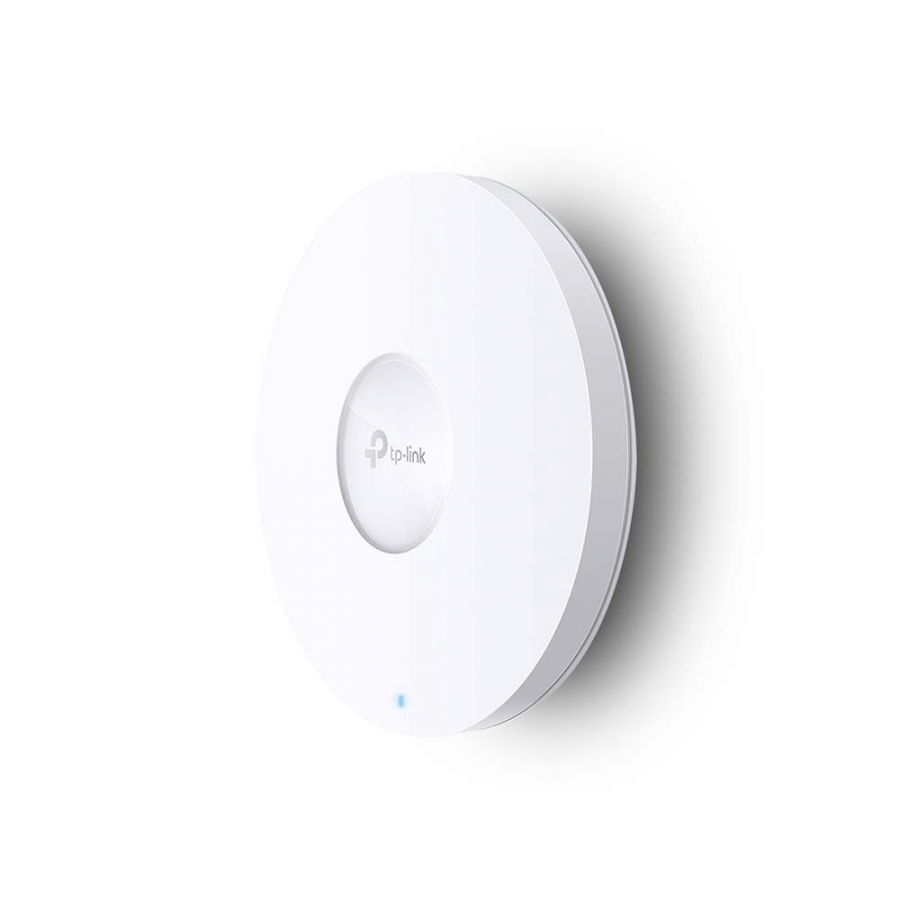

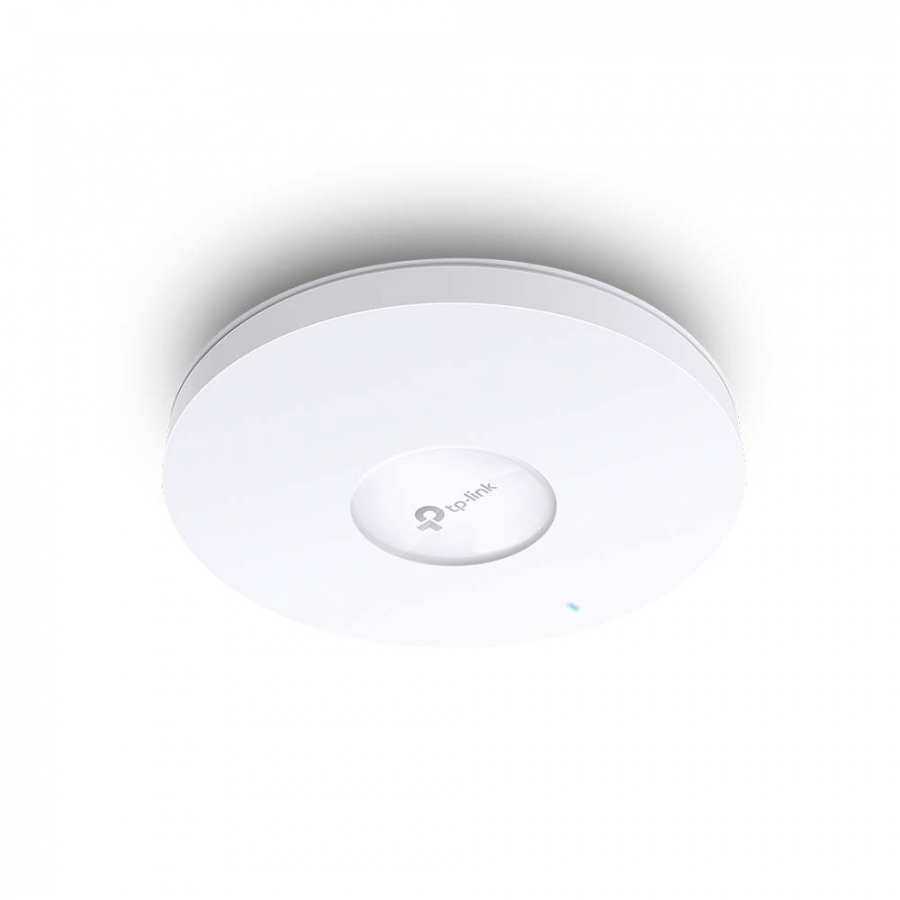

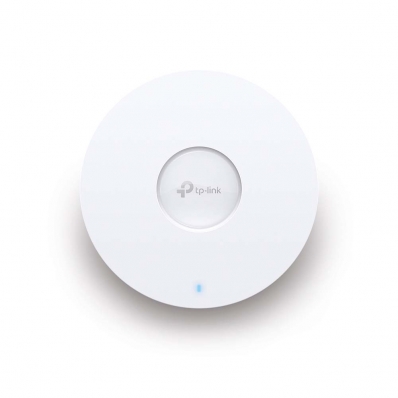

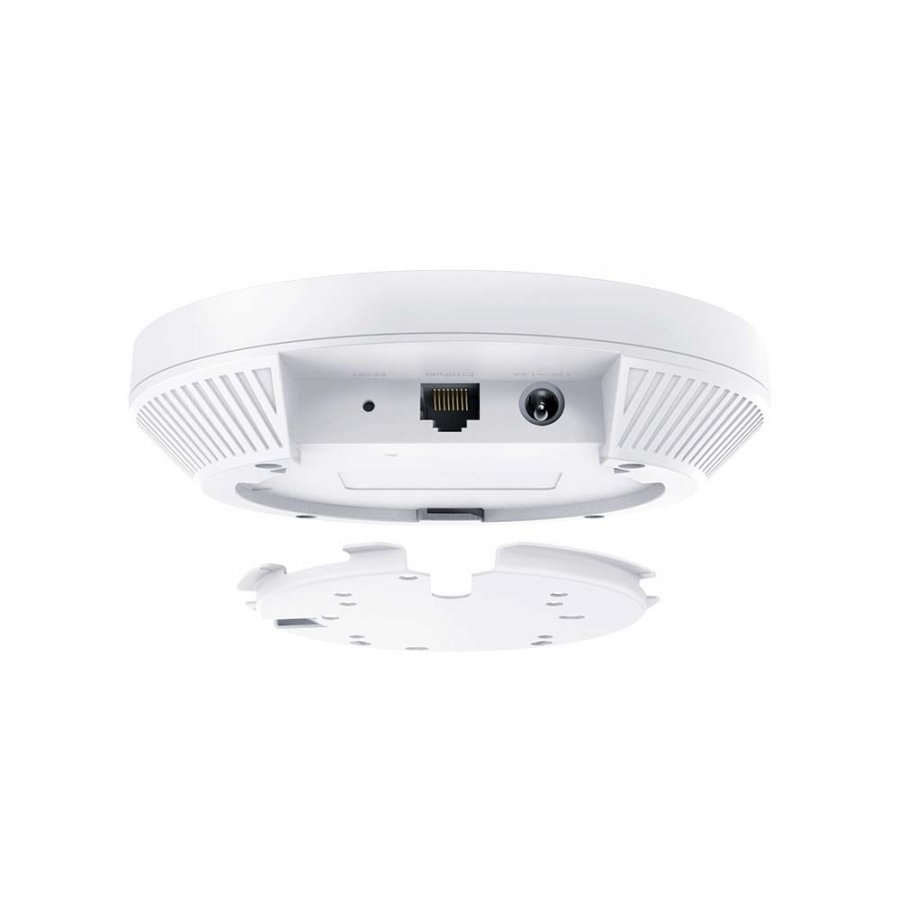

TP-Link WL-AP Access Point EAP613 (AX1800)

Manufacturer: TP-LINK

Reference EAP613

Condition: New

More info

Easily Upgrade to Business WiFi 6 Network
AX1800 Ceiling Mount WiFi 6 Access Point

Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.

2.4 GHz	Jā
5 GHz	Jā
6 GHz	Nē
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection	Jā
Automatic channel scanning	Jā
MIMO	Jā
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Virtual LAN features	SSID-based VLAN assignment
Rate limiting	Jā
Adaptive bandwidth management	Jā
Band steering	Jā
Airtime Fairness (ATF)	Jā
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)
Transmitting power (FCC)	<25 dBm (2.4 GHz); <25 dBm (5 GHz)
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
Number of SSID supported	16
Web-based management	Jā
Management platform	Omada
Ethernet LAN (RJ-45) ports	1
DC-in jack	Jā
Power over Ethernet (PoE)	Jā
Placement	Ceiling, Wall
Product colour	White
Reset button	Jā
LED indicators	Jā
Certification	CE, FCC, RoHS
Antenna type	Internal
Antenna direction type	Omni-directional
Antennas quantity	4
Antenna gain level (max)	5 dBi
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Width	160 mm
Depth	160 mm
Height	33.6 mm
Number of products included	1 pc(s)
Operating relative humidity (H-H)	0 - 40%
Operating temperature (T-T)	10 - 90 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
