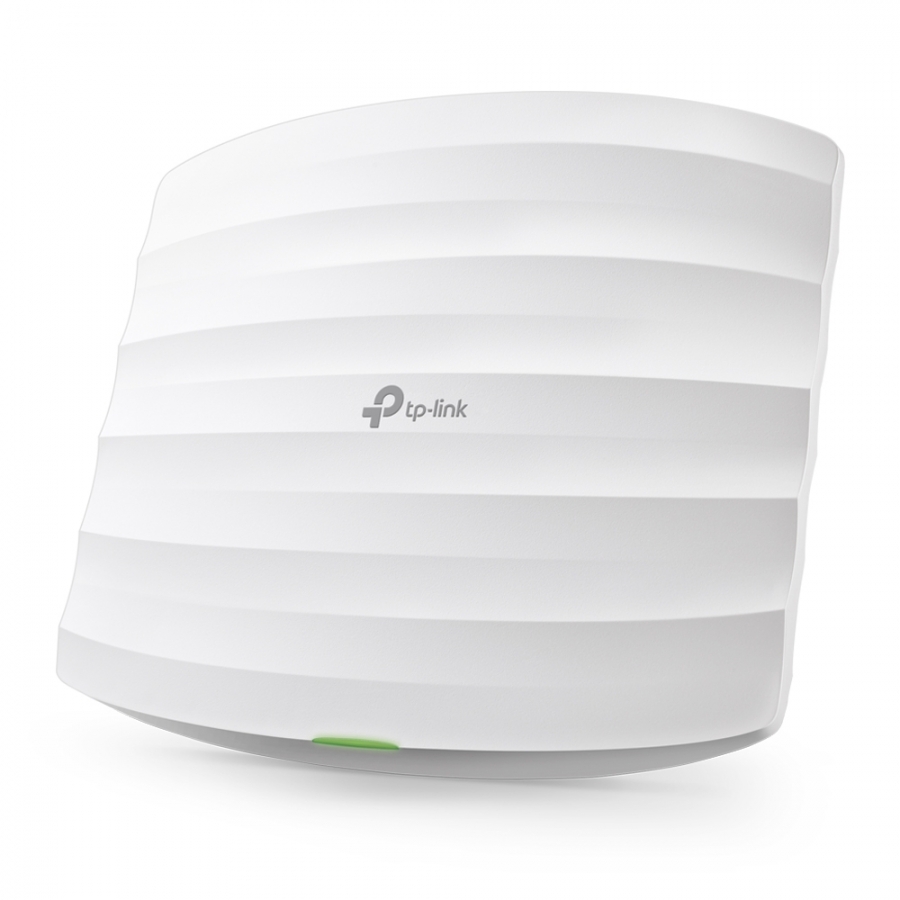

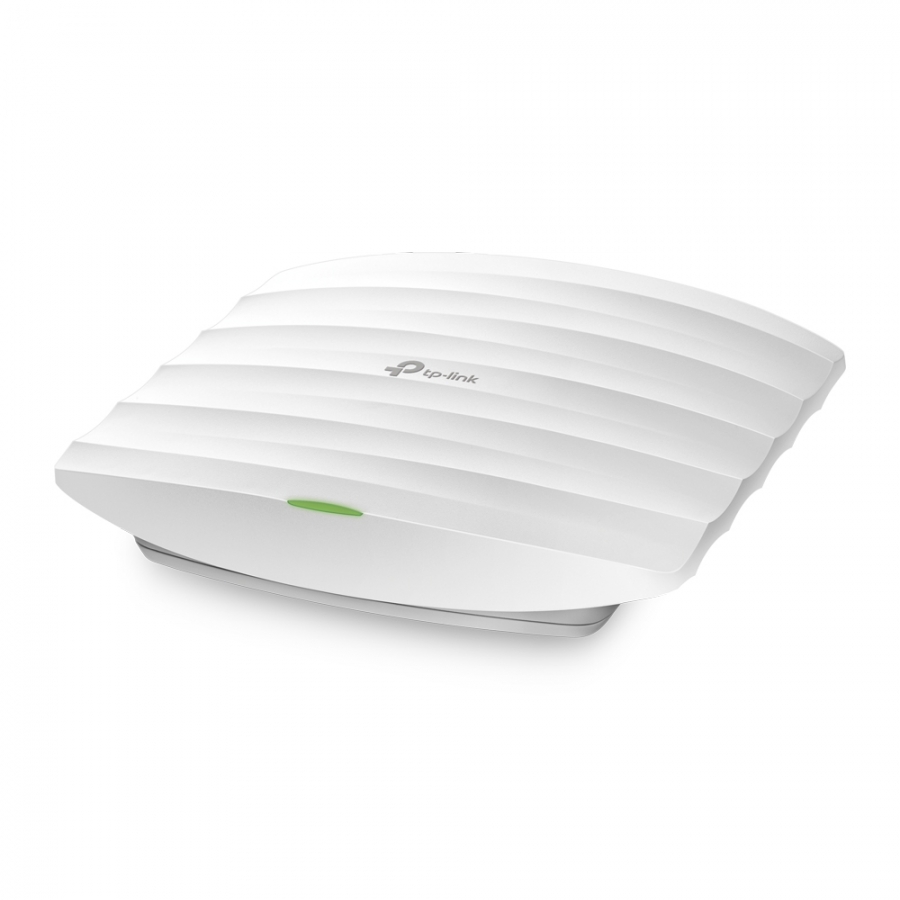

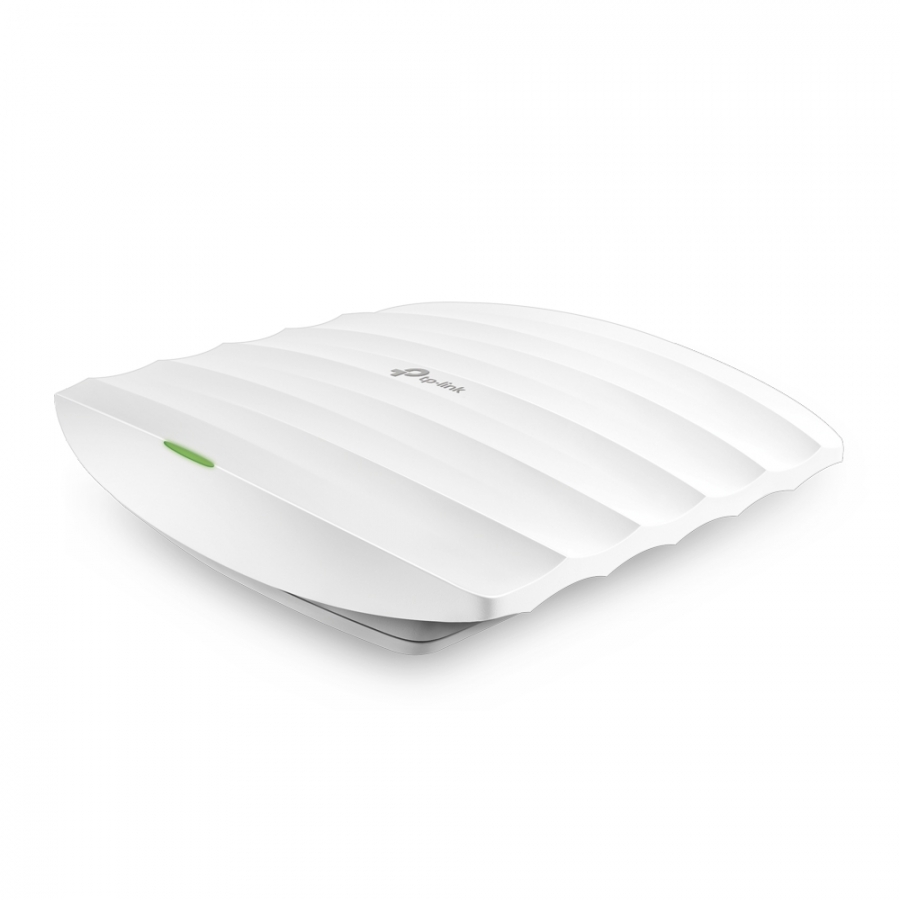

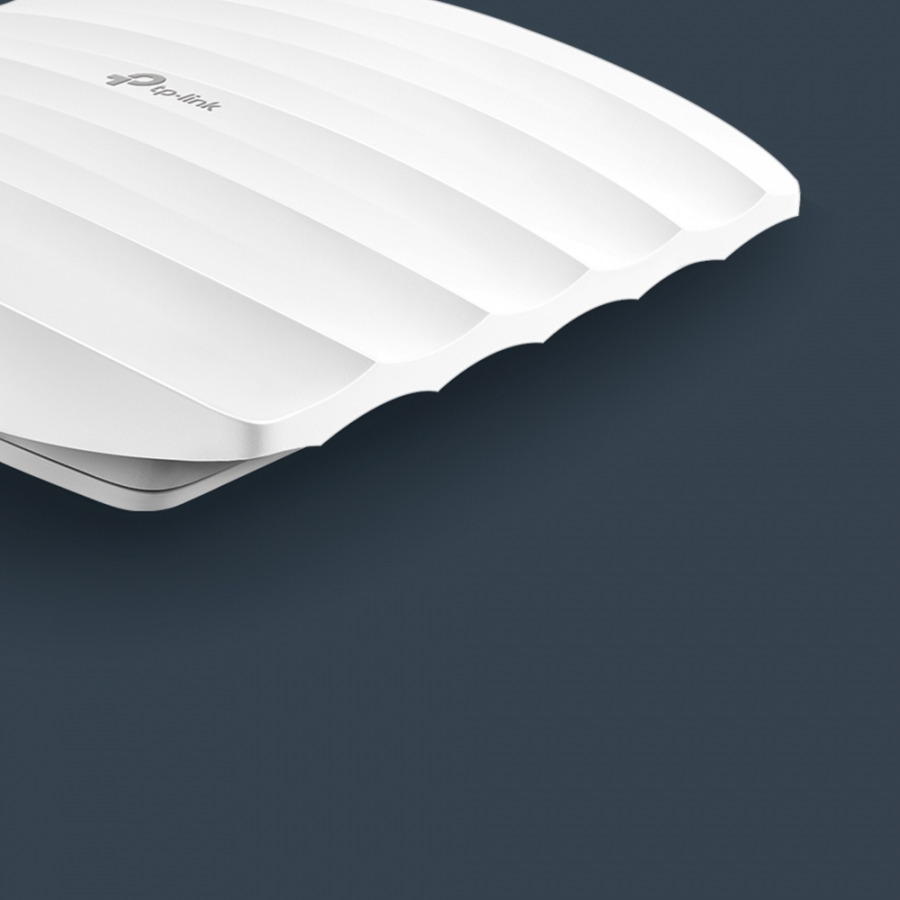

TP-Link WL-AP Access Point EAP110 (300MBit/POE)

Manufacturer: TP-LINK

Reference EAP110

Condition: New

More info

Flexible Placement
Easy mounting design & PoE
The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Cloud Centralized Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Captive Portal
Guest Network with Facebook and SMS Support
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

2.4 GHz	Jā
5 GHz	Nē
6 GHz	Nē
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Cabling technology	10/100Base-T(X)
Wi-Fi Multimedia (WMM)/(WME)	Jā
VLAN support	Jā
Virtual LAN features	VLAN mapping
Rate limiting	Jā
Wireless isolation	Jā
Quality of Service (QoS) support	Jā
Transmitting power (CE)	19 dBm
Transmitting power (FCC)	21 dBm
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Jā
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Access Control List (ACL)	Jā
Web-based management	Jā
Syslog	Jā

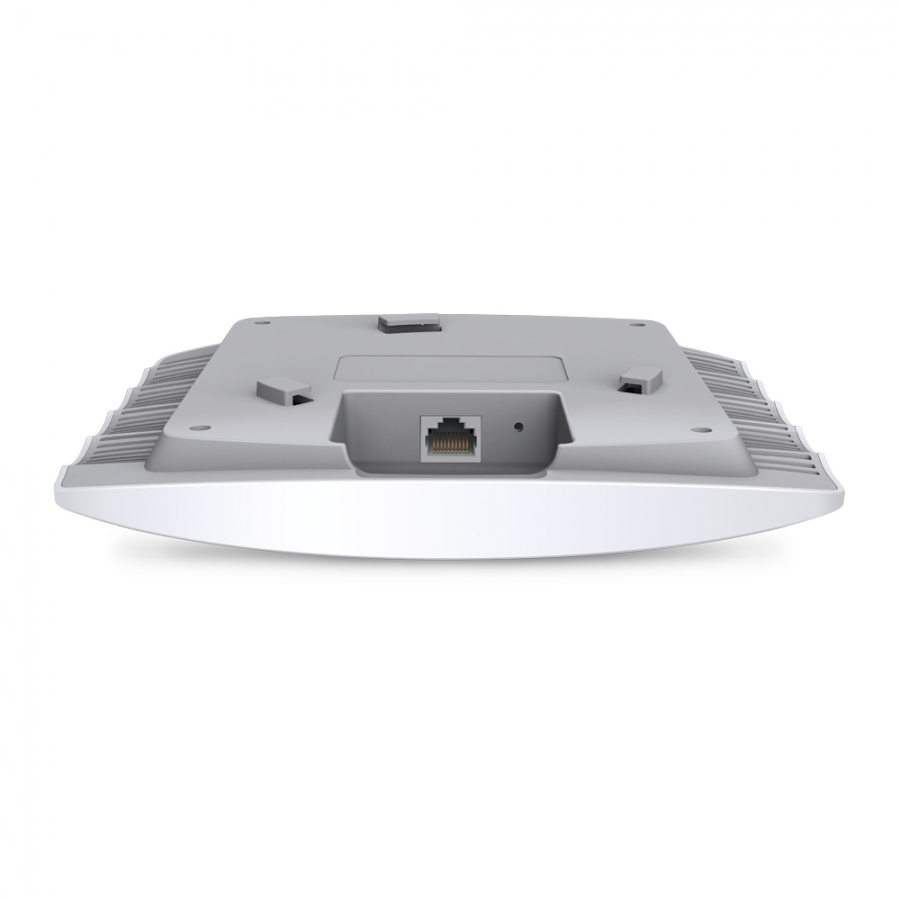

Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE)	Jā
Power over Ethernet (PoE) type supported	Passive PoE
AC input voltage	24 V
Power consumption (typical)	2.8 W
Placement	Ceiling, Wall
Product colour	White
Reset button	Jā
LED indicators	Power
Antenna type	Internal
Antenna direction type	Omni-directional
Antennas quantity	2
Antenna gain level (max)	4 dBi
Width	189.5 mm
Depth	170.5 mm
Height	29.7 mm
Package width	268 mm
Package depth	246 mm
Package height	69 mm
Package weight	720 g
Package type	Box
Number of products included	1 pc(s)
PoE adapter included	Jā
Cables included	AC
Mounting kit	Jā
Quick start guide	Jā
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Sustainability compliance	Jā
Sustainability certificates	Federal Communications Commission (FCC), CE, RoHS
Harmonized System (HS) code	85176990
