New

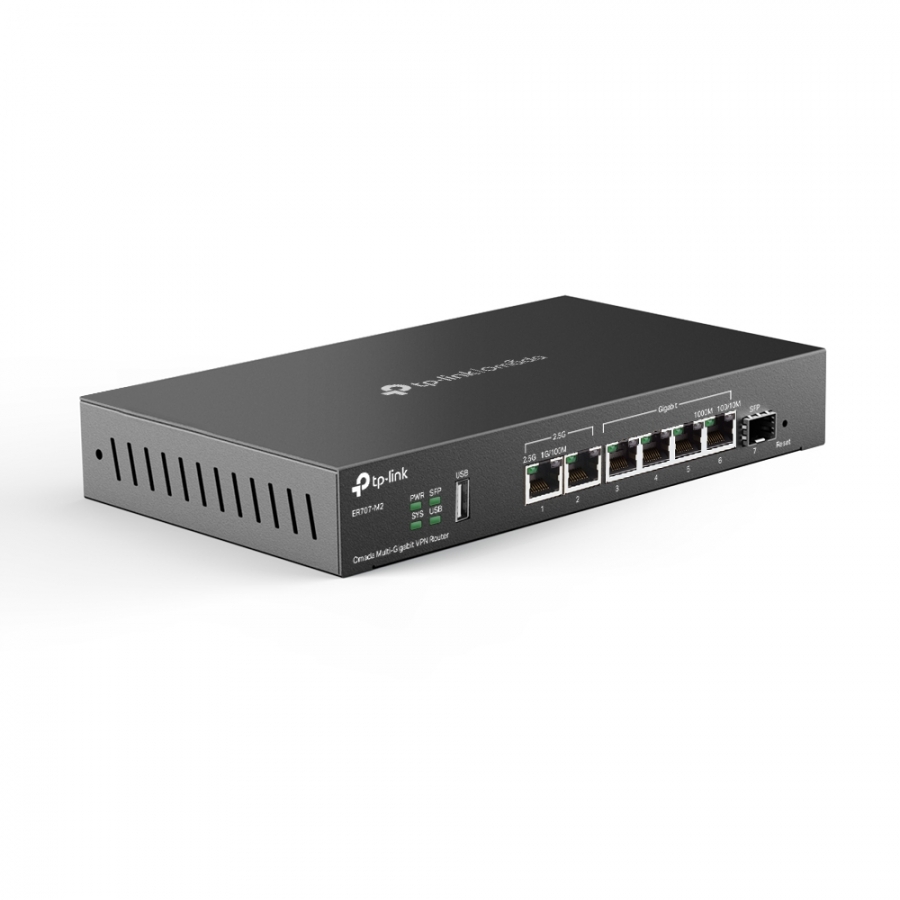

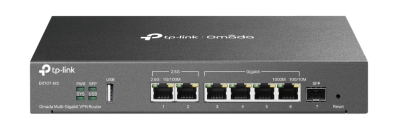

TP-Link WL-Router ER707-M2

Manufacturer: TP-LINK

Reference ER707-M2

Condition: New

More info

Dual 2.5 Gbps Ports, Engineered for Dense Environments
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.

6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.

Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.

High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.* The router also features a built-in hardware engine to boost VPN performance.

Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Omada SDN—The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Ethernet WAN	Jā
SFP WAN	Jā
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Throughput	1.44 Gbit/s
Static route	Jā
VLAN support	Jā
Policy-based routing	Jā
Web-based management	Jā
Universal Plug and Play (UPnP)	Jā
Reset button	Jā
Ethernet LAN (RJ-45) ports	6
WAN/Ethernet LAN ports quantity	6
WAN ports quantity	1
Installed SFP modules quantity	1
USB ports quantity	1
USB version	2.0
DHCP client	Jā
DHCP server	Jā
DMZ support	Jā
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
URL filtering	Jā
ICMP attack prevention	Jā
Access Control List (ACL)	Jā
Network address translation (NAT)	Jā
System event log	Jā
VPN tunnels quantity	66
Sustainability compliance	Jā
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS
Flash memory	128 MB
Internal memory	1000 MB
Internal memory type	DDR4
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	Jā
Linux operating systems supported	Jā
Product colour	Black
Housing material	Steel
Wall mountable	Jā
LED indicators	LAN, Link, Power, Speed, System, USB, WAN
Power source type	DC
Output voltage	12 V
Output current	1.5 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	226 mm
Depth	131 mm
Height	35 mm
AC adapter included	Jā
Quick installation guide	Jā
Package width	242 mm
Package depth	323 mm
Package height	73 mm
Package weight	1.1 kg
