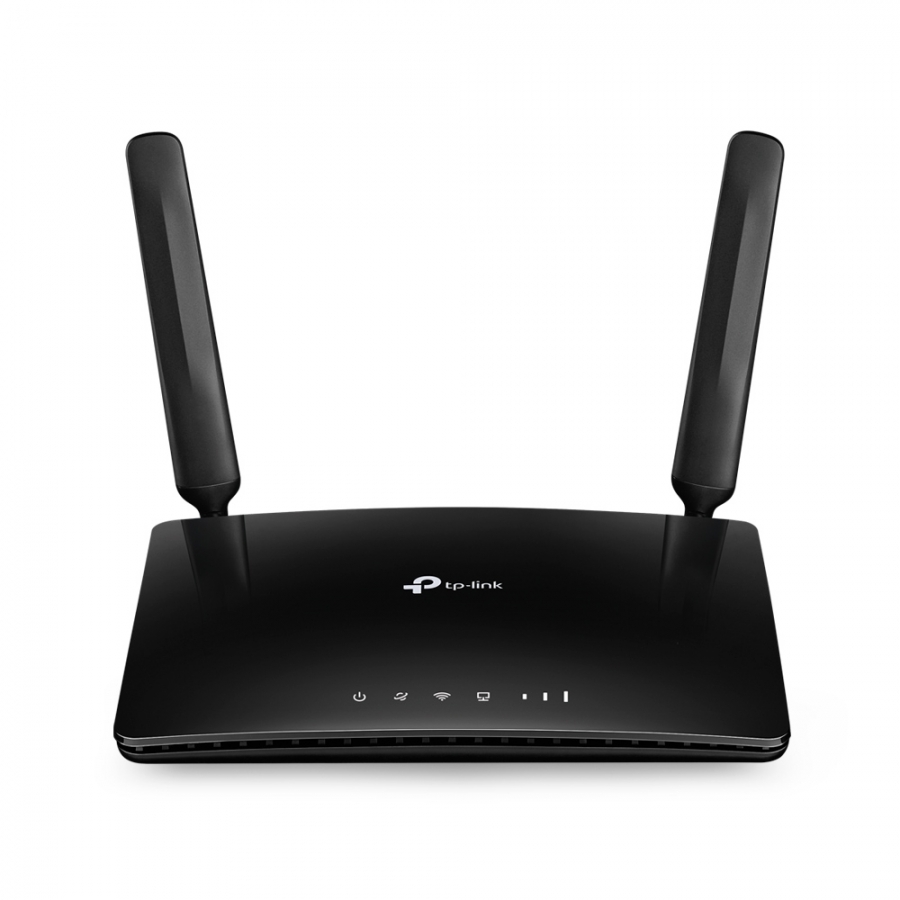

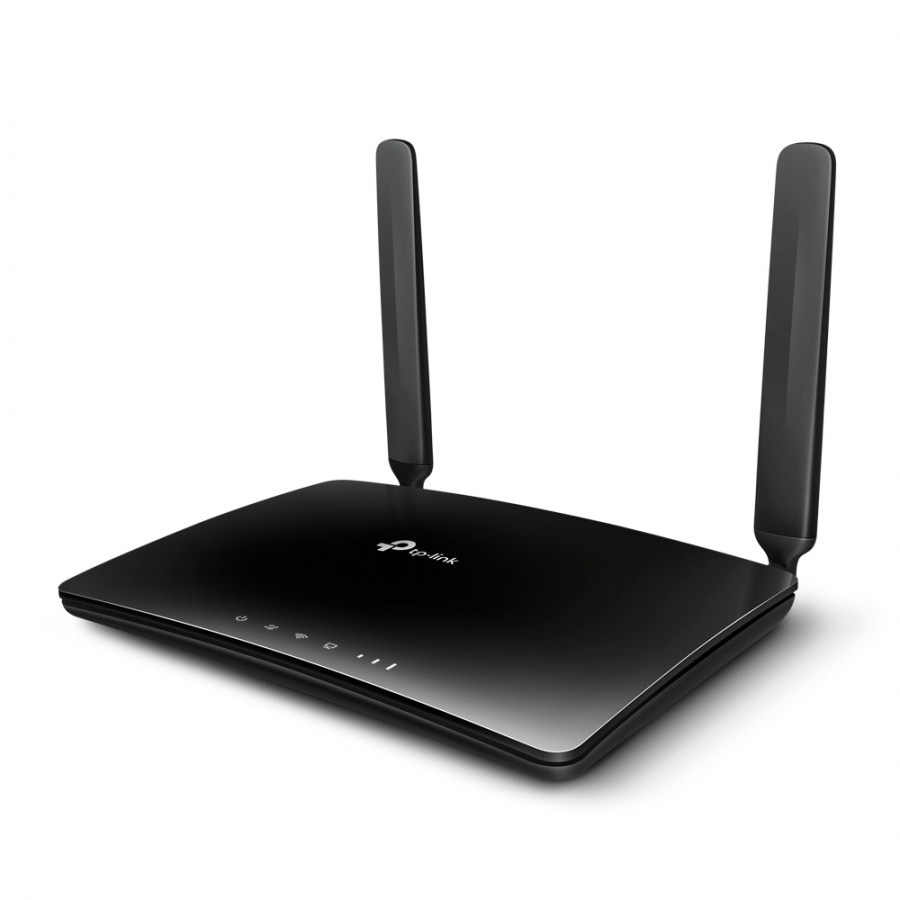

TP-Link WL-Router Archer MR400 (AC1200/4G-LTE Modem)

TP-LINK

ARCHER MR400

New

4G LTE with AC1200 Wi-Fi to Stream from Everywhere
AC1200 Wireless Dual Band 4G LTE Router
Archer MR400

Got SIM Card?
Then Plug and Play!

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remote.

Internet Access for
up to 64 Devices Simultaneously

Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

Easy Setup and Management
Set up the Archer MR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
WAN connection typeRJ-45
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)867 Mbit/s
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)450 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s
Ethernet LAN
Ethernet LAN interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding
Dynamic DNS (DDNS)
VPN serverPPTP VPN, IPSec VPN , OpenVPN
VPN tunnels quantity10
VPN Passthrough
VPN supportPPTP, L2TP, IPSec
Receiver sensitivity5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm
Mobile network generation4G
3G
4G
2G standardsEdge, GPRS, GSM
3G standardsDC-HSPA+, HSPA, HSPA+, UMTS
4G standardLTE
GSM bands supported850,900,1800,1900 MHz
UMTS bands supported900,2100 MHz
4G bands supported800,900,1800,2100,2600 MHz
SIM card typeMicroSIM

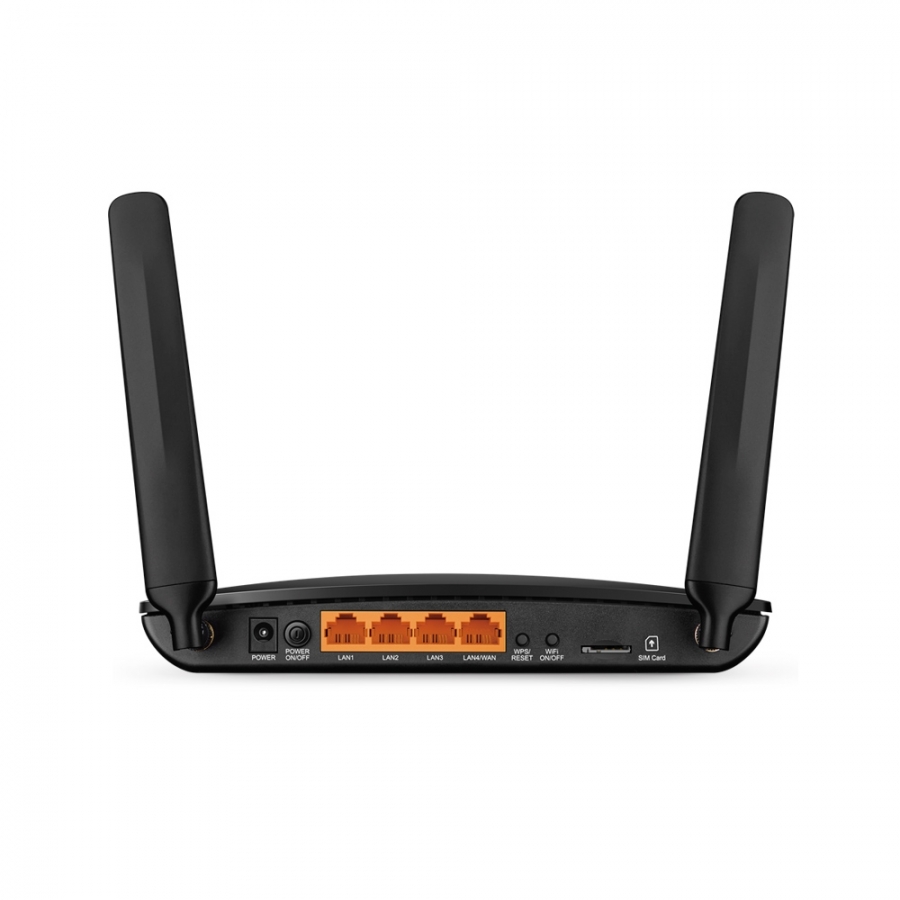

Ethernet LAN (RJ-45) ports3
USB port
Memory card slot(s)
DC-in jack
Web-based management
Quality of Service (QoS) support
Reset button
WPS push button
Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall
Firewall securityDoS, SPI Firewall, IP and MAC Address Binding
Guest access
Access Control List (ACL)
Stateful Packet Inspection (SPI)
DoS attack prevention
DMZ support
DHCP client
DHCP server
Universal Plug and Play (UPnP)
Supported network protocolsIPv4, IPv6
Product typeTabletop router
Product colourBlack
Wall mountable
LED indicatorsLAN, Power, Status, WLAN
On/off switch
CertificationCE, RoHS
Cables includedLAN (RJ-45)
AC adapter included
Quick installation guide
Antenna designInternal & external
Antennas quantity2
Detachable antenna(s)
Transmit powerCE: <20dBm(2.4GHz), <23dBm(5GHz)
Power source typeDC
Output voltage12 V
Output current1.5 A
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Windows operating systems supportedWindows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported
Mac operating systems supportedmacOS
Mac compatibility
Width174 mm
Depth124.5 mm
Height33.5 mm
Package width307 mm
Package depth223 mm
Package height70 mm
Package weight670 g
Package typeBox
Harmonized System (HS) code85176990

WLAN
