Zyxel WLAN AP WAC500H Wave2 Triple Mode On-Wall AP Ohne Netz

Manufacturer: ZYXEL

Reference WAC500H-EU0101F

Condition: New

More info

Get not only wireless but wired and PoE connectivity, too
The Zyxel WAC500H is designed for per-room deployment scenarios. It turns an Ethernet wall plate into not only a wireless access point to provide WiFi service but also a Gigabit switch with PoE, powering a VoIP phone for last-mile network services.

Featuring NebulaFlexTM Pro, the WAC500H can be managed through a local web management interface, hardware controller, or with a one-year free license on the Nebula cloud management platform.

Versatile mounting options
The versatile yet low-profile mounting design allows the access point to blend seamlessly and tastefully into any decor while mounted directly on an outlet box, in an out-of-the-way location, or even simply on a desktop.

More than WiFi
As well as providing superb WiFi, the WAC500H supports 24/7 wired and PoE connectivity for mobile Point-of-sale (POS) applications for restaurants, bars, and cafés.

Work from home like a Pro!
Supporting the 802.11ac Wave 2 standards, the WAC500H provides fast and reliable connectivity with full support of video conferencing, secure data transfer and seamless connection of multiple devices.

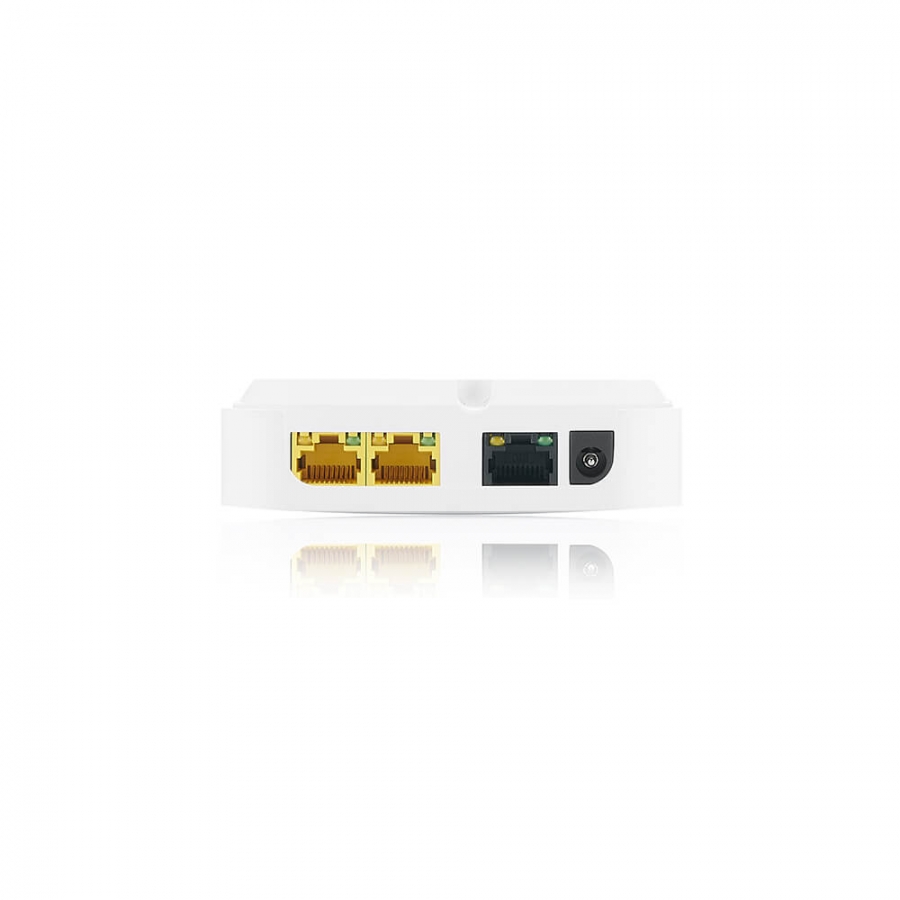

The “RF First” and MU-MIMO technology of WAC500H ensure the high-speed connectivity. And, the two downlink Gigabit Ethernet ports allow an easy connection to a wired printer or powering up a VoIP phone effortlessly.

Most flexible management
The WAC500H features NebulaFlex Pro technology, which allows the AP to be run in three different modes - standalone, controller, or Nebula Cloud Networking platform based on the need of each user. For a straightforward network it can be run in standalone mode, for a complex one that requires advanced features it can be run with an on-premises controller. And, Nebula cloud networking is designed to satisfy all situations with great scalability, feature-rich, and central management.

2.4 GHz	Jā
5 GHz	Jā
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	866 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Channel bandwidth	80 MHz
MIMO	Jā
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Jā
Fast roaming	Jā
VLAN support	Jā
Wireless isolation	Jā
Band steering	Jā
Transmitting power	26 dBmW
Receiver sensitivity	-99 dBm
Security algorithms	EAP, SNMP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3
MAC address filtering	Jā
Auto Wireless Distribution System (WDS)	Jā
Web-based management	Jā
Command-line interface (CLI)	Jā
Ethernet LAN (RJ-45) ports	3
DC-in jack	Jā
Power over Ethernet (PoE)	Jā
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.3 A
Output voltage	12 V
Output current	1 A
Placement	Wall
Product colour	White
Certification	FCC 15C, FCC 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2 FCC 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1; BSMI CNS14336-1
Antenna type	Internal
Antenna gain level (max)	4 dBi
Width	173 mm
Depth	97 mm
Height	29 mm
Weight	223 g
Package width	195 mm
Package depth	120 mm
Package height	53 mm
Package weight	444 g
Number of products included	1 pc(s)
Mounting kit	Jā
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Harmonized System (HS) code	85176990
