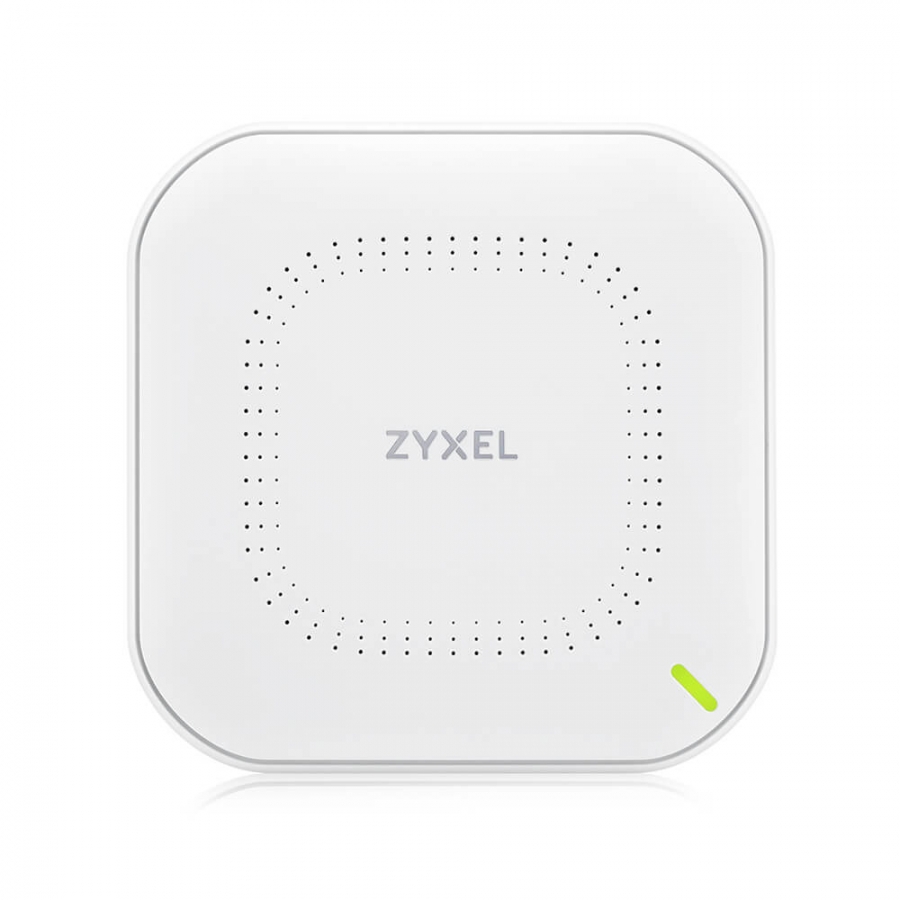

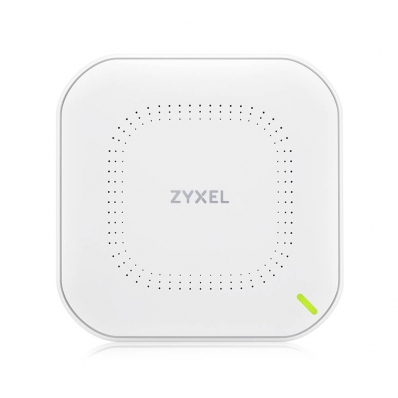

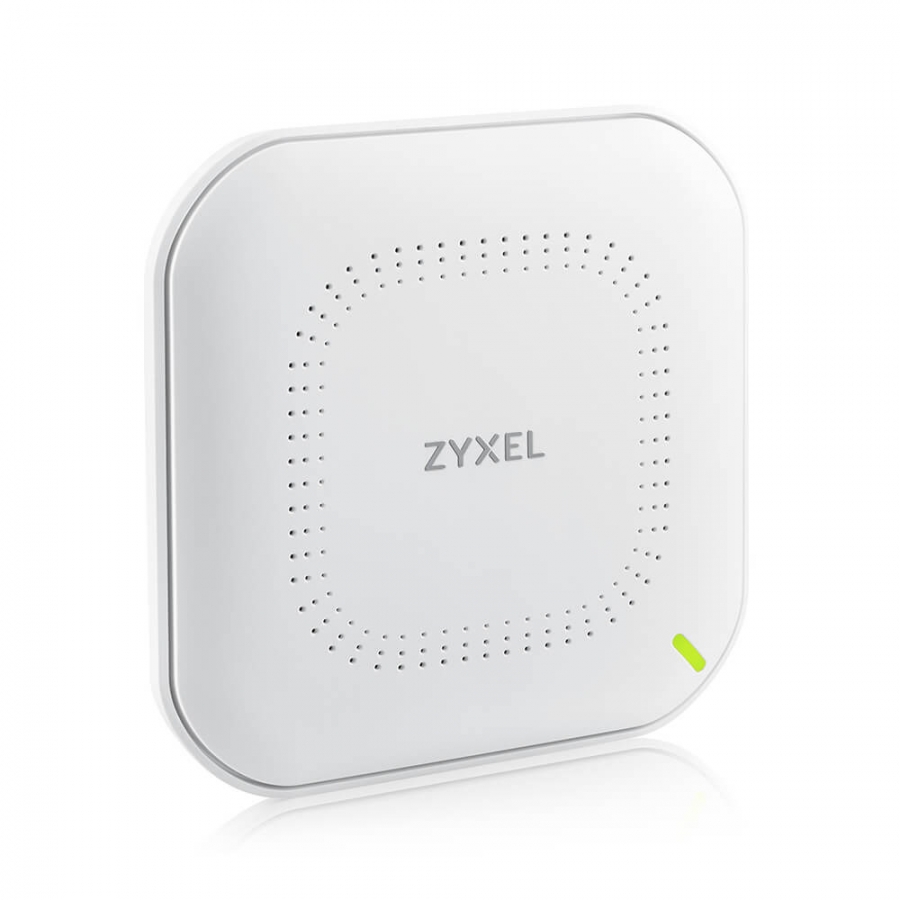

Zyxel NWA90AX Pro 802.11ax Wifi 6 NebulaFlex AccessPoint

Manufacturer: ZYXEL

Reference NWA90AXPRO-EU0102F

Condition: New

More info

Multi-gig WiFi 6 access point for small businesses Zyxel NWA90AX Pro AX3000 Dual-Radio Multi-gig PoE Access Point with secure authentication supportMulti-gig WiFi 6 access point for small businesses Delivering AX3000 WiFi speed with 2.5G Ethernet uplink port, the Zyxel NWA90AX Pro provides the powerful and fastest WiFi 6 speed for small businesses, SoHo, and home offices.Small business owners looking for an affordable WiFi 6 access point with multi-gig connectivity, Zyxel’s NWA90AX Pro is no doubt the ideal choice for them to support more connected devices and applications with the fastest speeds.Boost your WiFi performance To better leverage the faster speeds in 5Ghz band, Zyxel NWA90AX Pro equips with 3x high-gain antennas to boost WiFi signals and extend coverage, especially to previously hard-to-reach areas.In addition to the WiFi boost, NWA90AX Pro also comes with the premium multi-gig Ethernet connections. As it can run on the common-type Cat5e cabling, a 2.5G uplink port breaks through the 1.0G bottleneck without re-cabling, making it easy to create an affordable high-speed network environment for your business or home.Secure authentication to protect business networks With the support of captive portal and IEEE802.1x authentication, the NWA90AX Pro not only offers small business users the enterprise-level security to protect their networks, but also the flexible opportunity to customize wireless network usage login for marketing and business recognition.Set up your wireless network in minutes! No networking expertise required - The NWA90AX Pro is designed to be easily configured and installed in places like small hotels, retail stores, restaurants, or home offices.The simple configuration allows you to set up the network for your customers and employees in minutes. The AP can be managed either with Nebula Cloud networking platform or the device’s local interface. Easy deployment with Zyxel’s Smart Mesh Zyxel’s Smart Mesh technology automatically forms dynamic wireless links between access points and mitigates the complex, inconvenient cabling for WiFi deployment.The Smart Mesh technology can save you from extra wiring by enabling the wireless connectivity between APs for extended range and flexible deployment.Manage it your way! The NWA90AX Pro with NebulaFlex offers the flexible manageability for you to freely choose between the device’s local web interface or onboarding to our super easy Nebula cloud management interface that you never need to worry about forgetting the IP address or lost account and password when managing it on cloud.

2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate	2400 Mbit/s
Maximum data transfer rate (2.4 GHz)	575 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
Networking standards	IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
MIMO	Y
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Security algorithms	802.1x RADIUS, EAP, WEP, WPA, WPA2, WPA2-Enterprise, WPA2-PSK, WPA3
MAC address filtering	Y
Management protocols	SNMP
Web-based management	Y
Firmware upgradeable	Y

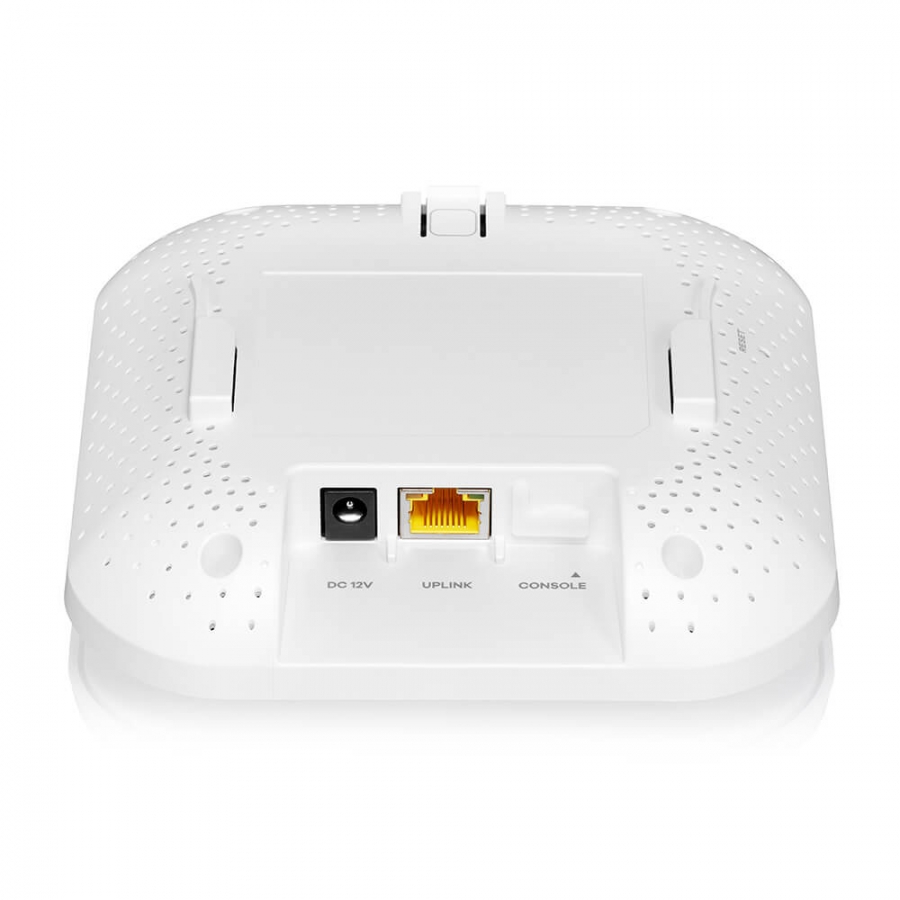

Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power over Ethernet (PoE)	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	0.3 A
Output voltage	12 V
Output current	2 A
Placement	Ceiling
Product colour	White
LED indicators	Y
Antenna type	Internal
Antenna features	Integrated antenna
Antenna gain level (max)	4 dBi
Width	140 mm
Depth	140 mm
Height	37.5 mm
Weight	352 g
Package width	240 mm
Package depth	155 mm
Package height	60 mm
Package weight	668 g
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
