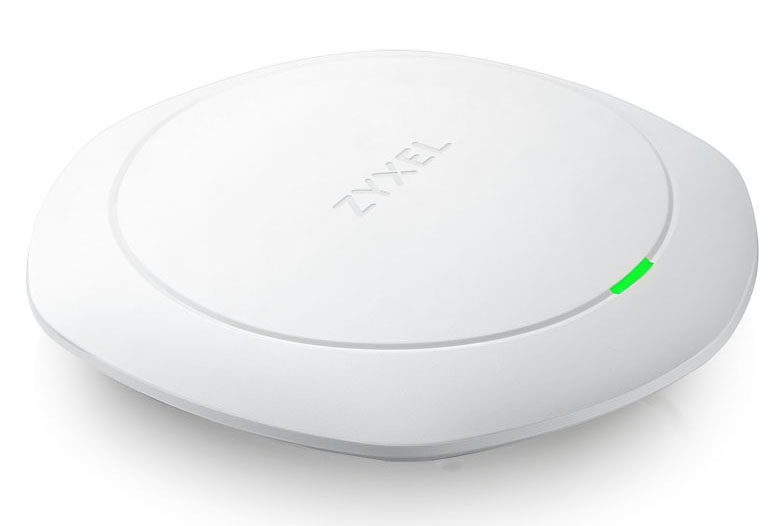

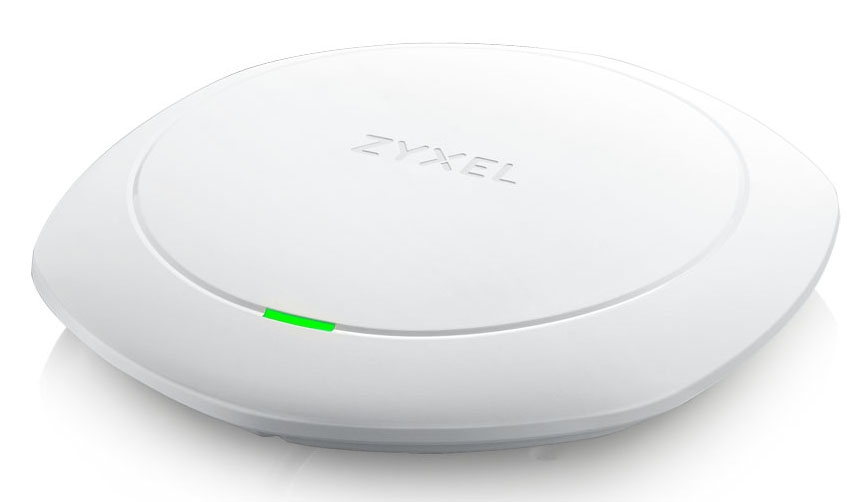

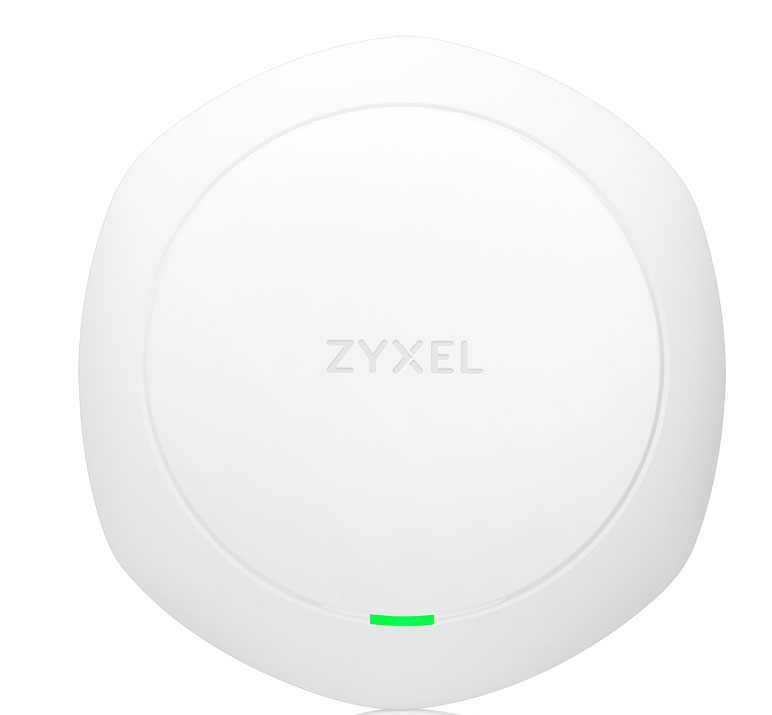

ZyXEL WL AP NWA5123-AC HD 802.11ac Wave 2 Dual-Radio U

ZYXEL

NWA5123-ACHD-EU0101F

New

The Zyxel NWA5123-AC HD is a Wave 2 dual-radio 3x3 MU-MIMO Unified Access Point with a combined data rate of up to 1.6Gbps. Thanks to its superior hardware design with next generation beamforming technology and advanced noise suppression, the NWA5123-AC HD delivers increased coverage and improved connection speeds for every client. The high-performance NWA5123-AC HD is future-proof for the ever-growing mobility demands in high-density environments such as campuses and hotels.MU-MIMO, New Definition of Wi-Fi Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.Next Generation Transmit Beamforming benefits overall networking Transmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients.Built for Superior performance The NWA5123-AC HD is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.Optimized wireless experience with advanced features To provide outstanding performance in crowded environment, NWA5123-AC HD features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.Unified access point- Fits all businesses Stay standalone mode if you’re a start-up, needing just few APs; convert to controller-managed mode when business grows up, requiring hundreds of APs.

2.4 GHzY
5 GHzY
Maximum data transfer rate1300 Mbit/s
Wi-Fi data rate (max)1300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Throughput data rate1600 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Channel bandwidth80 MHz
MIMOY
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK
Wi-Fi Multimedia (WMM) featuresWMM power saving
VLAN supportY
Maximal-Ratio Combining (MRC)Y
Maximum Likelihood Detection (MLD)Y
Cyclic Delay Diversity (CDD)Y
Quality of Service (QoS) supportY
Receiver sensitivity-103 dBm
Security algorithms802.1x RADIUS, EAP, LEAP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
MAC address filteringY
Number of SSID supported16
Access Control List (ACL)Y
DHCP clientY
Management protocolsSNMP v2c/v3
Switch typeManaged
Batch upgradeY
Firmware upgradeableY

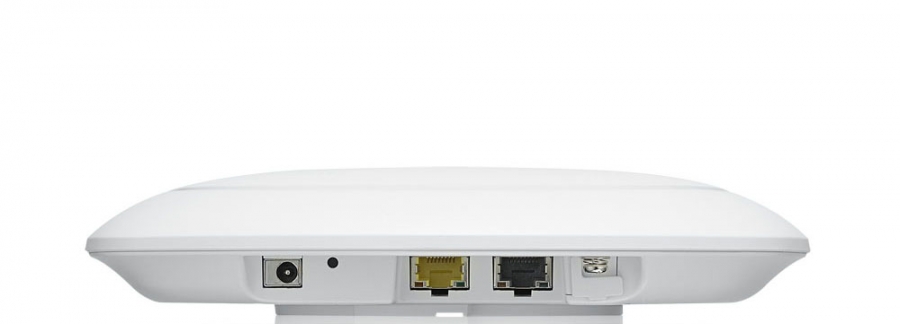

Ethernet LAN (RJ-45) ports2
RS-232 interfaceY
DC-in jackY
Power over Ethernet (PoE)Y
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage12 V
Output current2 A
Power consumption (typical)15.5 W
PlacementCeiling, Wall
Product colourWhite
Cable lock slotY
Cable lock slot typeKensington
InternalN
Antenna gain level (max)3 dBi
Width211 mm
Depth223 mm
Height39 mm
Weight750 g
Package width251 mm
Package depth247 mm
Package height55 mm
Package weight990 g
AC adapter includedN
Mounting kitY
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)10 - 90%
Harmonized System (HS) code85176990
