| Antenna gain level (max) | 15 dBi |
| Frequency band | 5.1 ~ 5.9 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 22° |
| Vertical beam width | 15° |
| Antenna type | Directional antenna |

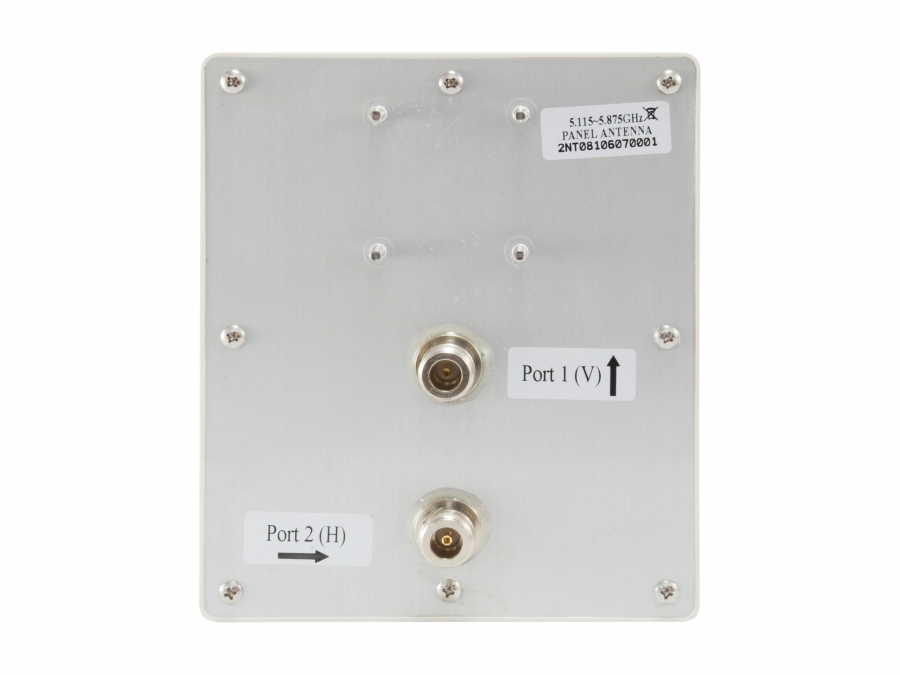

| Antenna connector type | N-type |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Protection features | Dust resistant, Snow resistant, Water resistant |
| Survival wind speed | 180 km/h |
| Purpose | Indoor & outdoor |
| Maximum cable loss with connectors | -10 dB |
| Country of origin | Taiwan |
| Product colour | Grey |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 137.5 mm |
| Depth | 162.5 mm |
| Height | 16 mm |
| Weight | 208 g |
| Package width | 161 mm |
| Package depth | 218 mm |
| Package height | 74 mm |
| Package weight | 726 g |
| Mounting kit | Y |
| Quick installation guide | Y |
| Package type | Box |
| Harmonized System (HS) code | 85177100 |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 340 mm |
| Master (outer) case gross weight | 15.5 kg |
| Products per master (outer) case | 20 pc(s) |
