| Video input channels | 16 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Alarm input channels | 4 |
| Alarm output channels | 8 |
| Number of users | 128 user(s) |
| Video formats supported | H.264, H.264+, H.265, MPEG4 |
| Operating system installed | Embedded LINUX |
| Throughput data rate | 256 Mbit/s |
| Maximum storage capacity | 24 TB |
| Number of HDDs supported | 4 |
| HDD size | 3.5" |

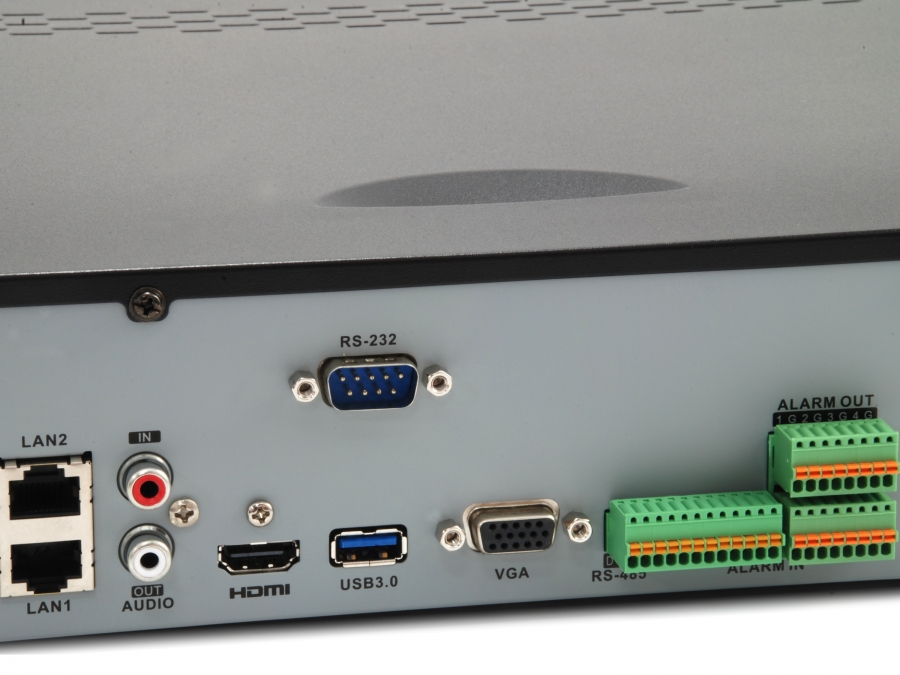

| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| HDMI output | Y |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| RS-485 ports | 1 |
| RS-232 interface | Y |
| Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP |
| LED indicators | Power |
| On/off switch | Y |
| Product colour | Black |
| Country of origin | China |
| Certification | CE, FCC, uL |
| Power consumption (typical) | 20 W |

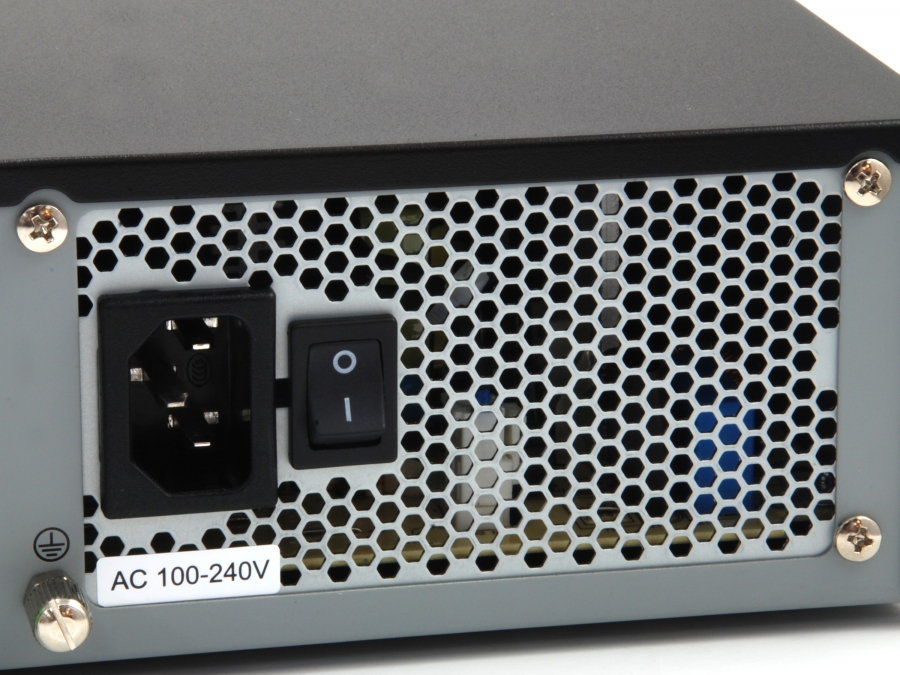

| AC input voltage | 100 - 240 V |
| Browser supported | Internet Explorer 9+ |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 390 mm |
| Depth | 70 mm |
| Height | 445 mm |
| Weight | 5 kg |
| Package width | 502 mm |
| Package depth | 158 mm |
| Package height | 495 mm |
| Package type | Box |
| Package weight | 5.5 kg |
| Cables included | AC |
| CD manual | Y |
| Master (outer) case width | 523 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 522 mm |
| Master (outer) case gross weight | 6 kg |
| Products per master (outer) case | 1 pc(s) |
