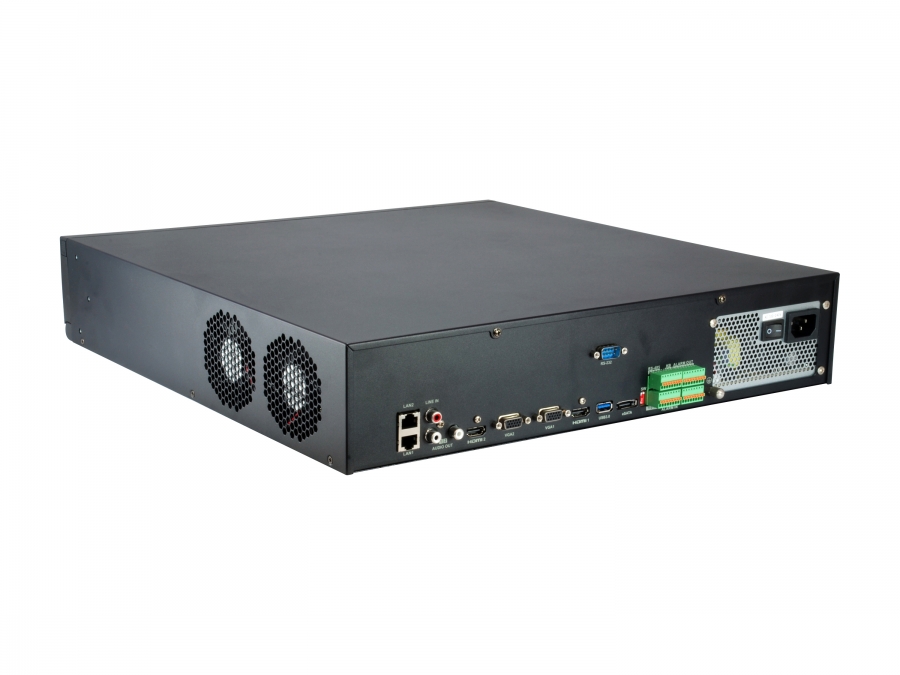

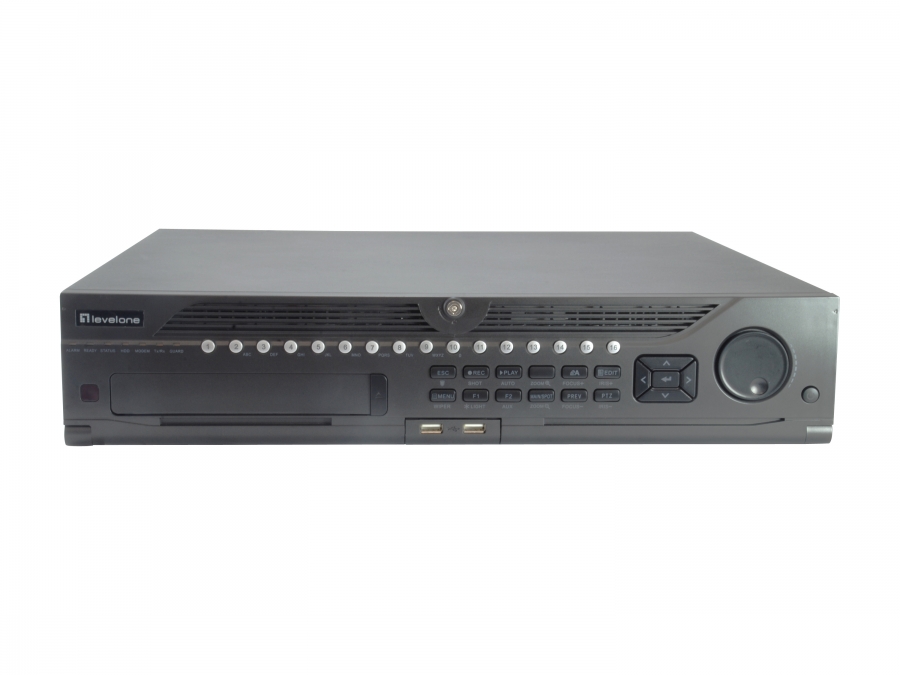

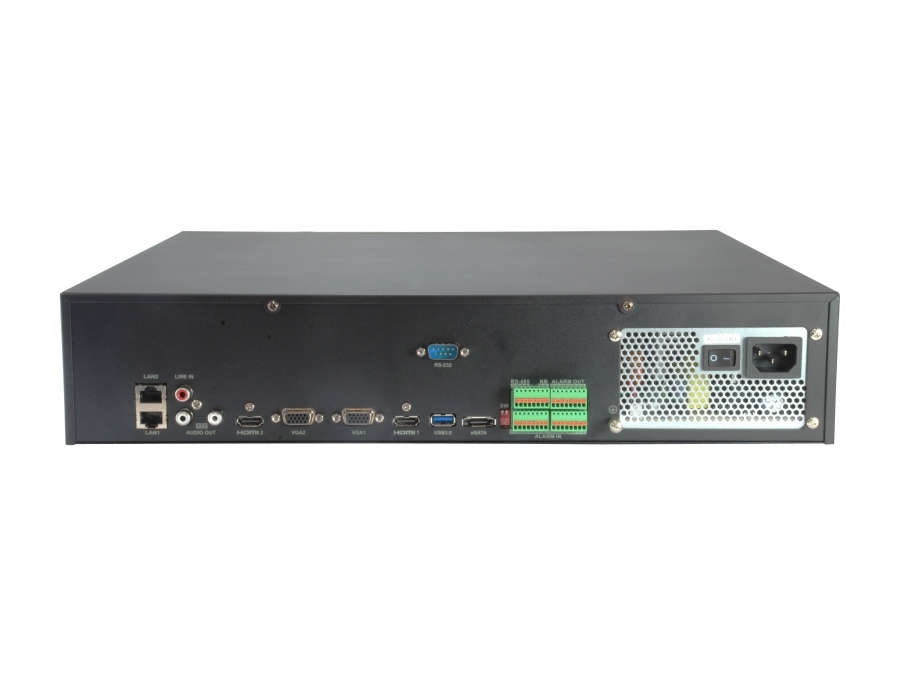

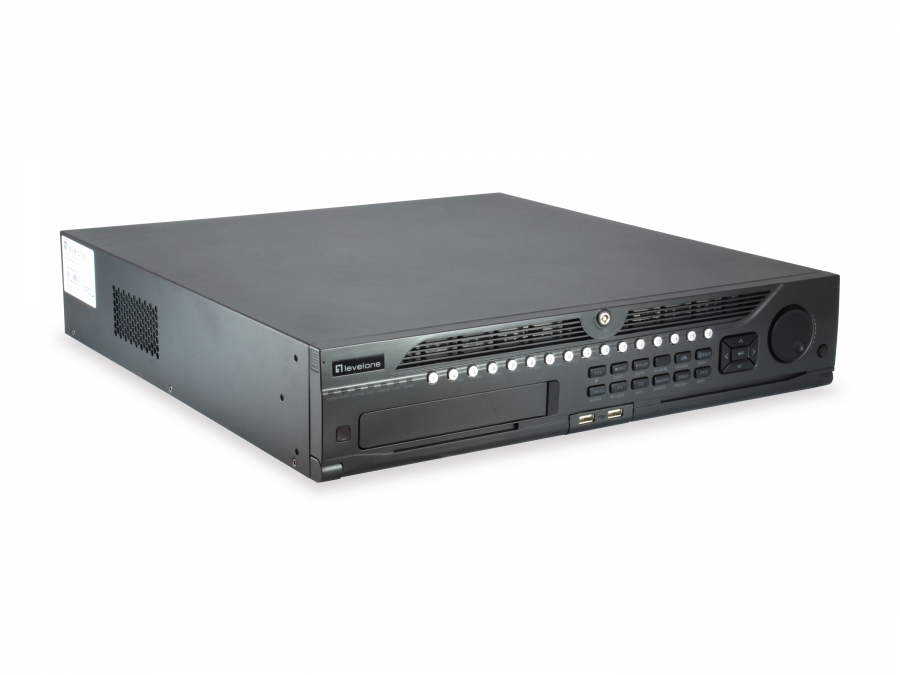

Level One LevelOne Netzwerk-Videorekorder GEMINI 32-Kanal HDMI VGA

LEVEL ONE

NVR-0732

New



Video input channels32 channels
Maximum resolution3840 x 2160 pixels
Video recording modes720p, 1080p
Number of users128 user(s)
Video formats supportedH.264, H.264+, H.265
Operating system installedEmbedded LINUX
Throughput data rate320 Mbit/s
Wi-FiN
Maximum storage capacity48 TB
HDD interfaceSerial ATA
Number of HDDs supported8
RAID supportY
RAID levels0, 1, 5, 10
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity2
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
RS-232 interfaceY
eSATAY
Line-inY
Audio output2 x RCA
Supported network protocolsTCP, UDP, IPv4, IPv6, Http, Https, SMTP, NTP, SNTP
Rack mountingY
LED indicatorsPower
Product colourBlack
Country of originChina
CertificationCF/FCC,UL,ISO 9001
Power consumption (max)200 W
Power consumption (typical)30 W
AC input voltage100 - 240 V
Browser supportedIE 9.0+
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Sustainability certificatesRoHS
Width470 mm
Depth90 mm
Height445 mm
Weight10 kg
Package width510 mm
Package depth110 mm
Package height450 mm
Package typeBox
Package weight12 kg
Remote control includedY
Cables includedAC
CD manualY
Master (outer) case width520 mm
Master (outer) case length180 mm
Master (outer) case height510 mm
Master (outer) case gross weight12.7 kg
Products per master (outer) case1 pc(s)
