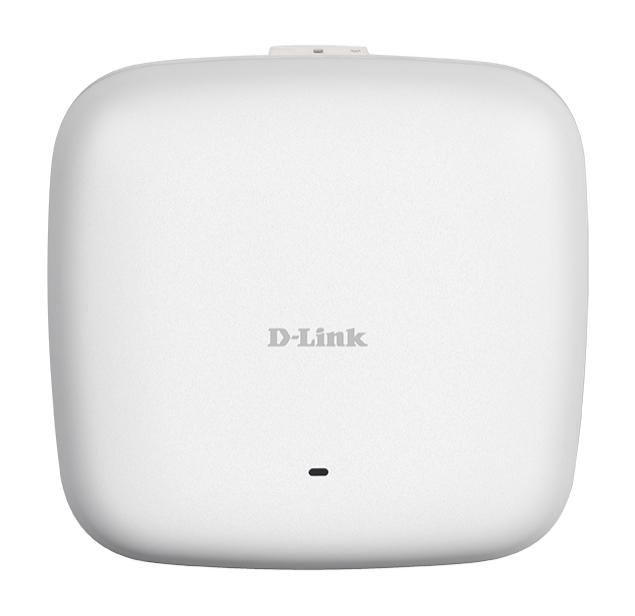

D-Link DAP-2680 W-LAN AC AccessP. PoE Dualb. o.N. 1300Mbps retail

Manufacturer: D-LINK

Reference DAP-2680

Condition: New

More info

The DAP‑2680 Wireless AC1750 Wave 2 Dual‑Band PoE Access Point features cutting‑edge Wave 2 technology that brings greater speeds, efficiency, and security to your wireless customers. Perfect for small to medium business or enterprise environments.Be the best with Wave 2 Boost your business network to maximum wireless signal rates of up to 450 Mbps over the 2.4 GHz band, and 1300 Mbps over the 5 GHz band.Beamforming with MU‑MIMO Beamforming focuses the Wi-Fi signal to improve both range and connection strength so your clients can enjoy a superior Wi-Fi experience. Built-in Multiple-Input and Multiple-Output (MU-MIMO) technology gets high-bandwidth Wi-Fi signals to multiple devices simultaneously, for faster data distribution and efficiency.The Perfect Fit for Your Network Multiple operational modes allow you to select the DAP-2680 to operate as an access point, a Wireless Distribution System (WDS), a WDS with access point, or a wireless client.Business Quality of Service The Wi-Fi Multimedia (WMM) and Quality of Service (QoS) features make it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2680 to automatically prioritise network traffic. Customised priority rules can be adjusted through the web GUI. AP Load Balancing limits the maximum number of users per access point to ensure maximum performance.Easy‑mount setup It can be ceiling mounted, wall mounted or placed on a desk. Integrated 802.3at Power over Ethernet (PoE) enables the device to be deployed easily and in more areas, where power outlets are not readily available.Corporate‑Class Security Secure your business network with Personal and Enterprise versions WPA2 (802.11i), with support for RADIUS server backend or a built‑in internal RADIUS server. MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling further protect your wireless network. It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. Includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, it supports Network Access Protection (NAP), a feature of Windows Server® 2008 and upwards, allowing network administrators to define multiple levels of network access based on an individual client’s needs.D‑Link WiFiManager Control from a central location up to a thousand access points anywhere in the world, with easy-to-use management controls.Reveal compelling insights into your business network, push out configurations and organise your network so it always runs at optimal performance.Guaranteed round‑the‑cloud tech response, even on weekends & bank holidays Protect your network uptime with optional rapid-response tech support, designed to ensure businesses get the best fit solution for their unique environment. Our warranties and extended service packages reduce downtime, extend the lives of the products, and maximise your up-time by solving technical problems quickly and effectively.

2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	1750 Mbit/s
Frequency band	2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Transmitting power	26.5 dBmW
Security algorithms	64-bit WEP, 128-bit WEP, SNMP, SNMPv3, SSH, SSID, SSL/TLS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
MAC address filtering	Y
Web-based management	Y
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE)	Y
Output voltage	12 V
Output current	2 A
Placement	Table, Wall
Product colour	White
LED indicators	Power, Status
Certification	FCC, UL, CE, FCC, UL
Internal	N
Antennas quantity	3
Antenna gain level (max)	4.2 dBi
Shipping (inner) case length	59.9 cm
Shipping (inner) case width	29.3 cm
Shipping (inner) case height	24 cm
Shipping (inner) case net weight	3.44 kg
Products per shipping (inner) case	5 pc(s)
Pallet gross weight (air)	311.4 kg
Master (outer) cases per pallet (air)	48 pc(s)
Products per pallet (air)	240 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	2.06 m
Pallet gross weight (sea)	311.4 kg
Master (outer) cases per pallet (sea)	48 pc(s)
Products per pallet (sea)	240 pc(s)
Pallet height (sea)	2.06 m
Shipping (inner) case gross weight	6.05 kg
Width	190 mm
Depth	190 mm
Height	44.8 mm
Weight	580 g
Package width	205 mm
Package depth	270 mm
Package height	112 mm
Package weight	1.08 kg
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Harmonized System (HS) code	85176990
