Level One LevelOne WL-AP WAP-6221 300Mbps PoE In-Wandh

Reference WAP-6221

Condition: New

More info

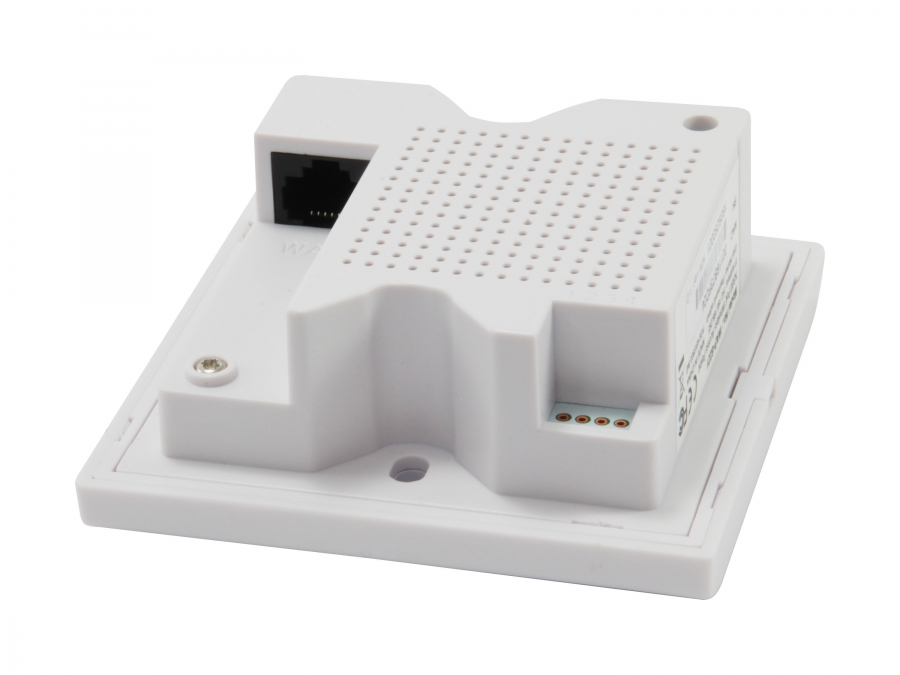

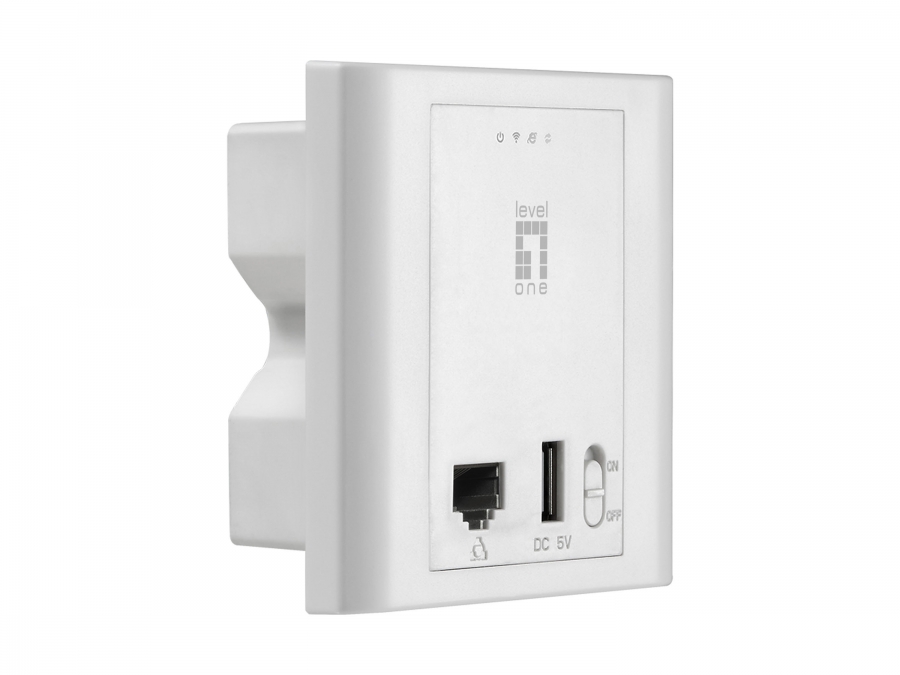

This 802.11n single-band wireless access point can run on PoE, and is a fully managed device (when controlled by the LevelOne WAC-2000/WAC-2003). The managed AP is capable of 300 Mbps throughput on the 2.4GHz frequency, and operates on its own or as part of a larger, managed network of access points. PoE means the device does not require an external power supply, making it a versatile and easily deployed option for all sizes of network.Key Features - Share your wireless network up to 300Mbps - Compatible with IEEE 802.11b/g/n wireless standards - Supports WEP, WPA and WPA2 encryption with IEEE 802.1x for high level security - Provides up to 4 SSIDs to separate network traffic and enhance security - Multi-operation modes to suit different wireless applications - IEEE 802.3af PoE compliant to simplify deployment and installation - Wall-mounted design fits standard 86x86mm socket

2.4 GHz	Y
5 GHz	N
Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Number of users	36 user(s)
Channels quantity	13 channels
Wi-Fi Multimedia (WMM)/(WME)	Y
Operating modes	Access Point (AP),Gateway,Repeater
Quality of Service (QoS) support	Y
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
Service Set Identifier (SSID) features	SSID broadcast on/off
Number of SSID supported	4
Web-based management	Y
Syslog	Y
Firmware upgradeable	Y
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
WAN connection	Ethernet (RJ-45)
Power consumption (typical)	8 W
Placement	In-wall
Product colour	White
On/off switch	Y
Reset button	Y
LED indicators	Power, System, WLAN
Country of origin	China
Certification	CE
Internal	N
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3 dBi
Width	86 mm
Depth	35 mm
Height	86 mm
Weight	270 g
Package width	102 mm
Package depth	46 mm
Package height	102 mm
Package weight	410 g
Package type	Box
Quick start guide	Y
Operating relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Harmonized System (HS) code	85176990
Master (outer) case width	305 mm
Master (outer) case length	400 mm
Master (outer) case height	585 mm
Master (outer) case gross weight	30.5 kg
Products per master (outer) case	72 pc(s)
