LEVEL ONE

WAP-6221

New

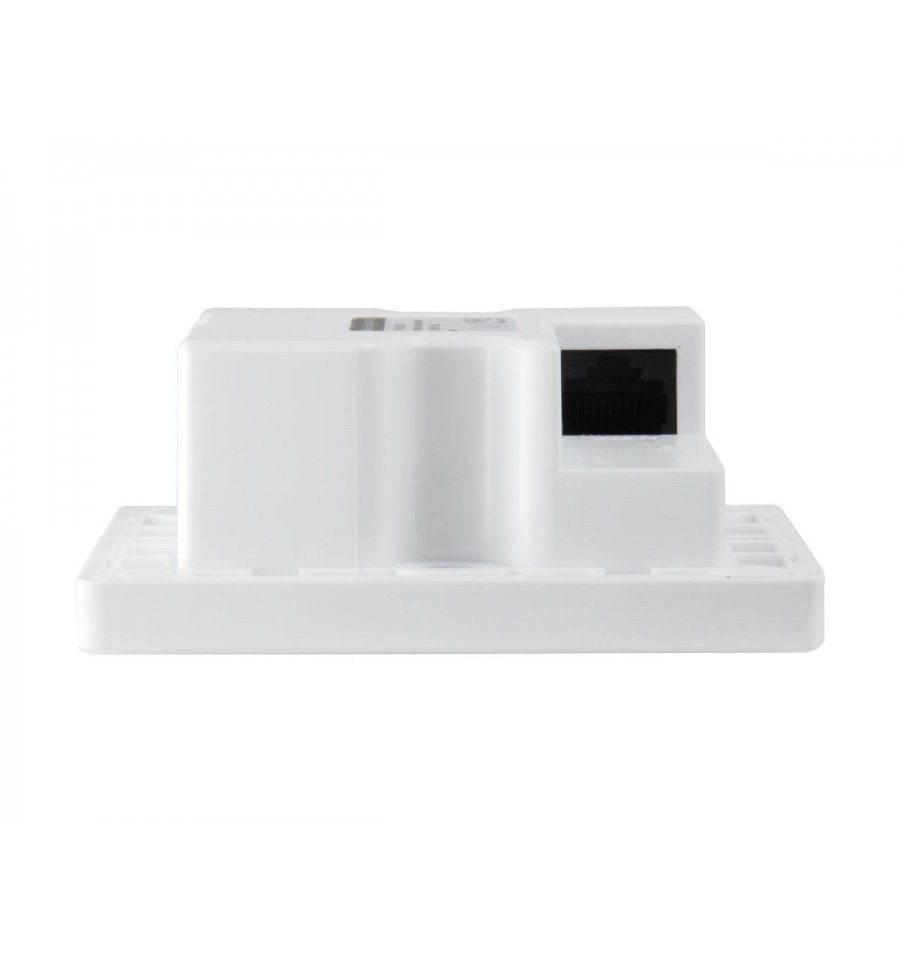

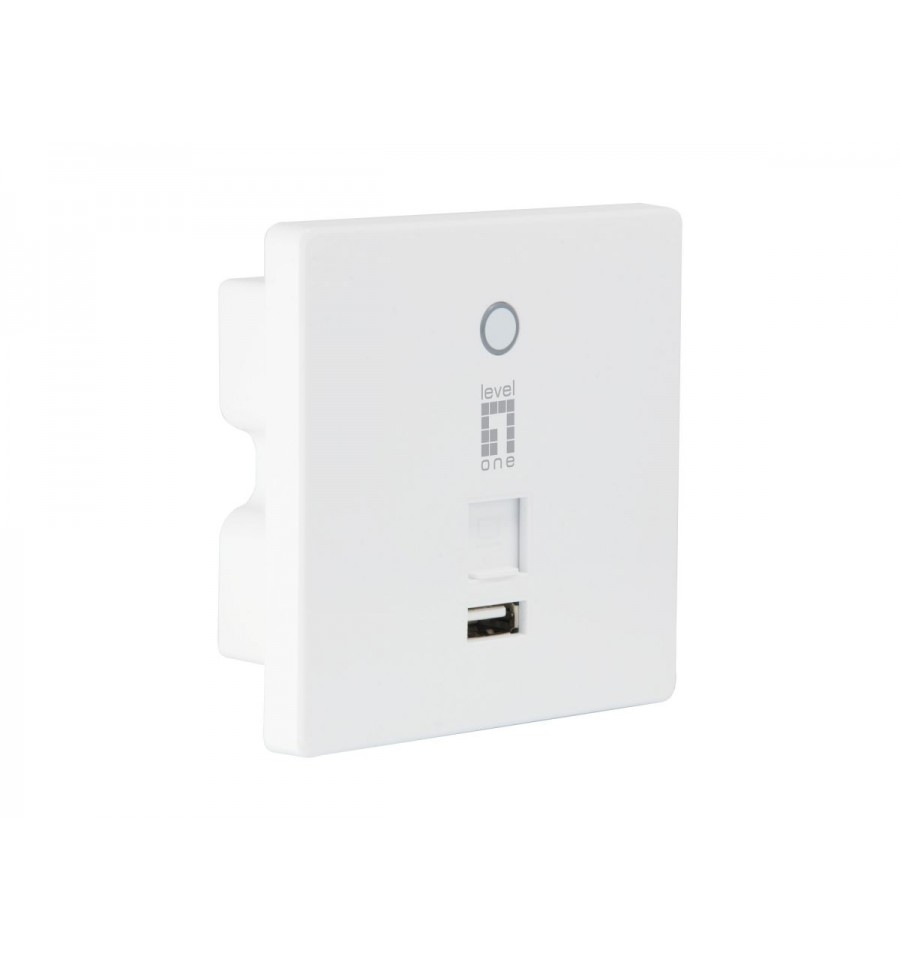

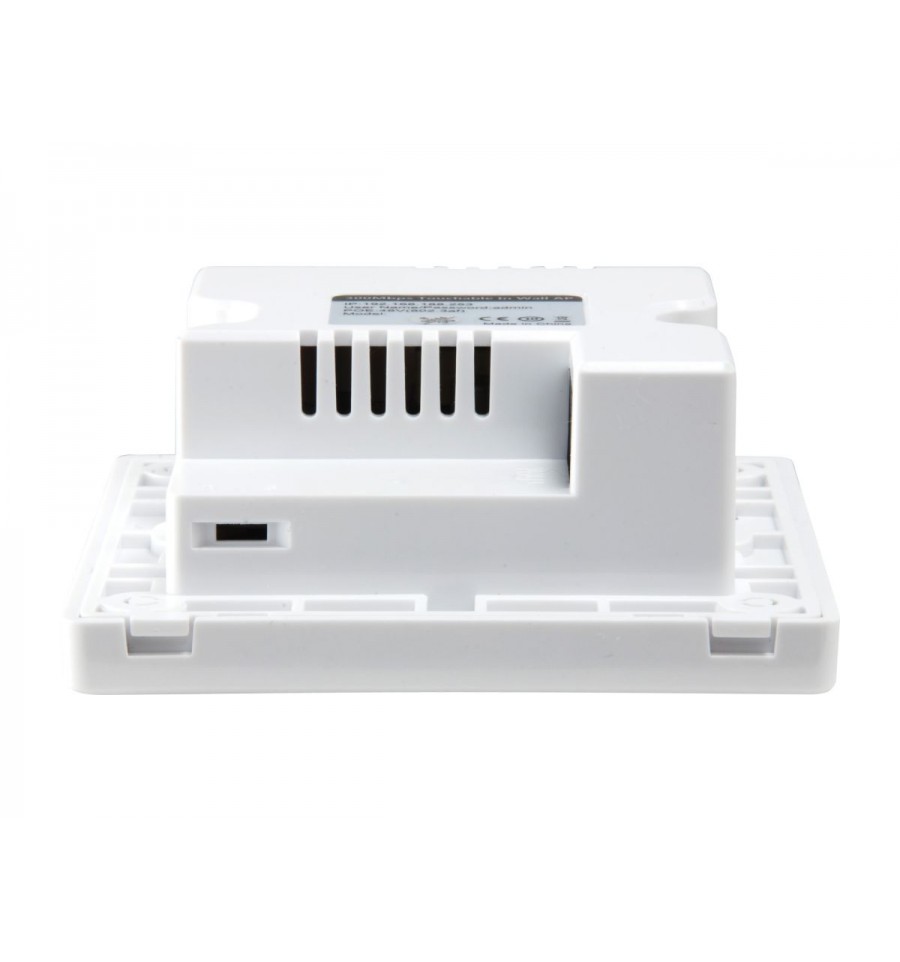

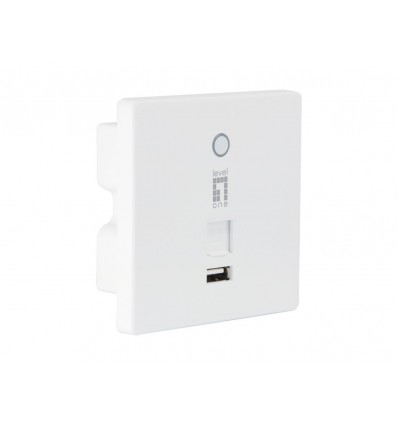

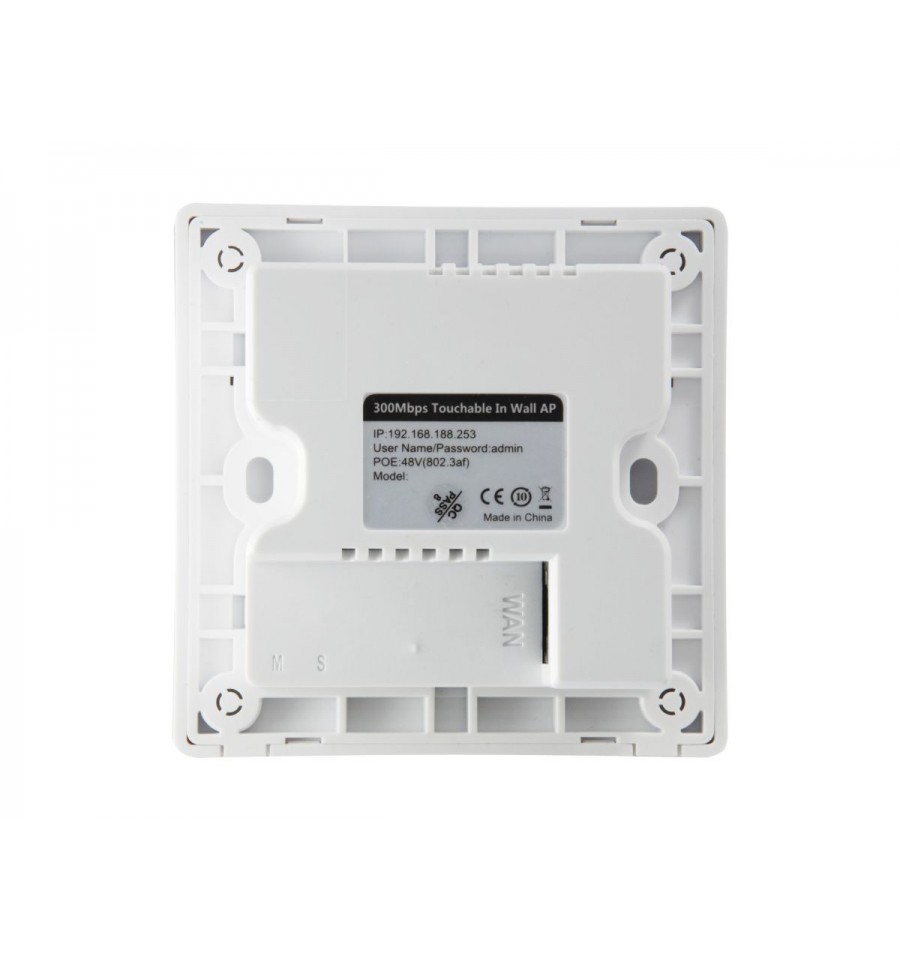

WAP-6221, N300 PoE Wireless Access Point

Model Number
WAP-6221
SKU
54620407
  • Share your wireless network up to 300Mbps
  • Compatible with IEEE 802.11b/g/n wireless standards
  • Wall-mounted design fits standard 86x86mm socket
  • IEEE 802.3af PoE compliant to simplify deployment and installation
  • Provides up to 4 SSIDs to separate network traffic and enhance security
  • Supports WEP, WPA and WPA2 encryption with IEEE 802.1x for high level security
This 802.11n single-band wireless access point can run on PoE, and is a fully managed device (when controlled by the LevelOne WAC-2000/WAC-2003). The managed AP is capable of 300 Mbps throughput on the 2.4GHz frequency, and operates on its own or as part of a larger, managed network of access points. PoE means the device does NAt require an external power supply, making it a versatile and easily deployed option for all sizes of network.
Other
Approval and complianceCE
Operating humidity10% RH ~ 90% RH
Operating temperature-20°C ~ 50°C
Storage humidity5% RH ~ 90% RH
Storage temperature-40°C ~ 70°C
System specifications
Antenna2 x 2dBi inside Omni Antenna
EIRP (dBm)<20 dBm
EncryptionWEP 64/128-bit Web share key encryption WPA, WPA2 128-bit TKIP/AES encryption WPA, WPA2-PSK TKIP/AES encryption
Frequency band2.4 ~ 2.4835 GHz
IndicatorsPower
System status
RAM size64MB (DDR)
Flash memory size16MB
MountFlush mount, Wall mount
Operating modesGateway Mode , Repeater Mode , WISP Mode , AP Mode
StandardsIEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.11e Wi-Fi Multimedia (WMM)
IEEE 802.3x Ethernet Flow Control
IEEE 802.11i Wi-Fi Protected Access (WPA2)
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wireless Networking
IEEE 802.3 af Power over Ethernet
Wireless channelsCh.1 ~ 11 USA Ch.1 ~ 13 EU
Features
FeaturesMultiple SSID (4 SSID for 2.4GHz)
Physical Specifications
Product weight (kg)0,27
Default
ColorWhite
EAN4015867199183
Model NumberWAP-6221
Package contentsWAP-6221
Schraubenset
Quick Installation Guide
Port Configuration
Fast Ethernet RJ452
802.3af PoE1
Performance
Receiver sensitivity802.11n (40MHZ): Range (-70) dBm
802.11n (20MHZ): Range (-88 ) dBm
802.11g: Range (-88) dBm 802.11b: Range (-94) dBm
Filter
Frequency band2.4GHz
Max. Wi-Fi Data Rate300Mbps
Wireless AP TypeInwall
PoE SupportedYes
Akeneo
Power consumption<10W
Dimensions (W x D x H)86 x 35 x 86 mm
