Level One LevelOne Antenne panel direktional dual-polarization 5GHz

LEVEL ONE

WAN-9151

New

WAN-9151, 15dBi 5GHz Directional Dual-Polarization Panel Antenna

Model Number
WAN-9151
SKU
54046607
  • Provides 15dBi directional operation
  • Directional operation provides extended point-to-point coverage
  • For IEEE 802.11a/n/ac Wireless applications in 5 GHz frequency range
  • Dual-Polarization to avoid interference
  • Low wind loading

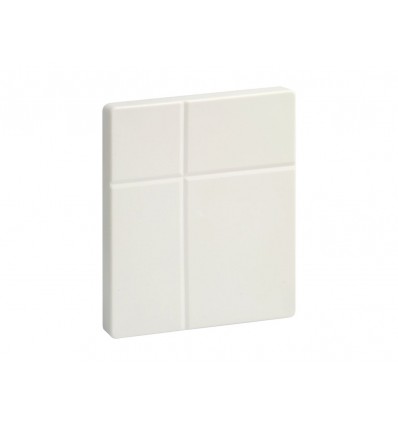

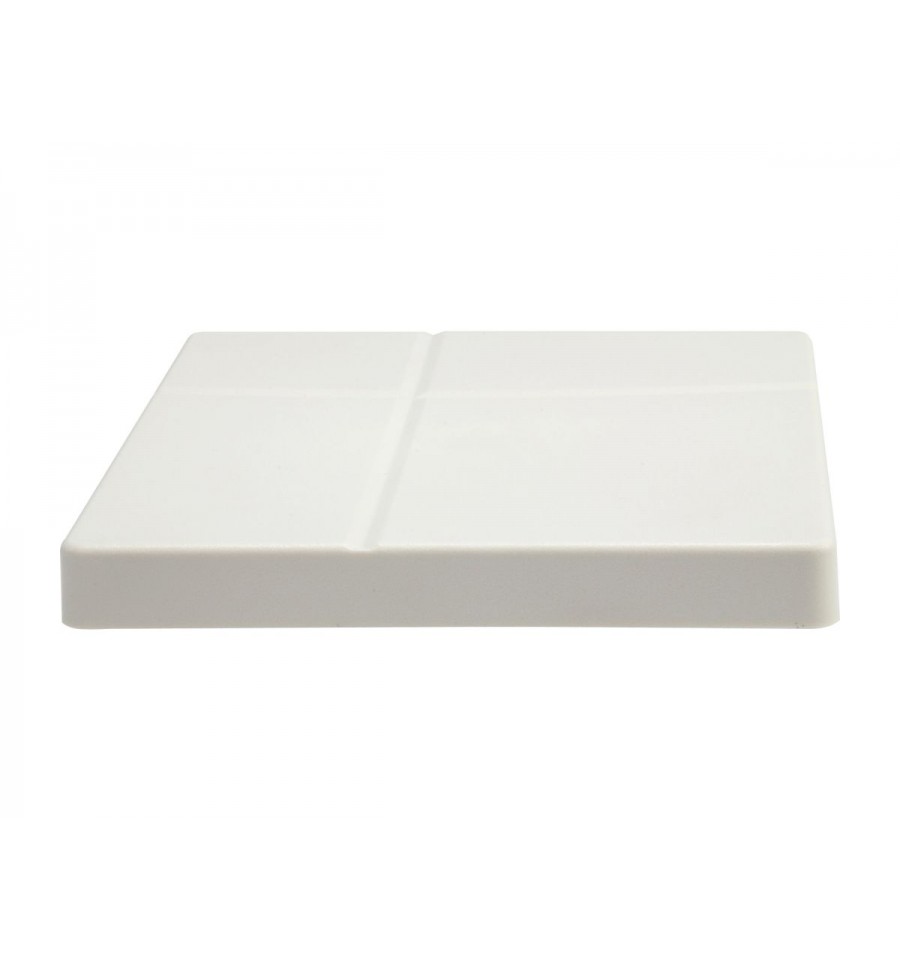

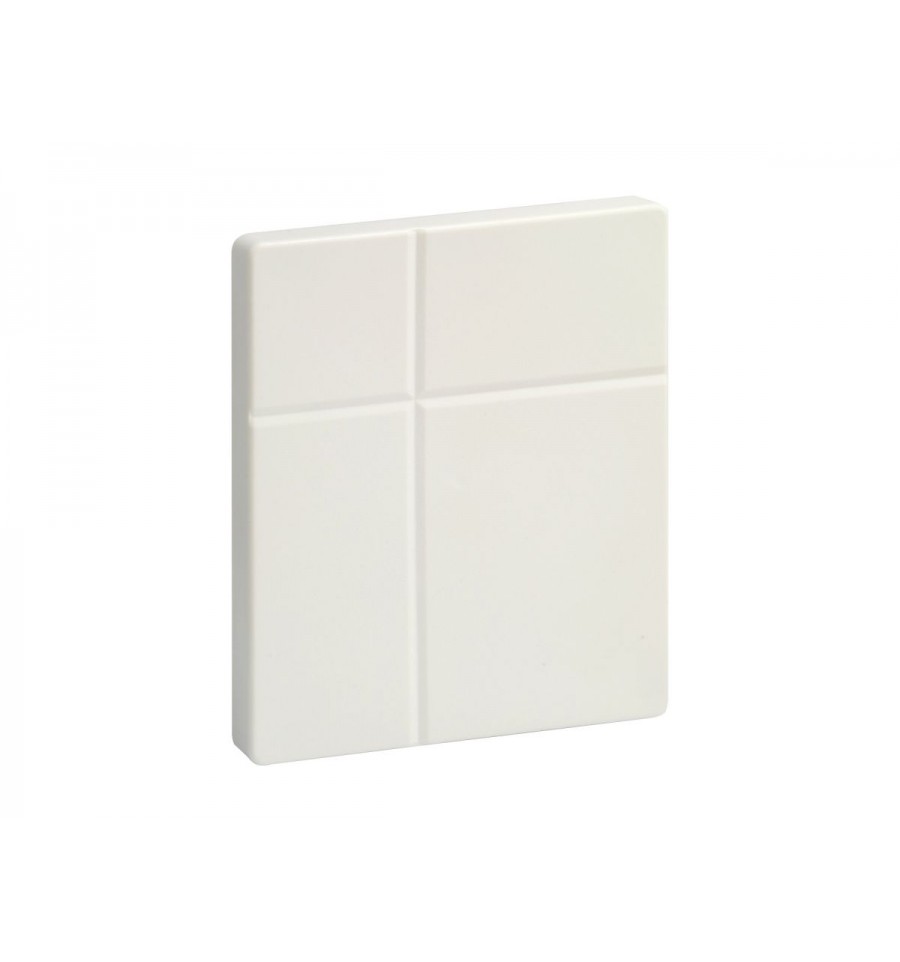

The LevelOne WAN-9151 is a directional, dual-polarization antenna that can be mounted either indoors or outside. Dual-polarization offers the flexibility of two different communication channels receiving simultaneously, while a high gain of 15dBi offers better range and signal strength. If mounted outdoors the IP65-rated weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, sNAw, dust and other harsh conditions.
Other
Operating temperature-30°C ~ 60°C
System specifications
Frequency band5.1~5.9 GHz
HPBW horizontal22°
HPBW vertical15°
Impedance (ohm)50
PolarizationLiner Vertical and Horizontal (±90°)
VSWR2.0
Physical Specifications
Product weight (kg)0.208
Port Configuration

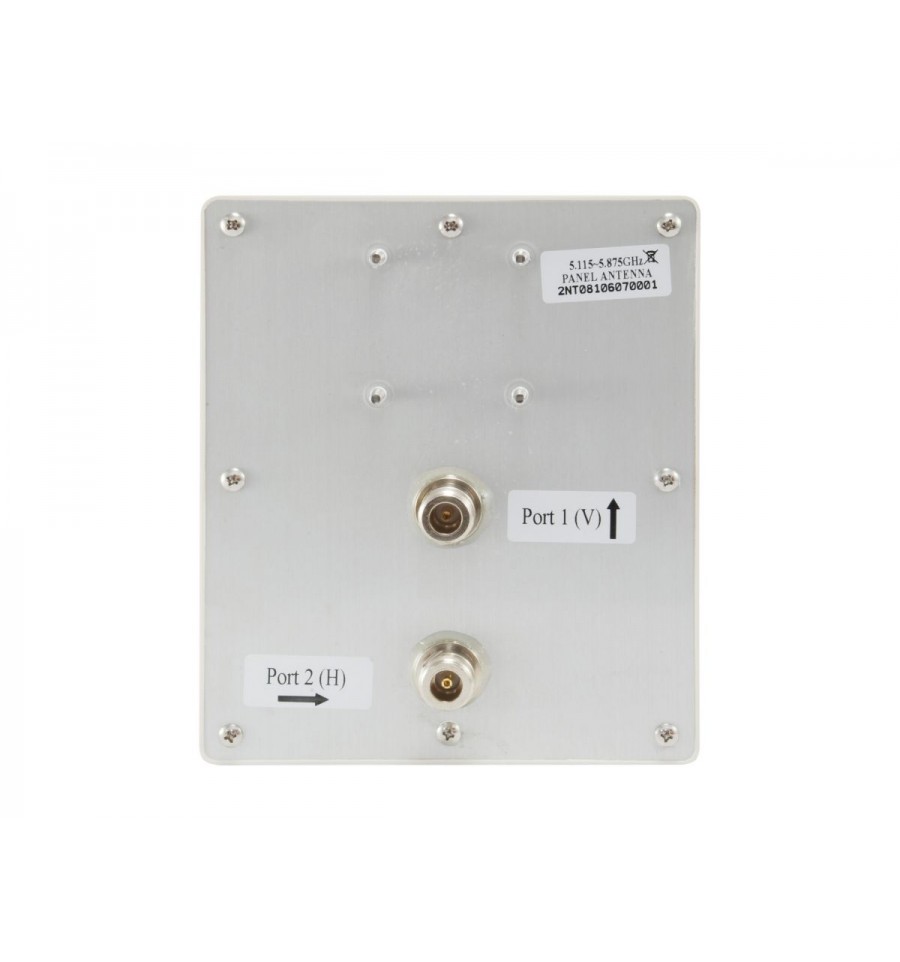

5G N female jack2
Default
ColorWhite
EAN4015867203583
Model NumberWAN-9151
Package contentsWAN-9151

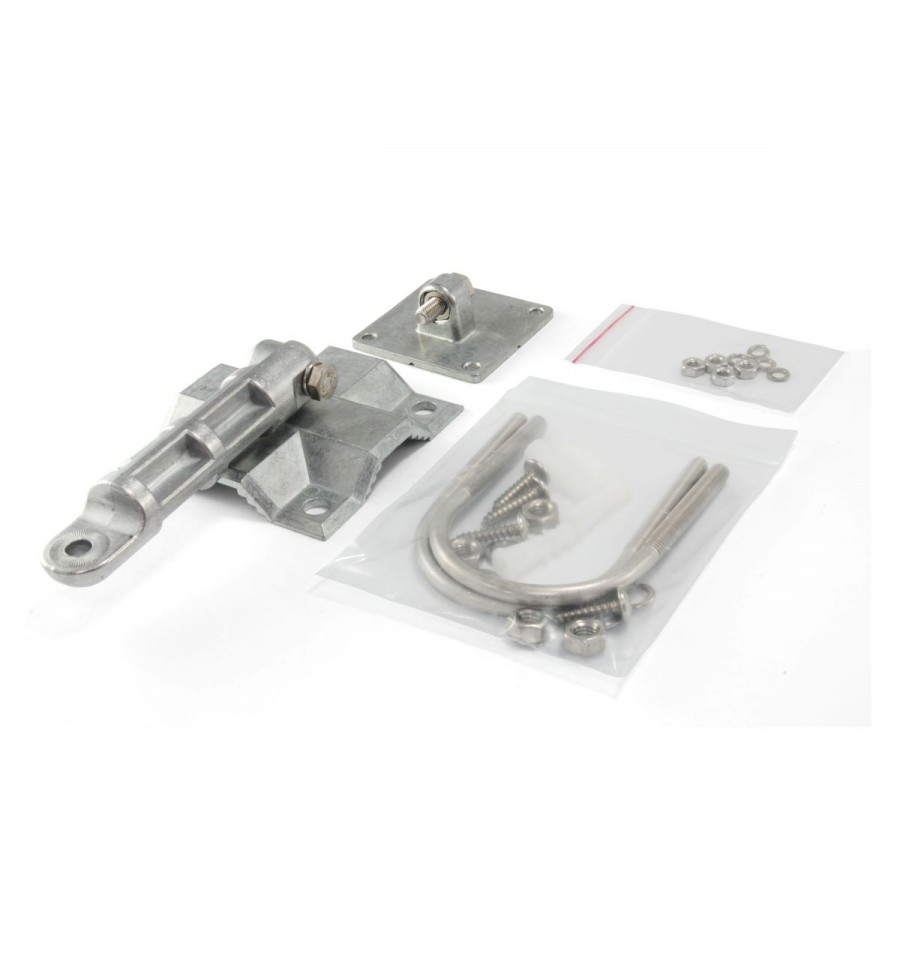

Pole Mount Kit
Quick Installation Guide
Performance
Return loss-10
Reliability
Survival wind speed50 m/s
Filter
Antenna TypeDirectional
Frequency band5GHz
Akeneo
Dimensions (W x D x H)137.5 x 162.5 x 16 mm
