LEVEL ONE

WAN-7151

New

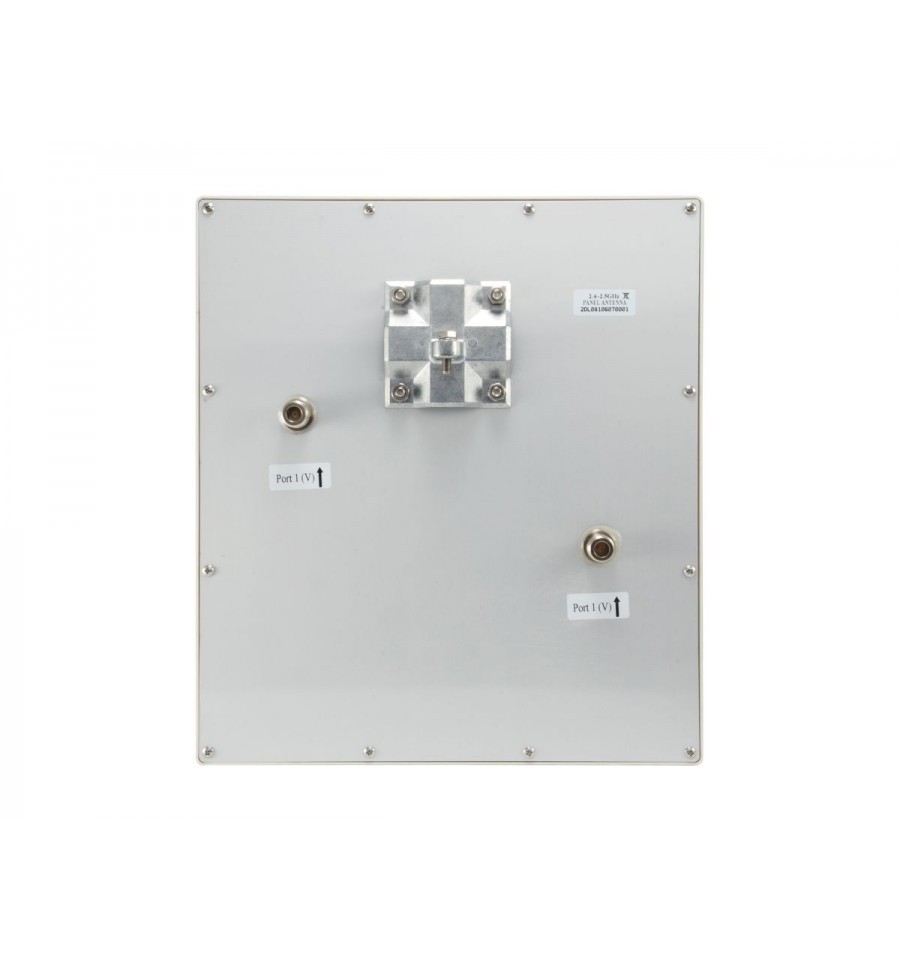

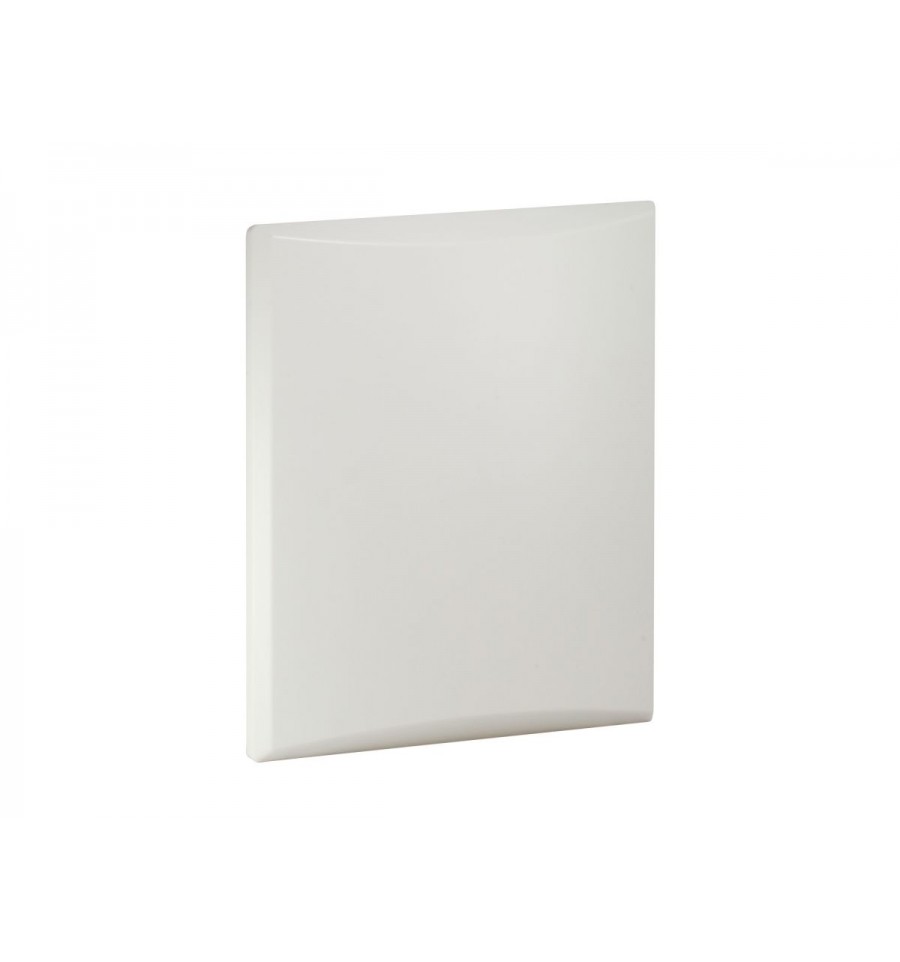

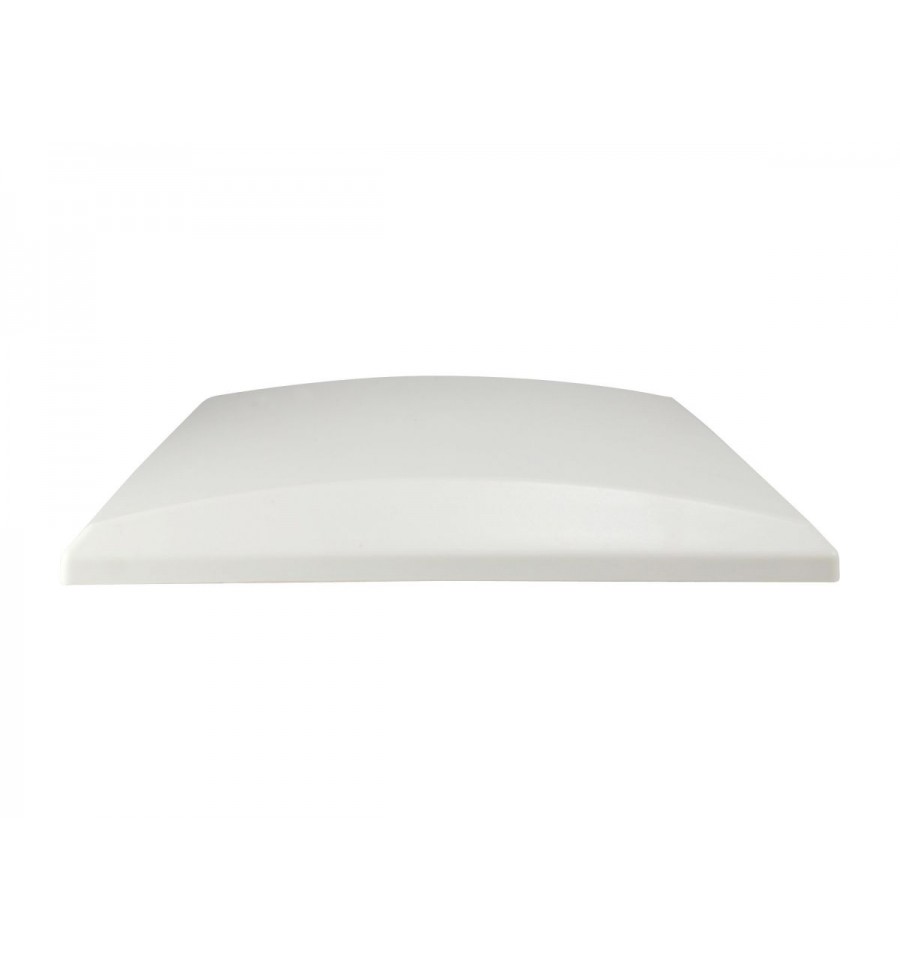

WAN-7151, 15dBi 2.4GHz Directional Dual-Polarization Panel Antenna

Model Number
WAN-7151
SKU
54046507
  • Provides 15dBi directional operation
  • For IEEE 802.11b/g/n Wireless applications in 2.4GHz frequency range
  • Directional operation provides extended point-to-point coverage
  • Dual-Polarization to avoid interference
  • Low wind loading
  • -30°C to 60°C operating temperature range
The LevelOne WAN-7151 is a directional, dual-polarization antenna that can be mounted either indoors or outside. Dual-polarization offers the flexibility of two different communication channels receiving simultaneously, while a high gain of 15dBi offers better range and signal strength. If mounted outdoors the weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, sNAw, dust and other harsh conditions.
More Information
Other
Operating temperature-30°C ~ 60°C
System specifications
Frequency band2.4~2.5GHz
HPBW horizontal30°
HPBW vertical15°
Impedance (ohm)50
PolarizationLiner Vertical and Horizontal (±90°)
VSWR≤ 2.0
Physical Specifications
Product weight (kg)0.904
Port Configuration
2.4G N female jack2
Default
ColorWhite
EAN4015867203576
Model NumberWAN-7151
Package contentsWAN-7151

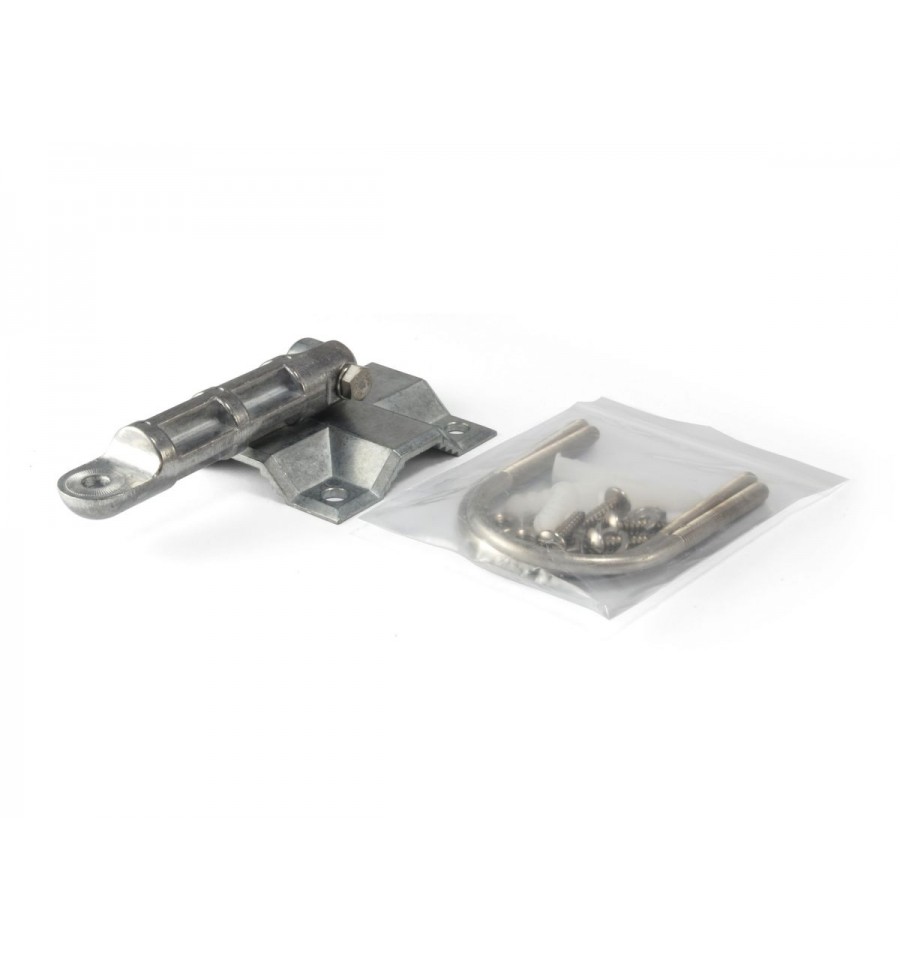

Pole Mount Kit
Quick Installation Guide
Performance
Return loss≤ -10
Reliability
Survival wind speed50m/s
Filter
Antenna TypeDirectional
Frequency band2.4GHz
Akeneo
Dimensions (W x D x H)295 x 330 x 35 mm
