WAN-4201, 20dBi 5GHz Directional Panel Antenna
Model Number
WAN-4201
SKU
54046407
- Provides 20dBi directional operation

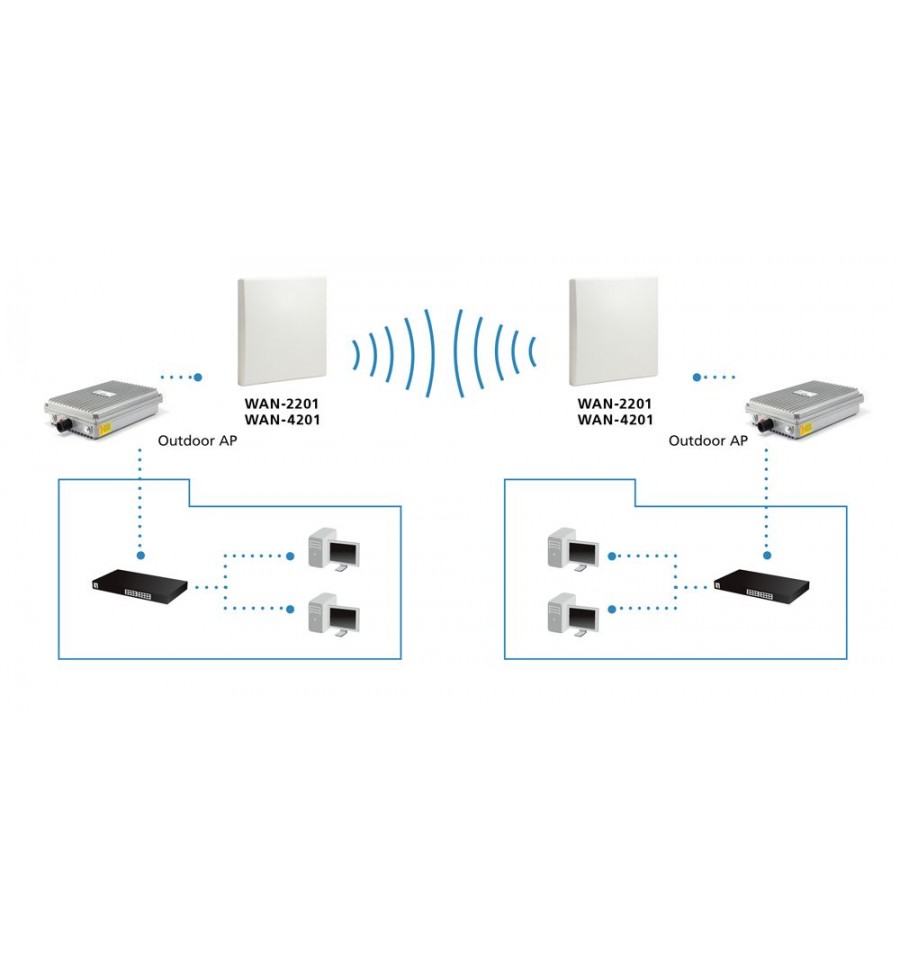

- Directional operation provides extended point-to-point coverage
- For IEEE 802.11a/n/ac Wireless applications in 5 GHz frequency range
- Low wind loading
- -30°C to 60°C operating temperature range
The LevelOne WAN-4201 is a directional antenna for increased performance and reduced interference, operating on the 5 GHz frequency. WAN-4201 can be mounted either indoors or outdoors. The antenna’s gain value is 20dBi, and if mounted outdoors the weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, sNAw, dust and other harsh conditions.
| Other | |
|---|---|
| Operating temperature | -30°C ~ 60°C |
| System specifications | |
| Frequency band | 5.1~5.835GHz |
| HPBW horizontal | 15.9° |
| HPBW vertical | 14.9° |
| Impedance (ohm) | 50 |
| Polarization | Vertical |
| VSWR | 2.0 |
| Physical Specifications | |
| Product weight (kg) | 1,044 |
| Port Configuration | |
| 5G N female jack | 1 |
| Default | |
| Color | White |
| EAN | 4015867203569 |
| Model Number | WAN-4201 |

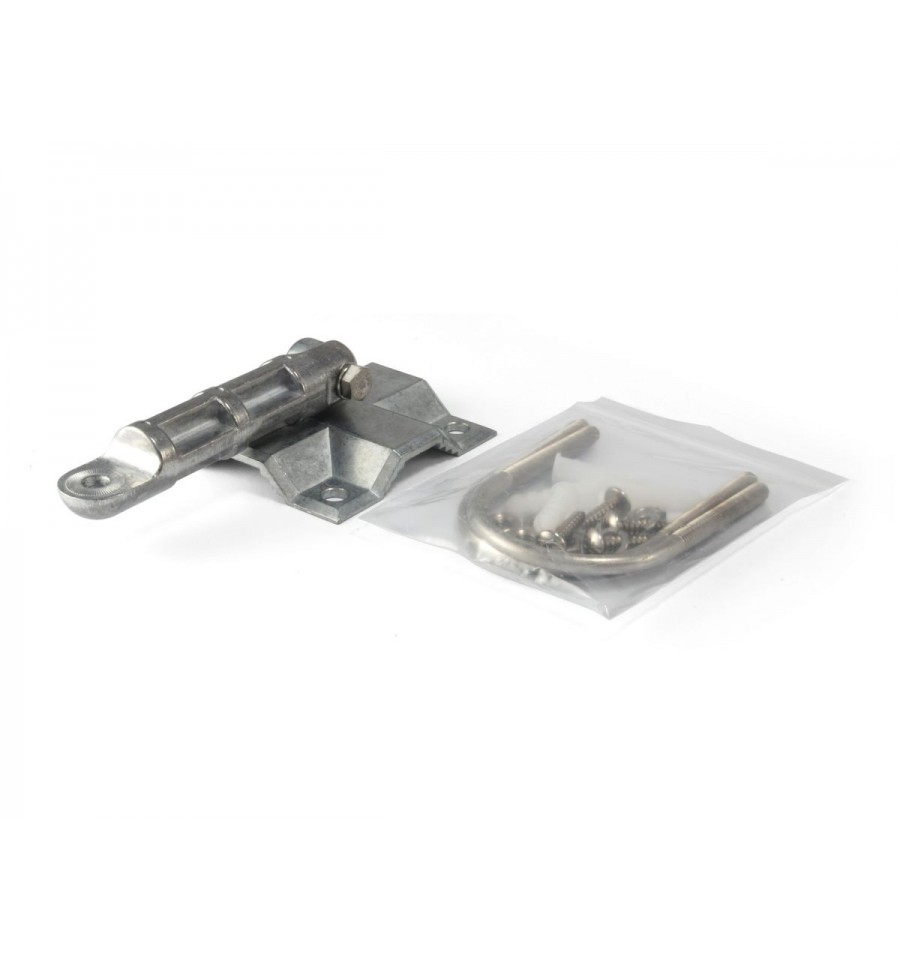

| Package contents | WAN-4201 Pole Mount Kit Quick Installation Guide |
| Performance | |
| Return loss | -10 |
| Reliability | |
| Survival wind speed | 50 m/s |
| Filter | |
| Antenna Type | Directional |
| Frequency band | 5GHz |
| Akeneo | |
| Dimensions (W x D x H) | 295 x 330 x 35 mm |
