Delock HDMI Splitter 1 x HDMI in to 4 x HDMI out 4K 60 Hz with downscaler

Reference 18652

Condition: New

More info

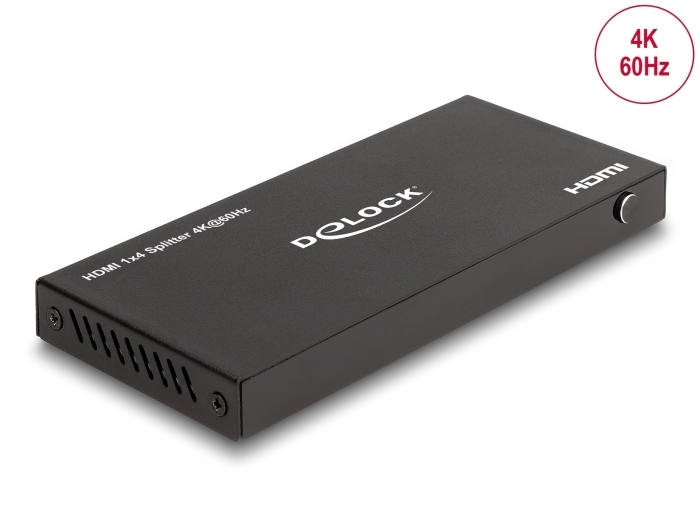

This splitter by Delock receives an HDMI signal from a PC or laptop and splits it to four connected displays. Thereby one HDMI connection can be used to operate four HDMI monitors.

Downscaler
If a monitor does not support the high resolution, the image can be scaled from 4K to 1080p with the integrated downscaler.

The device is powered via a USB port, a suitable USB cable is included. If no free USB-A port is available, an optional external power supply is required.

System requirements:
• HDMI cable
• Power source with a free USB Type-A female port

Specification:

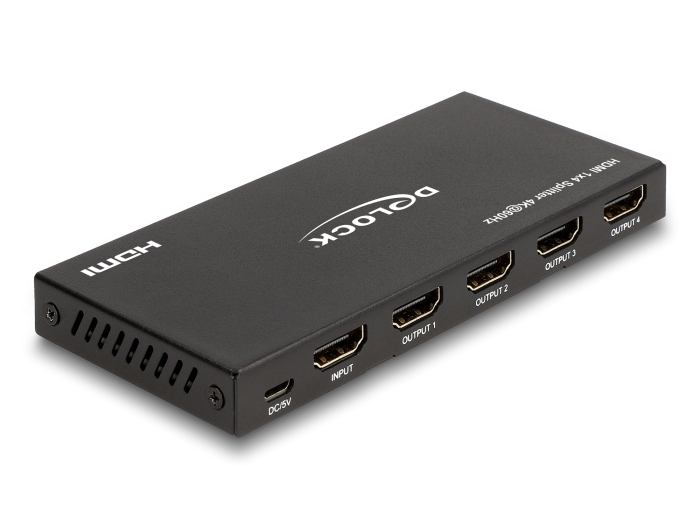

• Connectors:
  Input:
  1 x HDMI-A female
  1 x USB Type Micro-B female (5 V power supply)
  Output:
  4 x HDMI-A female
• Supports EDID management
• High Speed HDMI specification
• Supports 3D displays
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Function: Mirrored
• Transmission of audio and video signals
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps per channel, max. 18 Gbps
• Power consumption: max. 2.5 W
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 136 x 61 x 14 mm

Package content:
• HDMI Splitter

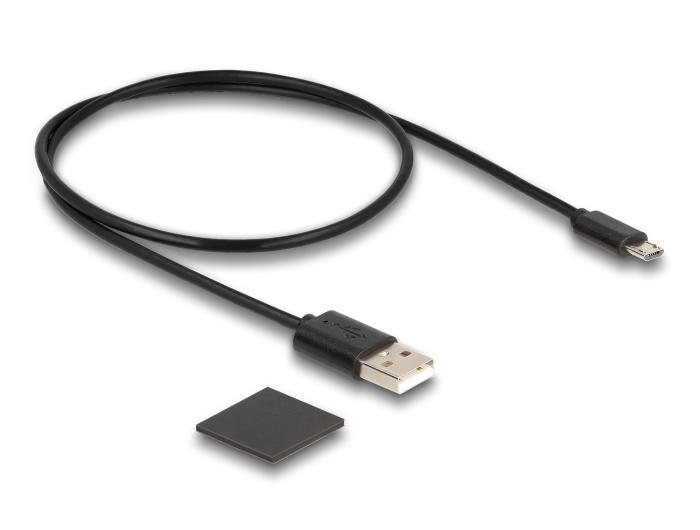

• USB power cable, length: ca. 0.75 m
• User manual
