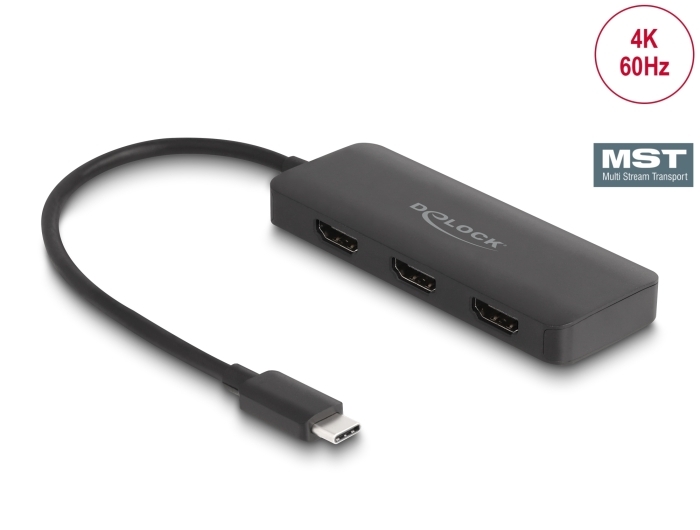

Delock USB Type-C™ Splitter (DP Alt Mode) to 3 x HDMI MST 4K 60 Hz

Delock USB Type-C™ Splitter (DP Alt Mode) to 3 x HDMI MST 4K 60 Hz

DELOCK

88040

New

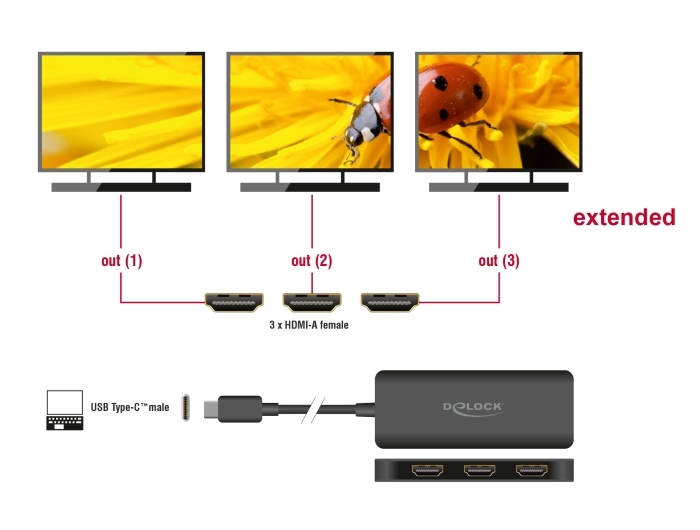

This splitter by Delock is suitable for the connection of three HDMI monitors to a computer with USB-C™ interface and DisplayPort alternate mode support. Three monitors can be operated simultaneously at the outputs.

Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.

High resolution
Due to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3840 x 2160) are supported.
System requirements:
• Windows 10/10-64/11
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Specification:
• Connectors:
  Input: 1 x USB Type-C™ male
  Output: 3 x HDMI-A female
• Chipset: VMM5310
• DisplayPort 1.4 specification
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Supports Display Stream Compression 1.2 (DSC)
• Maximum resolution (depending on the system and the connected hardware):
  DisplayPort 1.4 Multi-Stream Transport (MST):
  2 displays: up to 3840 x 2160 @ 60 Hz
  3 displays: 2 x up to 3840 x 2160 @ 30 Hz + 1 x up to 3840 x 2160 @ 60 Hz
  DisplayPort 1.4 Multi-Stream Transport (MST) + DSC:
  3 displays: up to 3840 x 2160 @ 60 Hz
• Functions: Mirrored or Extended (Windows only)
• Transmission of audio and video signals
• USB bus powered
• Colour: black
• Cable length without connectors: ca. 15 cm
• Dimensions without cable (LxWxH): ca. 98 x 36 x 12 mm
Package content:
• USB-C™ Splitter (DP Alt Mode)
• User manual
Data sheet:
http://www.delock.de/produkt/88040/pdf.html?sprache=en
