Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance: 70m (229.66ft)
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID management: Preset
• Supported Audio: LPCM 2CH
• Separate Audio Ports: -
• IR Support: 20-60KHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 1 x Cat.6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: GSV2006 & GSV5100
• Special Features: PoC (Power over Cable)

Connectors

• Transmitter Input: HDMI Type A (Female)
• Transmitter Output: 4 x RJ-45 (Female), HDMI Type A (Female), 3.5mm IR (Female)
• Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
• Receiver Output: HDMI Type A (Female)
• Bi-directional Ports: -
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: Transmitter: 180x103x23mm (7.09x4.06x0.91in) , Receiver: 100x88x23mm (3.94x3.46x0.91in)
• Housing Material: Metal
• Net Weight: Transmitter: 0.39kg (0.86lb), Receiver: 0.199kg (0.44lb)
• Operating Temperature : 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: 12VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 423x60x354mm (16.65x2.36x13.94in)
• Gross Weight: 1.36kg (3lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, REACH & California Propositon 65

Package Contents

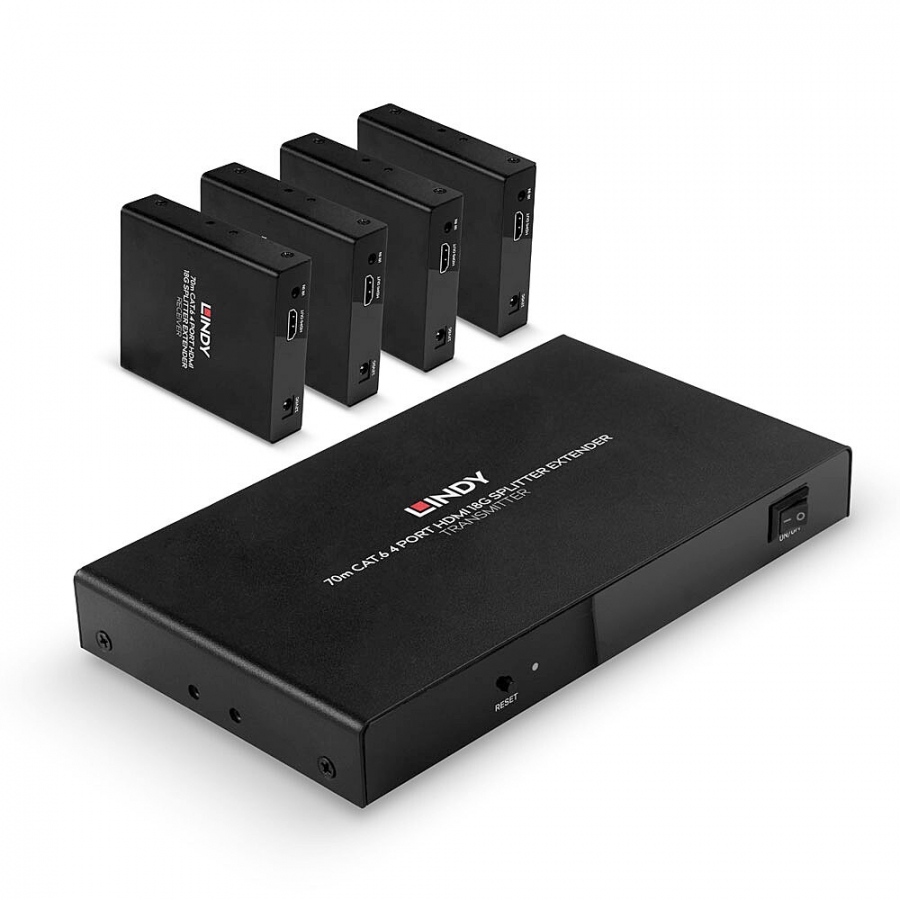

• 70m Cat.6 4 Port HDMI 4K60 Splitter Extender
• 4 x Cat.6 HDMI Receivers
• IR Emitter Cable, 1.2m
• 4 x IR Receiver Cable, 1.2m
• 2 x Transmitter Mounting Brackets & Screws
• 8 x Receiver Mounting Brackets & Screws
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38262
• EAN: 4002888382625
