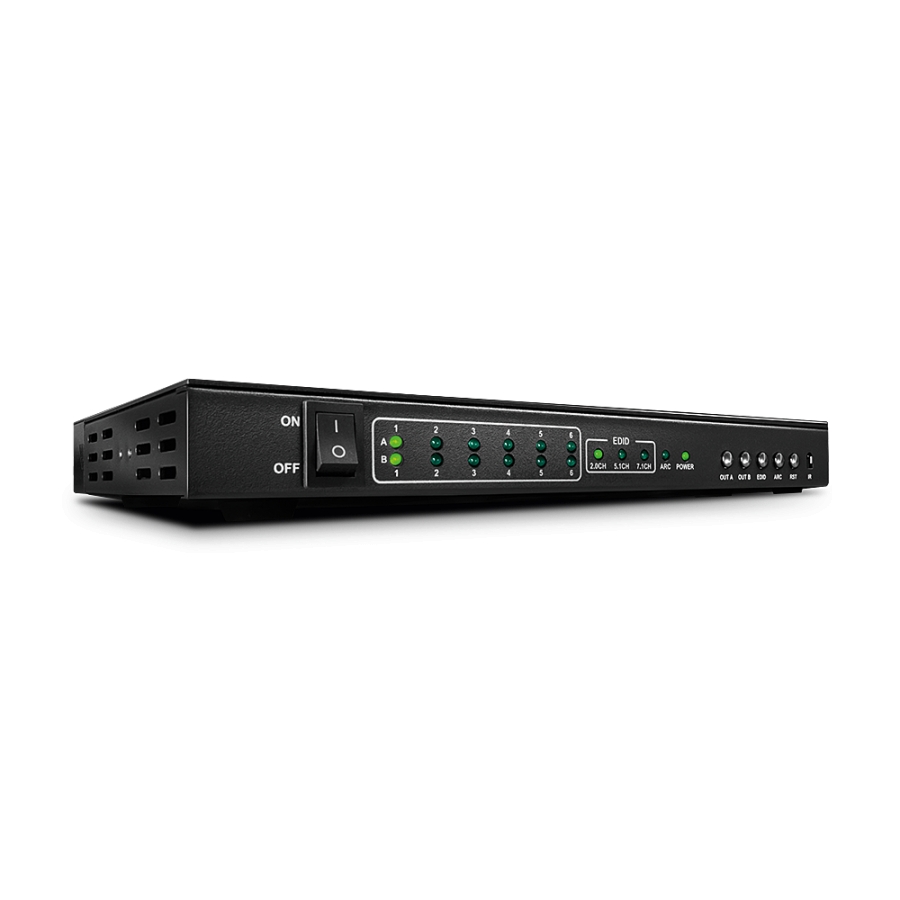

6x2 HDMI 10.2G Matrix with PiP

LIN38148

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 1.4
  • Supports Bandwidth: 10.2 Gbps
  • Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • Supported Audio:
    • Audio Pass-through
    • LPCM Audio Extraction
  • IR Support : 30-60kHz
  • CEC Support: Pass-Through (Port 1)
  • Serial Interface: -
  • LED / LCD Display: -
  • Control: IR
  • Special Features:
    • EDID Management
    • ARC Audio Extraction
    • Picture in Picture
    • MHL
  •

Connectors

  • Input: 6 x HDMI (Female)
  • Output: 2 x HDMI (Female), 3.5mm (Female), TOSLink Audio (Female)
  • Control: -
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions WxHxD: 260x120x30mm (10.24x4.72x1.18in)
  • Housing Material: Metal
  • Nett Weight: 0.87kg (1.92lb)
  • Operating Temperature : 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% (non-condensing)
  • Power Requirements: 5VDC 2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 305x240x60mm (12.01x9.45x2.36in)
  • Gross Weight: 1.1kg (2.43lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • HDMI Matrix
  • IR Remote Control
  • Mounting Kit
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual



Purchasing Information

  • No. 38148
  • EAN: 4002888381482
