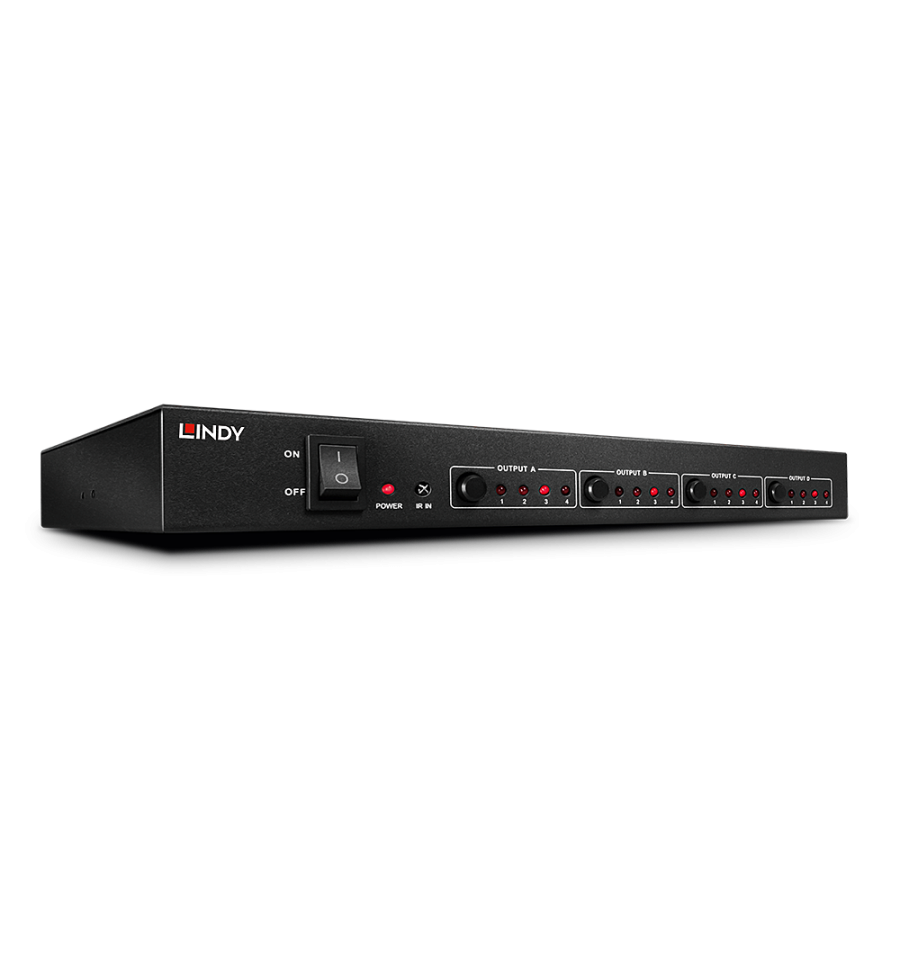

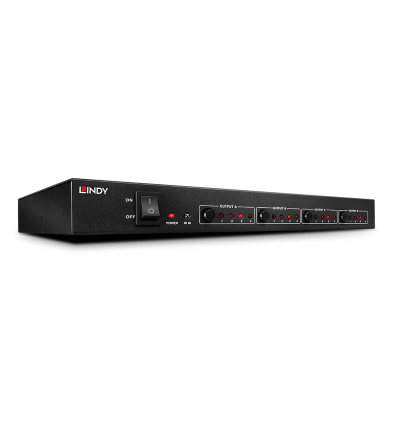

4x4 HDMI 10.2G Matrix Switch

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.4
• Supports Bandwidth: 10.2 Gbps
• Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
• HDCP Support: 1.4
• Supported Audio: Audio Pass-through
• IR Support : 30-60kHz

• CEC Support: -

• Serial Interface: RS232
• LED / LCD Display: -
• Control: IR, RS232
• Special Features: EDID Management

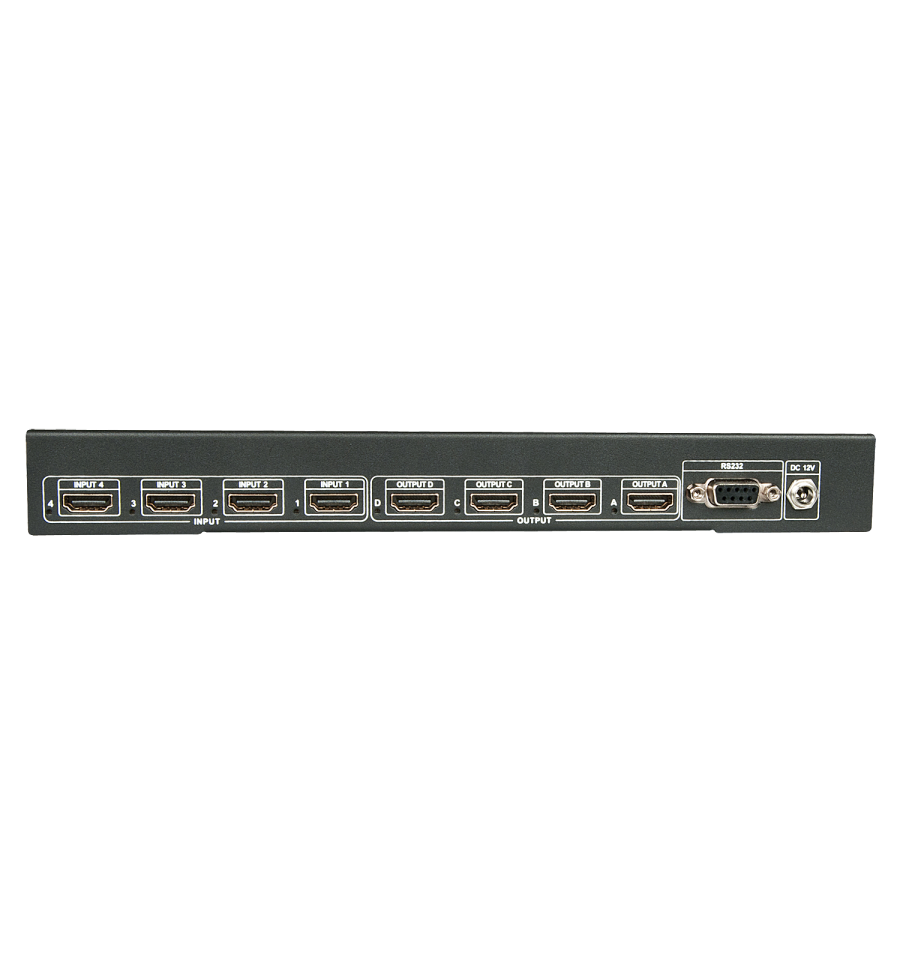

Connectors

• Input: 4 x HDMI (Female)
• Output: 4 x HDMI (Female)
• Control: RS232 (Female), 3.5mm (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxHxD: 267x120x32mm (10.51x4.72x1.26in)
• Housing Material: Metal
• Nett Weight: 0.84kg (1.85lb)
• Operating Temperature : 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% (non-condensing)
• Power Requirements: 12VDC 2.5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 305x240x60mm (12.01x9.45x2.36in)
• Gross Weight: 1.35kg (2.98lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH and California Proposition 65

Package Contents

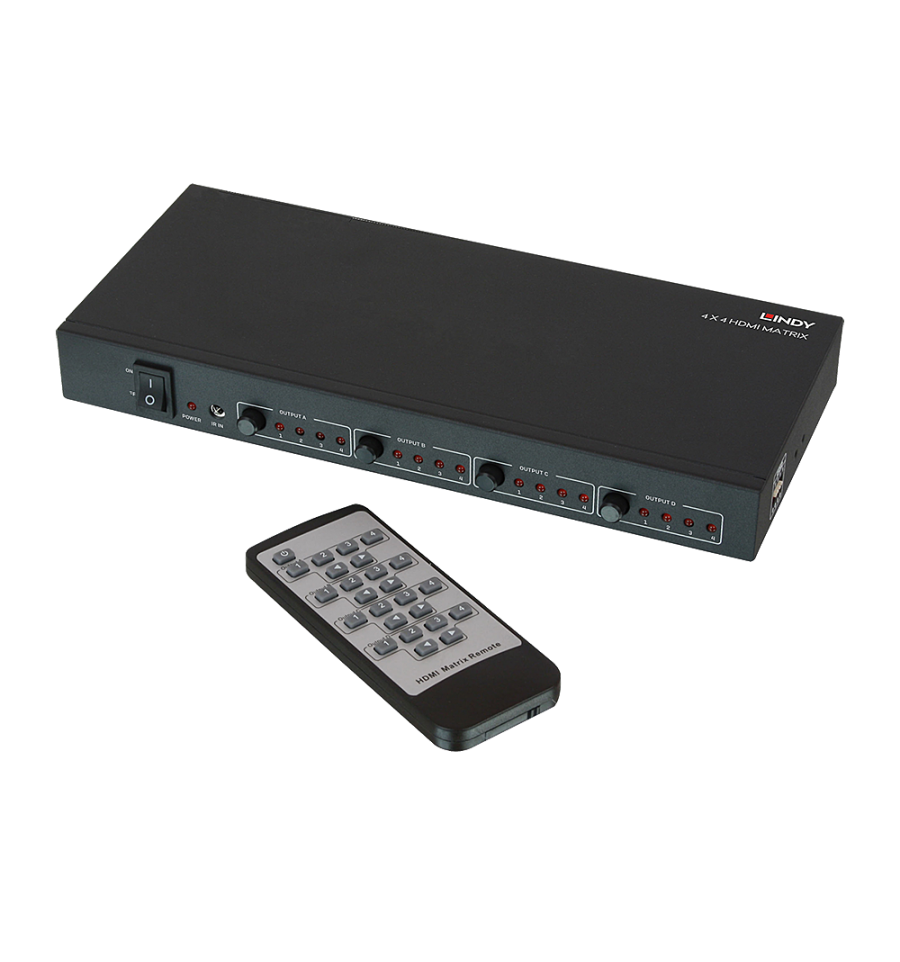

• HDMI Matrix
• IR Remote Control
• Serial Cable
• Mounting Kit
• Multi-Country Power Supply  (EU, UK, US & AUS)
• Lindy Manual

Purchasing Information

• No. 38152
• EAN: 4002888381529
