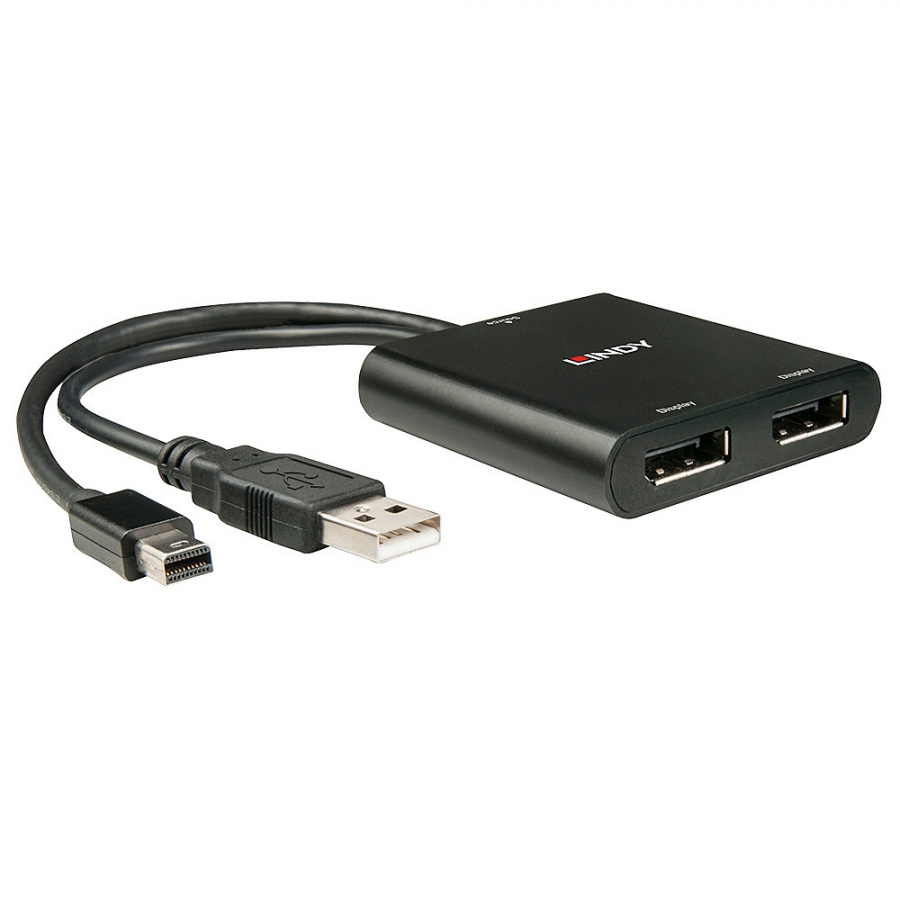

Mini DP to Dual DisplayPort 1.2 MST Hub

Specification

• AV Interface: DisplayPort
• Interface Standard: DP 1.2
• Supported Bandwidth: 21Gbps
• Maximum Resolution: 3840x2160@60Hx 4:4:4 8bit
• HDCP Support: HDCP 1.3
• Supported Audio: Up to 7.1CH
• Separate Audio Ports: -
• CEC Support: -
• Serial Interface: -
• Special Features: -

Connectors

• Input: Mini DisplayPort Male
• Output: 2 x DisplayPort (Female)
• Control: -
• Power: USB Type A (Male), Bus-powered

Physical Properties

• Dimensions (approx.) WxDxH: 58x62x14mm (2.28x2.44x0.55in)
• Housing Material: Metal
• Net Weight: 0.052kg (0.11lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 80 - 90% RH (non-condensing)
• Power Requirements: -
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 150x235x20mm (5.91x9.25x0.79in)
• Gross Weight: 0.07kg (0.15lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, UL & REACH

Package Contents

• Mini DisplayPort MST Hub
• Lindy Manual

Purchasing Information

• No.: 38426
• EAN: 4002888384261
