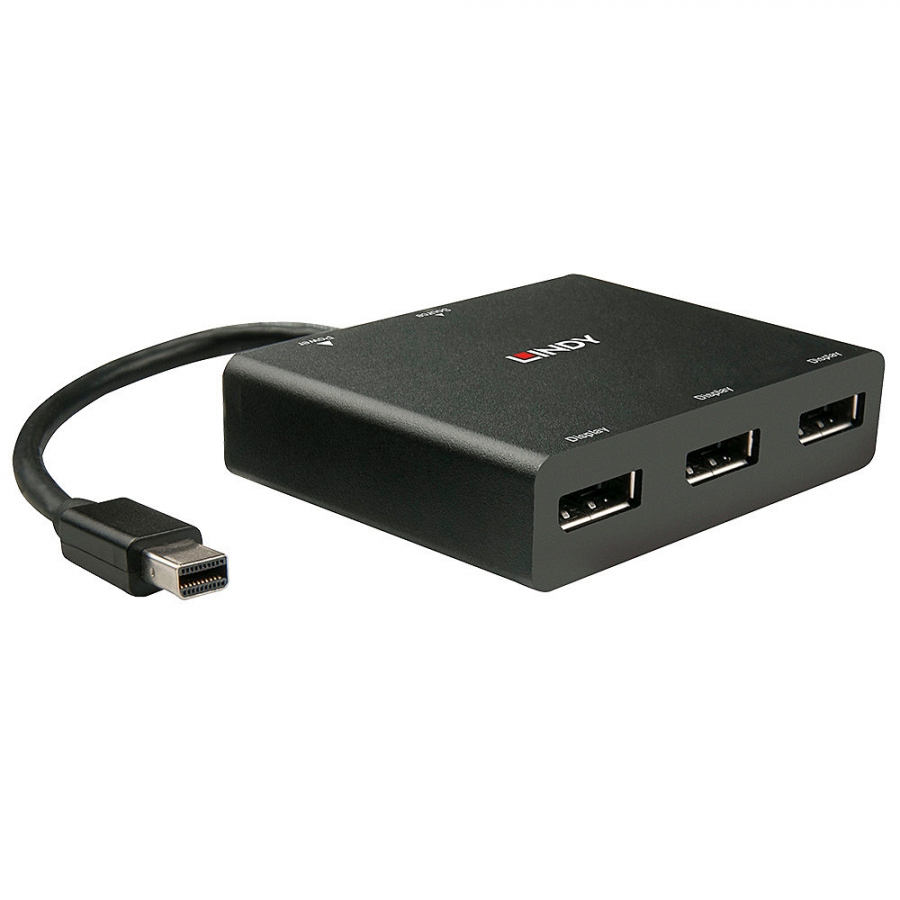

Mini DP to Triple DisplayPort 1.2 MST Hub

Specification

• AV Interface: DisplayPort
• Interface Standard: DP 1.2
• Supported Bandwidth: 21Gbps
• Maximum Resolution: 3840x2160@60Hx 4:4:4 8bit
• HDCP Support: HDCP 1.3
• Supported Audio: Up to 7.1CH
• Separate Audio Ports: -
• CEC Support: -
• Serial Interface: -
• Special Features: -

Connectors

• Input: Mini DisplayPort (Male)
• Output: 3 x DisplayPort (Female)
• Control: -
• Power: 5.5/2.5mm

Physical Properties

• Dimensions (approx.) WxDxH: 78x60x18mm (3.07x2.36x0.71in)
• Housing Material: Metal
• Net Weight: 0.085kg (0.19lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 80 - 90% RH (non-condensing)
• Power Requirements: 5VDC 3A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240x145x60mm (9.45x5.71x2.36in)
• Gross Weight: 0.408kg (0.9lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, UL & REACH

Package Contents

• Mini DisplayPort MST Hub
• Multi-country PSU (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38428
• EAN: 4002888384285
