Delock Displayport 1.2 Splitter 1 x mini Displayport in > 4 x Displayport out 4K

Delock Displayport 1.2 Splitter 1 x mini Displayport in > 4 x Displayport out 4K

DELOCK

87693

New

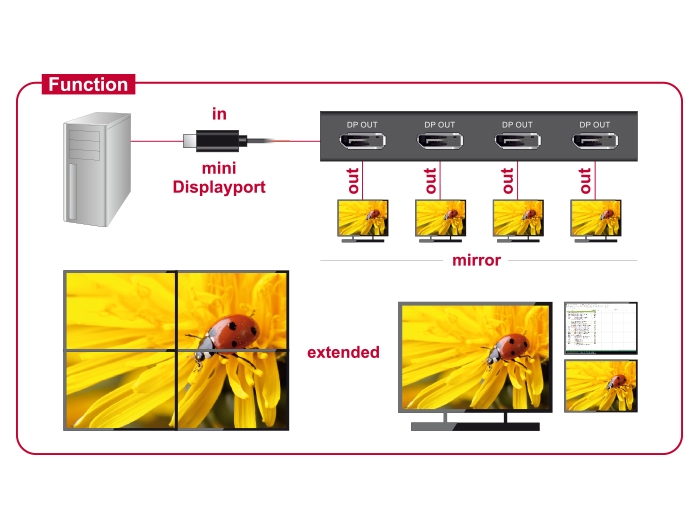

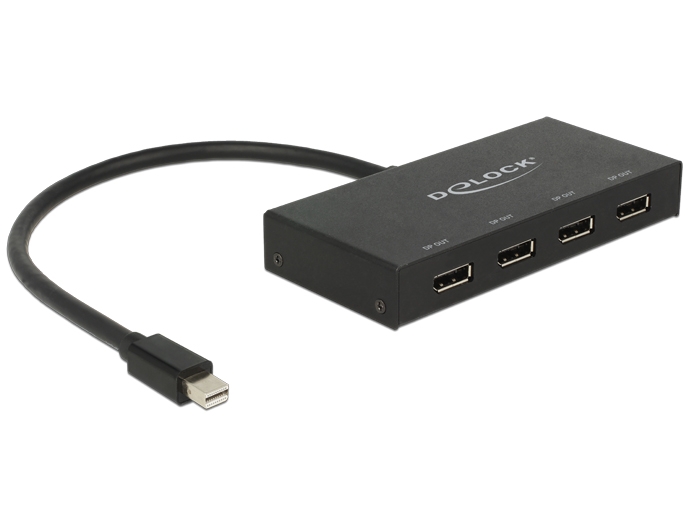

This splitter by Delock receives a Displayport signal from a PC or laptop and splits it to four connected displays. Thereby one Displayport connection can be used to operate four Displayport monitors. The outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters.
System requirements:
• One free mini Displayport female
Specification:
• Connectors:
  Input:
  1 x mini Displayport 20 pin male
  1 x 5 V DC jack
  Output:
  4 x Displayport 20 pin female
• Chipset: STDP4320
• Displayport 1.2a specification
• Active converter, Single / Multi Stream Transport Hub (SST / MST)
• Maximum resolution (depending on the system and the connected hardware):
  Displayport 1.1 or 1.2 Single Stream Transport (SST):
  up to 1920 x 1080 @ 60 Hz (mirror)
  Displayport 1.2 Multi Stream Transport (MST):
  up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz (mirror or extended)
  max. 4x 1920 x 1080 @ 60 Hz
• Displayport output supports Dual Mode DP++
• Supports audio and video signals
• Supports Eyefinity / Single Large Surface (SLS)
• Audio input formats: 7.1 channel up to 192 kHz sample rate
• Metal housing
• Cable length without connectors: ca. 30 cm
• Colour: black
• Dimensions (LxWxH): ca. 143 x 67 x 23 mm
• OS independent, no driver installation necessary
Package content:
• Displayport Splitter

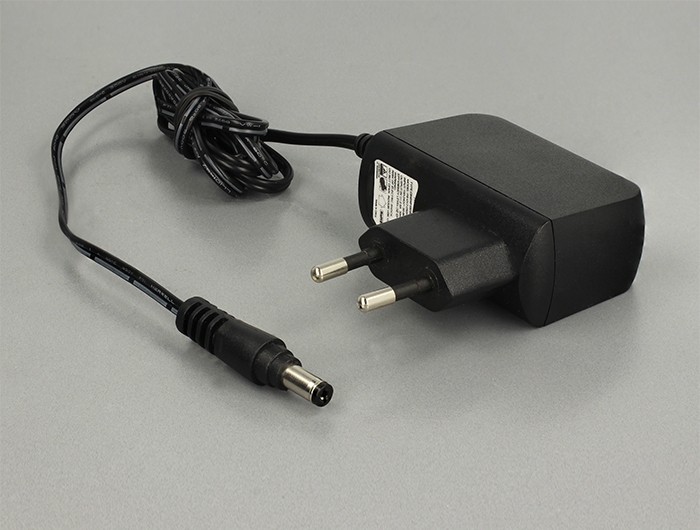

• External power supply
• User manual
Data sheet:
http://www.delock.de/produkt/87693/pdf.html?sprache=en
